HC-2100 - Echo Hedge Trimmer Gear Case, Blades, Handle Parts Diagram

Hedge Trimmer

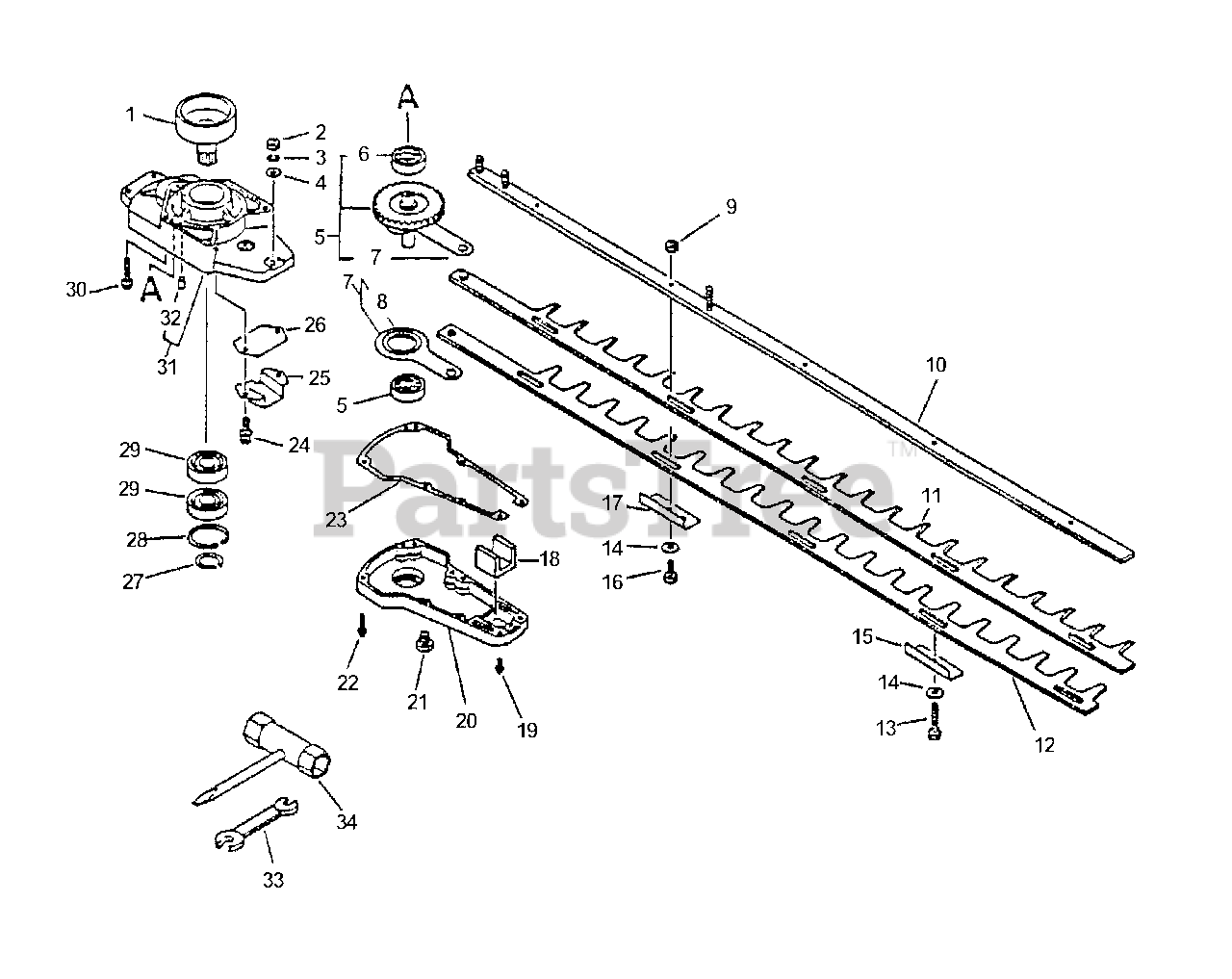

Gear Case, Blades, Handle Parts Diagram

  • Title
1

Echo 17500301261

DRUM, CLUTCH

Note: Includes ITEM 26

$82.99

$

Usually ships in 2-4 days

0

2

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

3

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

4

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

5

Echo 61030201260

GEAR ASSY
(Superseded to 61030201261)

Note: INCLUDES ITEMS (1) 6 & (1) 7

$

$

Not available

6

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

7

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

Note: Includes ITEM 8

$

$

Not available

8

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$19.99

$

In Stock, Qty 12

0

9

$1.49

$

In Stock, Qty 20+

0

10

Echo 69910502061

SUPPORT, BLADE
(Superseded to X425000100)

$38.99

$

Usually ships in 2-4 days

0

11

Echo 69701002060

BLADE - UPPER
(Superseded to 69701002960)

$59.99

$

Usually ships in 2-4 days

0

12

Echo 69701102060

BLADE - LOWER
(Superseded to 69701102960)

$61.99

$

In Stock, only 1 left!

0

$6.49

$

In Stock, only 3 left!

0

14

$0.99

$

In Stock, Qty 12

0

15

Echo 69921302062

INSULATOR
(Superseded to 69921302063)

$4.99

$

In Stock, only 2 left!

0

16

Echo 69911504160

BOLT
(Superseded to 69911502062)

$4.99

$

Usually ships in 2-4 days

0

17

Echo 69921304160

INSULATOR

$4.99

$

In Stock, Qty 18

0

18

Echo 61042601260

SEAL, FELT

$2.99

$

In Stock, only 1 left!

0

19

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

20

Echo 61041102060

LID, GEAR CASE
(Superseded to 61041102061)

$

$

Not available

21

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

22

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

23

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

24

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

25

Echo 61044102060

GUIDE
(Superseded to Discontinued)

$

$

Not available

26

Echo 61044001260

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

27

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

28

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

29

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

30

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

31

Echo 61041002060

CASE, GEAR
(Superseded to 61040602060)

Note: INCLUDES ITEM 32

$130.99

$

Usually ships in 2-4 days

0

32

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

33

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

34

Echo 89541000431

T-WRENCH - 14X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0
