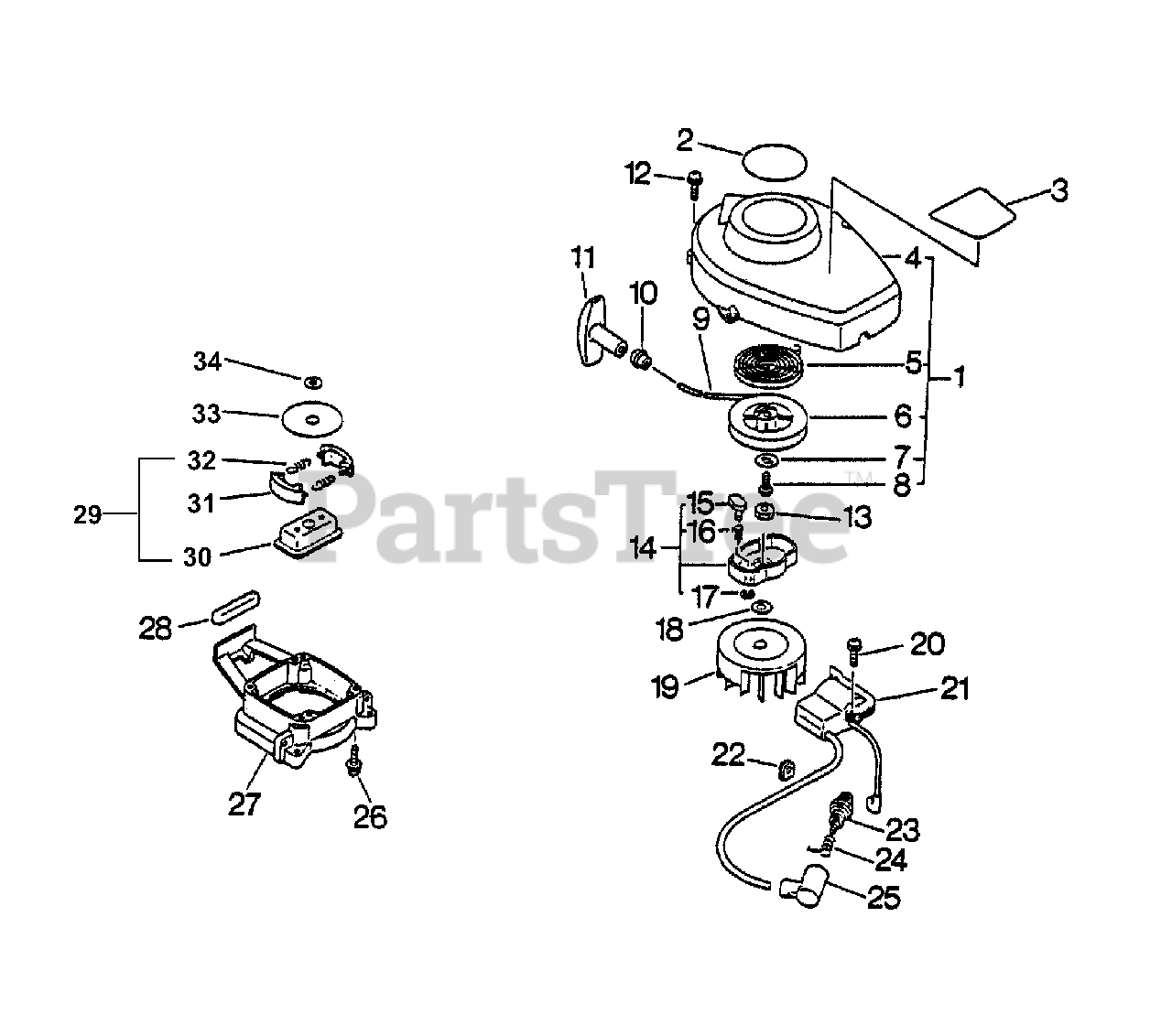

HC-2100 - Echo Hedge Trimmer Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer

Clutch, Ignition, Starter Parts Diagram

  • Title
1

Echo 17720105960

STARTER ASSY
(Superseded to 17720005960)

Note: INCLUDES ITEMS 2- 11

$79.99

$

Usually ships in 2-4 days

0

2

Echo 89011849130

LABEL - ECHO
(Superseded to X502000190)

$0.99

$

In Stock, Qty 20+

0

3

Echo 89011205960

LABEL - MODEL HC-2100

$2.49

$

Usually ships in 2-4 days

0

4

Echo 17723205960

CASE, STARTER
(Superseded to 17723205961)

$46.99

$

Usually ships in 2-4 days

0

5

Echo 17722044330

SPRING, REWIND
(Superseded to 17722042030)

$9.99

$

In Stock, Qty 6

0

6

Echo 17721505960

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

$3.99

$

In Stock, Qty 14

0

9

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, Qty 5

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

11

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

12

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

13

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

14

Echo 17720205960

STARTER PAWL ASSY
(Superseded to 17720207360)

Note: Includes ITEMS 15-17

$13.99

$

In Stock, only 1 left!

0

15

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

16

Echo 17723405960

SPRING, RETURN
(Superseded to P022007980)

$3.99

$

In Stock, Qty 6

0

17

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

18

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

19

Echo 15680144730

FLYWHEEL
(Superseded to 15680144731)

$105.99

$

Usually ships in 2-4 days

0

20

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

21

Echo 15660144730

COIL, IGNITION
(Superseded to 15660144731)

$

$

Not available

22

$0.99

$

In Stock, Qty 6

0

23

Echo 15901010630

SPARK PLUG -- BPM-7A
(Superseded to 15901010230)

$3.49

$

In Stock, Qty 20+

0

23

Echo 15901710230

SPARK PLUG -- RCJ-7Y

$4.99

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

25

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

26

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

27

Echo 61022305960

CASE, CLUTCH

$58.99

$

Usually ships in 2-4 days

0

28

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

29

Echo 17500002961

CLUTCH ASSY
(Superseded to 17500002962)

Note: INCLUDES ITEMS 30 - 32

$62.99

$

Usually ships in 2-4 days

0

30

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

31

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

32

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

33

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

34

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 8

0
