HC-2020 - Echo Hedge Trimmer (SN: U32926001001 - U32926999999) Fuel System Parts Diagram

Hedge Trimmer

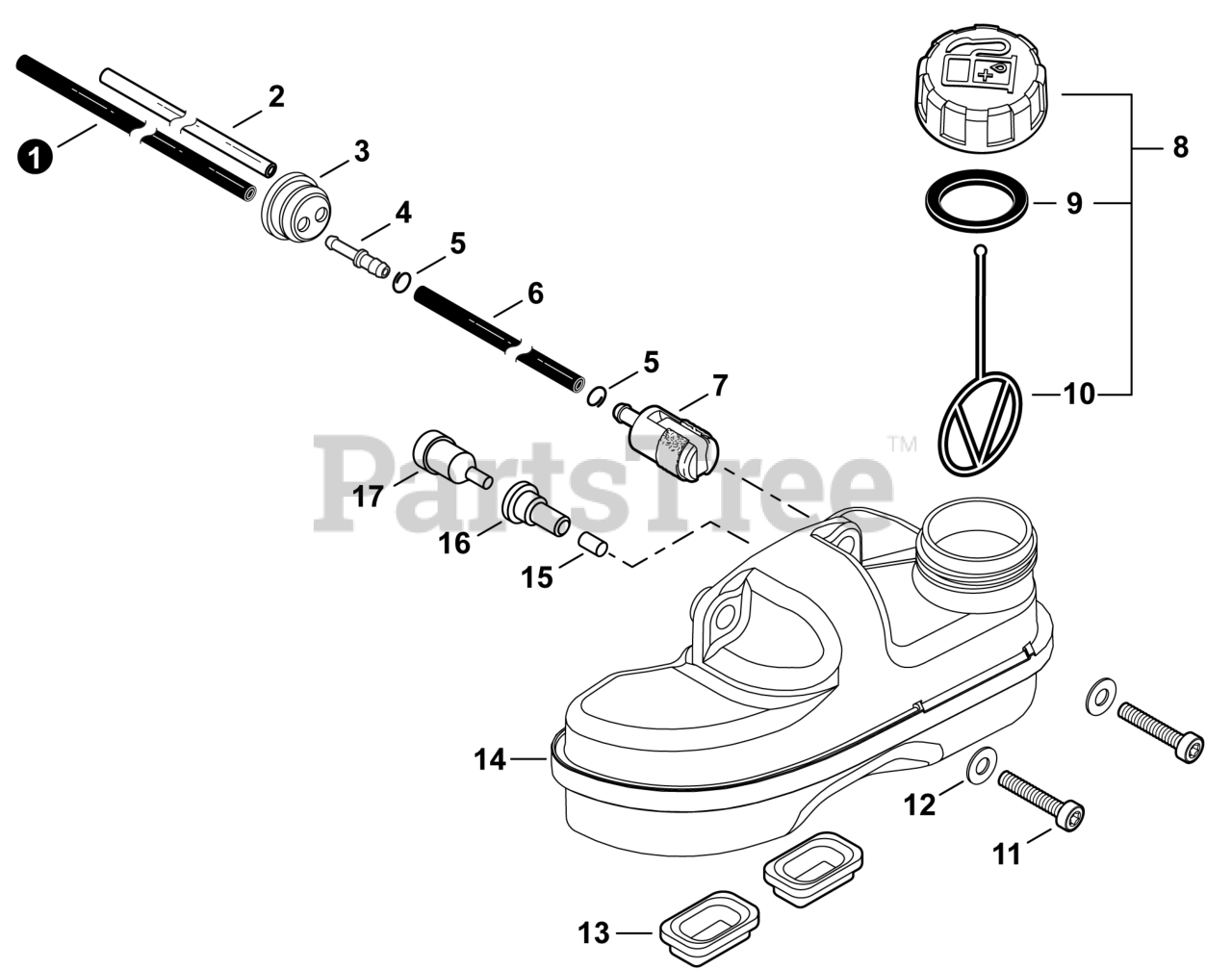

Fuel System Parts Diagram

  • Title

1

Echo V471005670

PIPE, FUEL 3×5.5×91 BLACK

$3.99

$

Usually ships in 2-4 days

0

2

Echo 13201056330

PIPE, FUEL RETURN 3×6×90 MM CLEAR

$2.99

$

In Stock, Qty 20+

0

3

Echo 13211544331

GROMMET, FUEL

$1.99

$

In Stock, Qty 20+

0

4

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

5

Echo V490001240

CLIP Ø6

$0.99

$

Usually ships in 2-4 days

0

6

Echo V471003661

PIPE, FUEL 3×5×115 BLACK

$1.49

$

Usually ships in 2-4 days

0

7

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

8

Echo P100006051

FUEL CAP ASSY, HC-2020

Note: Includes items 9-10

$7.49

$

In Stock, only 1 left!

0

9

Echo V107000190

GASKET, FUEL CAP

$1.49

$

In Stock, Qty 20+

0

10

Echo A365000050

FUEL CAP CONNECTOR (L=60MM)

$2.49

$

In Stock, Qty 20+

0

11

Echo V805000160

BOLT, TORX 5×20

$0.99

$

In Stock, Qty 20+

0

12

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

13

Echo V420004490

CUSHION

$0.99

$

In Stock, Qty 11

0

14

Echo A350002520

TANK, FUEL
(Superseded to A350002521)

$33.99

$

Usually ships in 2-4 days

0

15

Echo 13131435430

FILTER, VENT

$1.49

$

In Stock, Qty 8

0

16

Echo V137000150

GROMMET, FUEL

$1.49

$

Usually ships in 2-4 days

0

17

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0
