HC-2020 - Echo Hedge Trimmer (SN: U32926001001 - U32926999999) Carburetor Parts Diagram

Hedge Trimmer

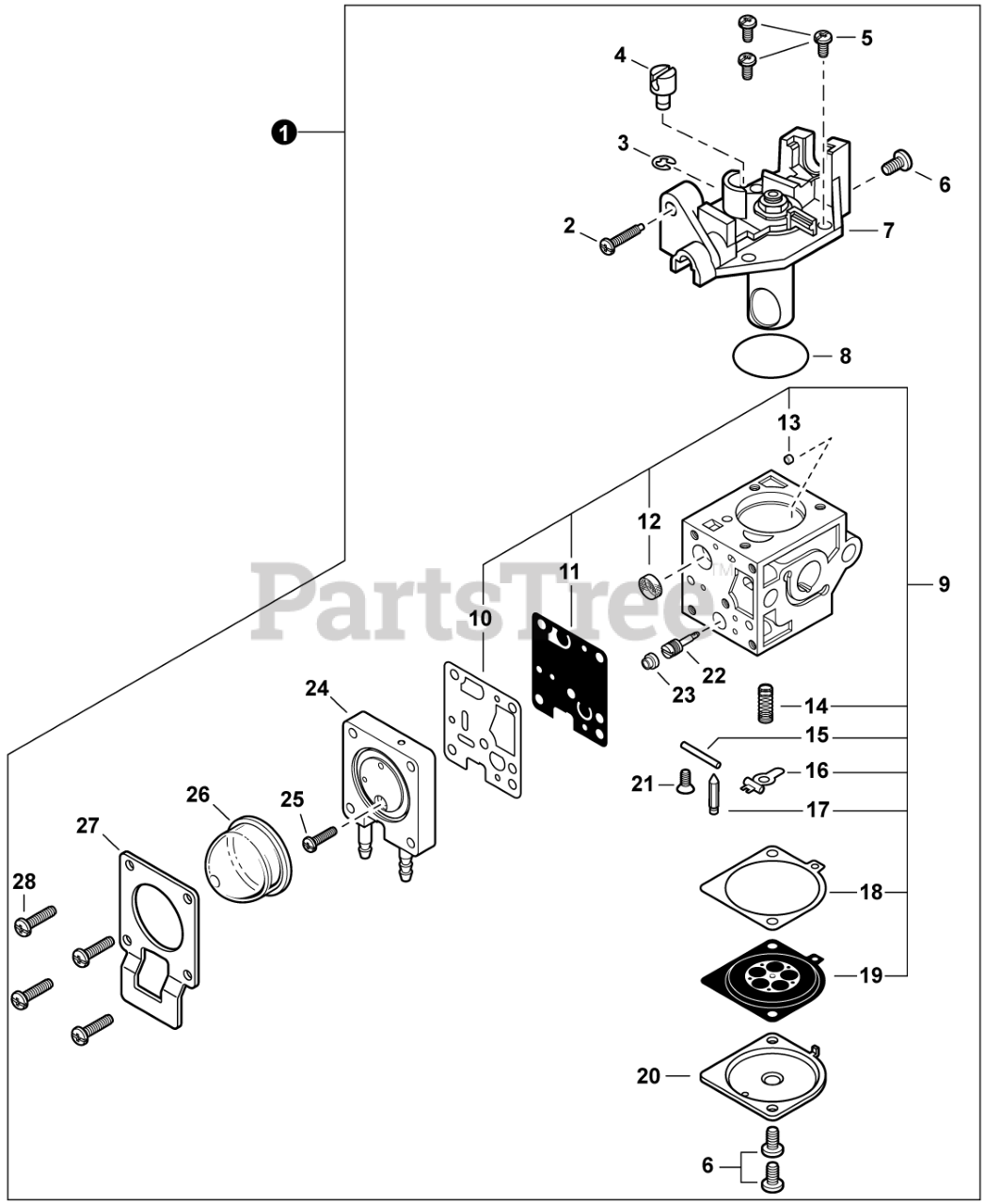

Carburetor Parts Diagram

  • Title

1

Echo A021005290

CARBURETOR - Z011/0CA

Note: Includes items 2-28

$108.99

$

In Stock, only 1 left!

0

2

Echo P005000100

SCREW, IDLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

3

Echo P005000190

E-RING

$0.99

$

In Stock, Qty 7

0

4

Echo P005002200

SWIVEL

$4.99

$

Usually ships in 2-4 days

0

5

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

6

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

7

Echo P005002160

COVER ASSY, ROTOR

$29.99

$

Usually ships in 2-4 days

0

8

Echo P005004260

O-RING

$6.99

$

Usually ships in 2-4 days

0

9

Echo P005003750

REPAIR KIT, CARBURETOR

Note: Includes items 10-19

$16.99

$

In Stock, only 4 left!

0

10

Echo P005000520

GASKET, PUMP

$2.99

$

Usually ships in 2-4 days

0

11

Echo P005000510

DIAPHRAGM, PUMP

$4.49

$

Usually ships in 2-4 days

0

12

Echo P005000010

SCREEN, FUEL INLET

$0.99

$

Usually ships in 2-4 days

0

13

Echo P005001000

GUIDE, ROLLER

$1.99

$

In Stock, Qty 5

0

14

Echo P005000940

SPRING, METERING LEVER

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12533813930

PIN, METERING LEVER

$2.99

$

Usually ships in 2-4 days

0

16

Echo 12532308260

LEVER, METERING

$6.49

$

Usually ships in 2-4 days

0

17

Echo 12533708260

VALVE, INLET NEEDLE

$16.99

$

Usually ships in 2-4 days

0

18

Echo P005000200

GASKET, METERING DIAPHRAGM

$2.99

$

In Stock, only 2 left!

0

19

Echo P005003760

DIAPHRAGM, METERING

$18.99

$

Usually ships in 2-4 days

0

20

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

21

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0

22

Echo P005001260

NEEDLE, HIGH SPEED

$5.99

$

In Stock, only 1 left!

0

23

Echo P005001250

CAP, LIMITER

$1.49

$

Usually ships in 2-4 days

0

24

Echo P005004240

BODY ASSY, PURGE

$29.99

$

Usually ships in 2-4 days

0

25

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

26

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 12

0

27

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

28

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0
