HC-201 - Echo Hedge Trimmer (SN: 09001001 - 09999999) Blades, Gear Case, Tools Parts Diagram

Hedge Trimmer

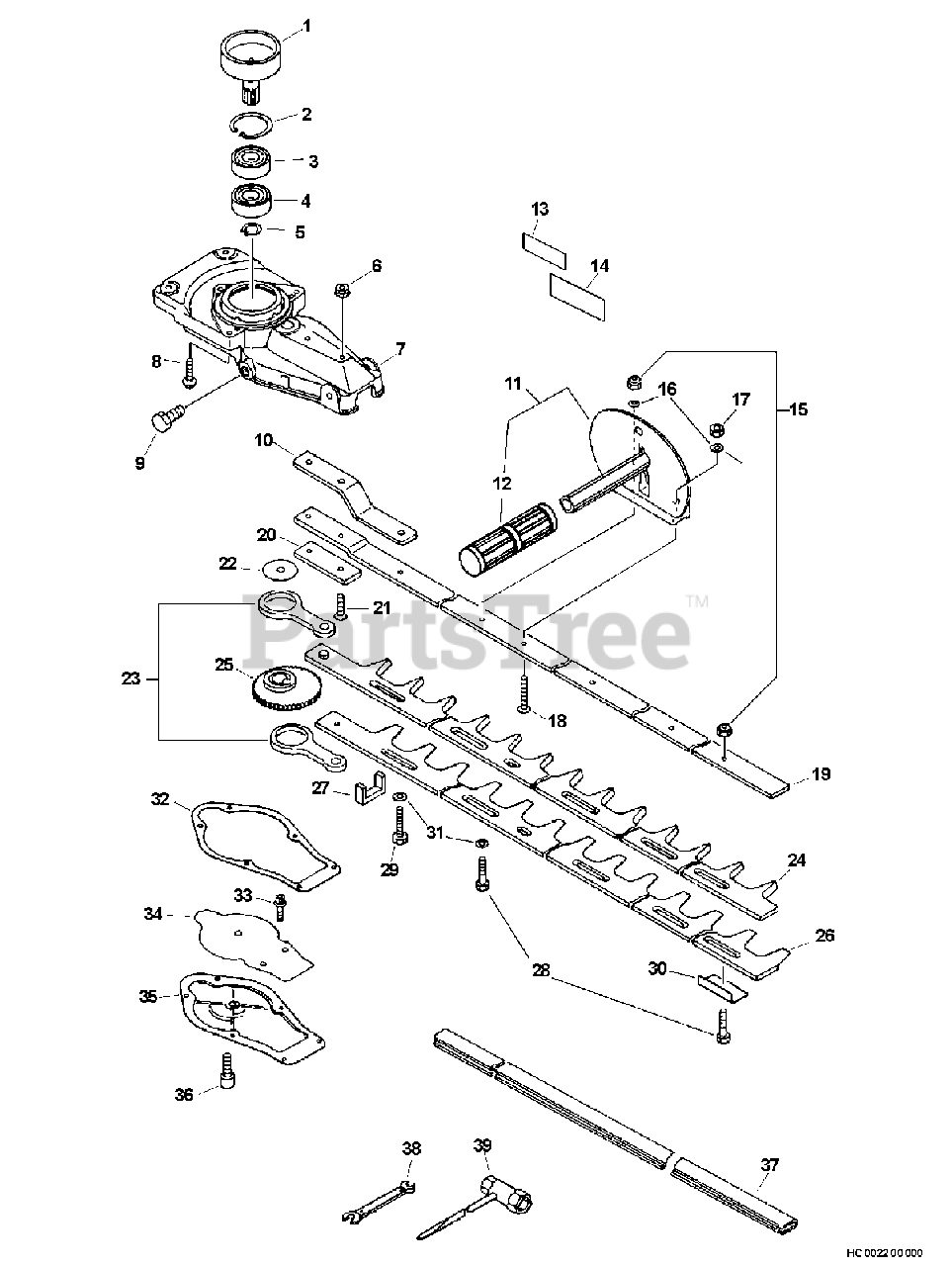

Blades, Gear Case, Tools Parts Diagram

  • Title

1

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

0

2

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

3

Echo 90081336202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

0

4

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

5

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, Qty 5

0

6

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 61040707760

CASE, GEAR - UPPER

$139.99

$

Usually ships in 2-4 days

0

8

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

10

Echo 69912006560

PLATE, ANGLE

$4.99

$

Usually ships in 2-4 days

0

11

Echo 35120002060

HANDLE ASSY - FRONT

Note: Includes ITEM 12

$54.99

$

Usually ships in 2-4 days

0

12

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

13

Echo X505000280

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

14

Echo X505000270

LABEL - CAUTION
(Superseded to X505000271)

$3.99

$

Usually ships in 2-4 days

0

15

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

16

Echo 30021700610

WASHER

$0.99

$

In Stock, Qty 14

0

17

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

18

Echo 90021206030

SCREW - 6X30

$1.49

$

In Stock, Qty 20+

0

19

Echo X425000040

SUPPORT, BLADE
(Superseded to X425000250)

$31.99

$

Usually ships in 2-4 days

0

20

Echo 69911807760

PLATE

$3.49

$

Usually ships in 2-4 days

0

21

Echo 90021206025

SCREW - 6X25

$0.99

$

In Stock, Qty 12

0

22

Echo 61035004560

WASHER

$1.49

$

In Stock, only 4 left!

0

23

Echo 61033004561

ROD, CONNECTING
(Superseded to C532000120)

$23.99

$

In Stock, only 2 left!

0

24

Echo X411000060

BLADE - UPPER
(Superseded to X411000360)

$37.99

$

Usually ships in 2-4 days

0

25

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 2 left!

0

26

Echo X411000070

BLADE - LOWER
(Superseded to X411000370)

$37.99

$

Usually ships in 2-4 days

0

27

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

28

Echo 69911507760

BOLT - 6X22

$3.49

$

In Stock, Qty 12

0

29

Echo 69911505360

BOLT - 6X35

$2.49

$

Usually ships in 2-4 days

0

30

Echo 69921304160

INSULATOR

$4.99

$

In Stock, Qty 18

0

31

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

32

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 18

0

33

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

34

Echo 61044707760

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

35

Echo 61041107760

LID, GEAR CASE - LOWER

$78.99

$

Usually ships in 2-4 days

0

36

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0

37

Echo 89852302961

COVER, BLADE

$20.99

$

Usually ships in 2-4 days

0

38

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

39

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 7

0
