HC-2000 - Echo Hedge Trimmer (Type 1) Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

Hedge Trimmer (Type 1)

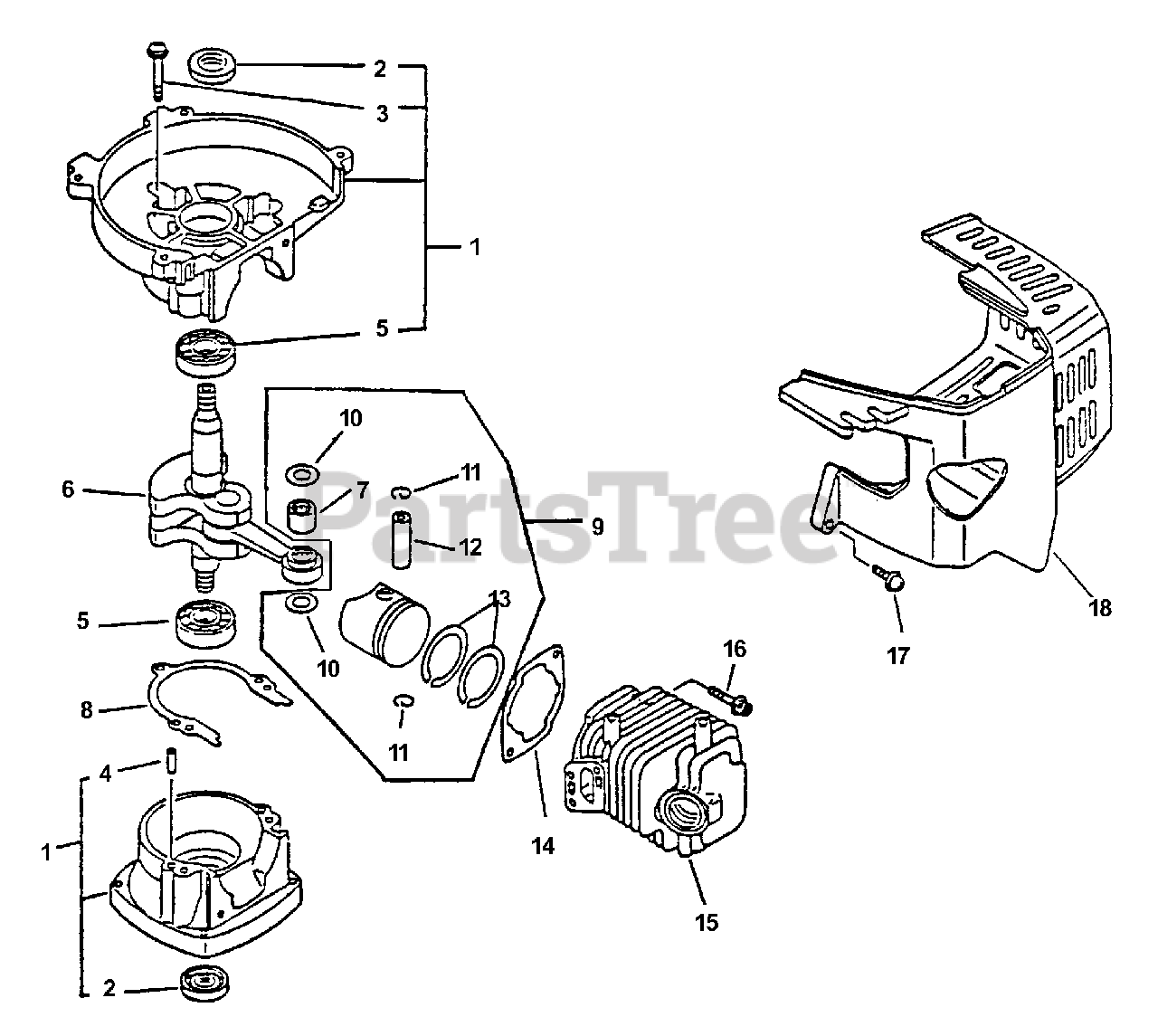

Crankcase, Engine, Engine Cover, Fan Case Parts Diagram

  • Title

1

------------------

CRANKCASE KIT

Note: USE SB1032

$

$

Not available

2

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

3

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

4

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

5

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

6

------------------

CRANKSHAFT ASSY

Note: USE SB1032

$

$

Not available

7

Echo 10001251230

BEARING, NEEDLE
(Superseded to V553000010)

Note: S/N 001001 - 037263

$9.99

$

In Stock, only 2 left!

0

7

Echo 10011305930

BEARING, NEEDLE - 8

Note: S/N 037264 & UP

$11.99

$

Usually ships in 2-4 days

0

8

------------------

GASKET, CRANKCASE

Note: INCLUDED IN KIT 88900006560

$

$

Not available

9

Echo 10000044330

PISTON KIT
(Superseded to 10000044331)

Note: S/N 001001 - 015999; INCLUDES ITEMS 10 - 13

$65.99

$

Usually ships in 2-4 days

0

9

Echo 10000011520

PISTON KIT
(Superseded to 10000011521)

Note: S/N 016000 & UP; INCLUDES ITEMS 10 - 13

$77.99

$

In Stock, only 1 left!

0

10

Echo 10001411520

SPACER, PISTON

Note: S/N 001001 - 037263

$3.49

$

In Stock, only 3 left!

0

10

Echo 10001408960

WASHER

Note: S/N 037264 & UP

$3.49

$

Usually ships in 2-4 days

0

11

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

12

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

13

Echo 10001105330

RING, PISTON

Note: (S/N 001001 - 015999 QTY 1)

$8.49

$

In Stock, only 3 left!

0

14

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT 88900006560

$3.99

$

In Stock, Qty 6

0

15

Echo 10101145230

CYLINDER

Note: S/N 001001 - 037263

$127.99

$

Usually ships in 2-4 days

0

15

Echo 10101106562

CYLINDER

Note: S/N 037264 & UP

$109.99

$

Usually ships in 2-4 days

0

16

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

17

Echo 90023804022

SCREW - 4X22

$0.99

$

In Stock, Qty 5

0

18

Echo 10151408960

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

Echo SB1032

SHORT BLOCK -- SB1032
(Superseded to Discontinued)

$

$

Not available

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: INCLUDES THE FOLLOWING ITEMS

$12.99

$

Usually ships in 2-4 days

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 6

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 19

0
