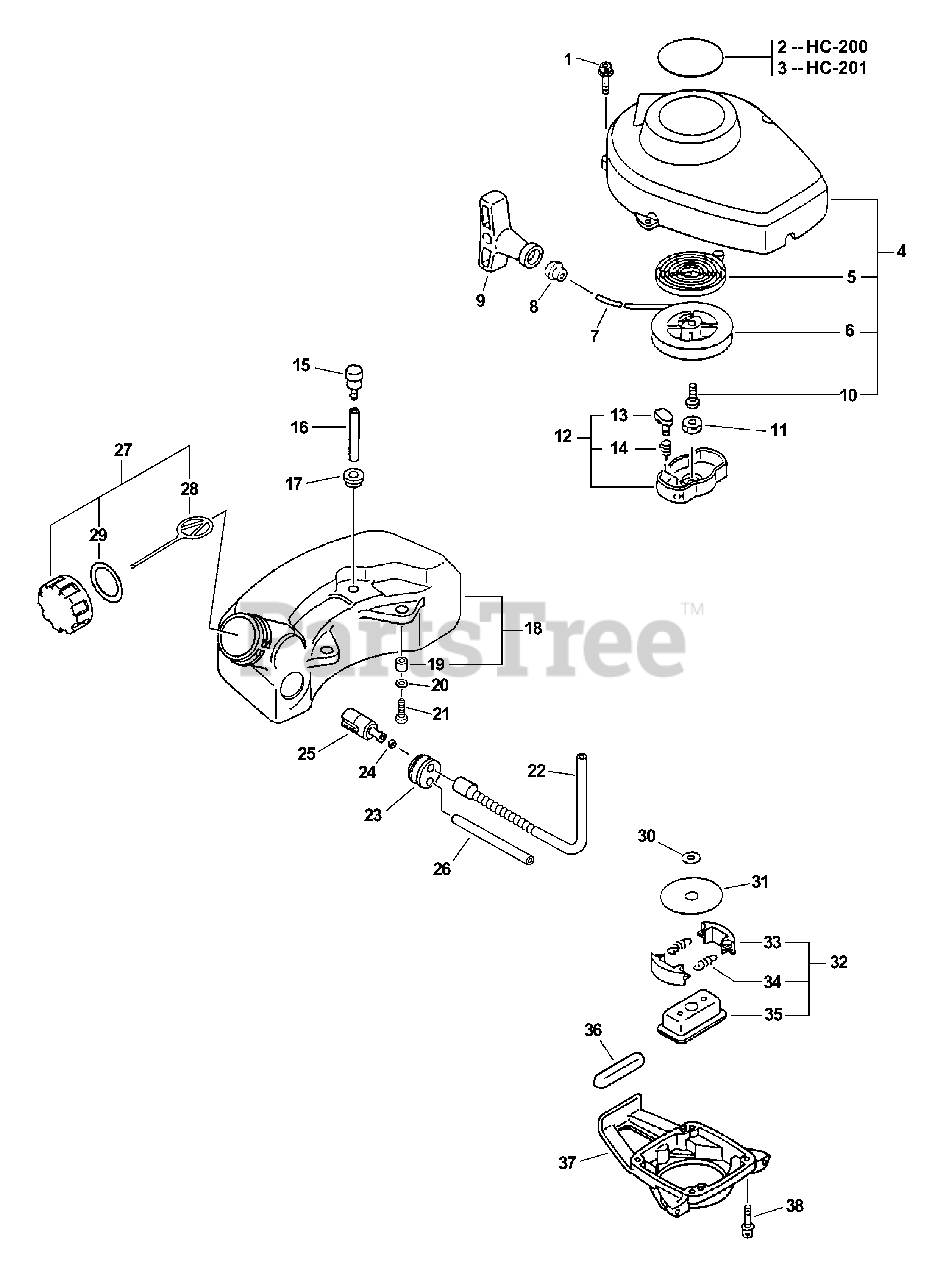

HC-200 - Echo Hedge Trimmer (SN: 10001001 - 10999999) Starter, Fuel System, Clutch Parts Diagram

Hedge Trimmer

Starter, Fuel System, Clutch Parts Diagram

  • Title

1

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

2

Echo X503003700

LABEL - MODEL HC-200
(Superseded to Discontinued)

$

$

Not available

3

Echo X503000760

LABEL - MODEL HC-201

$3.49

$

Usually ships in 2-4 days

0

4

Echo 17720005962

STARTER ASSY

Note: INCLUDES ITEMS 5-10

$79.99

$

Usually ships in 2-4 days

0

5

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 13

0

6

Echo 17721505960

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

7

Echo 17722605960

ROPE, STARTER - 3.5X1000

Note: RePower BULK OPTION: 99944445000

$6.49

$

Usually ships in 2-4 days

0

8

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 15

0

9

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

10

Echo 17723644330

SCREW

$3.49

$

In Stock, only 2 left!

0

11

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

12

Echo 17720207361

STARTER PAWL ASSY

Note: Includes ITEMS 13-14

$13.99

$

In Stock, only 1 left!

0

13

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

14

Echo 17723405960

SPRING, RETURN
(Superseded to P022007980)

$3.99

$

In Stock, Qty 6

0

15

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

16

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 15

0

17

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 11

0

18

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

Note: Includes ITEM 19

$

$

Not available

19

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

20

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

21

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

22

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, Qty 5

0

23

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

24

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

25

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

26

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 19

0

27

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEMS 28-29

$6.49

$

In Stock, Qty 6

0

28

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

29

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

30

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

31

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

32

Echo 17500002962

CLUTCH ASSY

Note: INCLUDES ITEMS 33-35

$62.99

$

Usually ships in 2-4 days

0

33

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

34

Echo 17501805960

SPRING, CLUTCH

$1.99

$

In Stock, Qty 5

0

35

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

36

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

37

Echo 17505506960

CASE, CLUTCH

$46.99

$

In Stock, only 1 left!

0

38

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0
