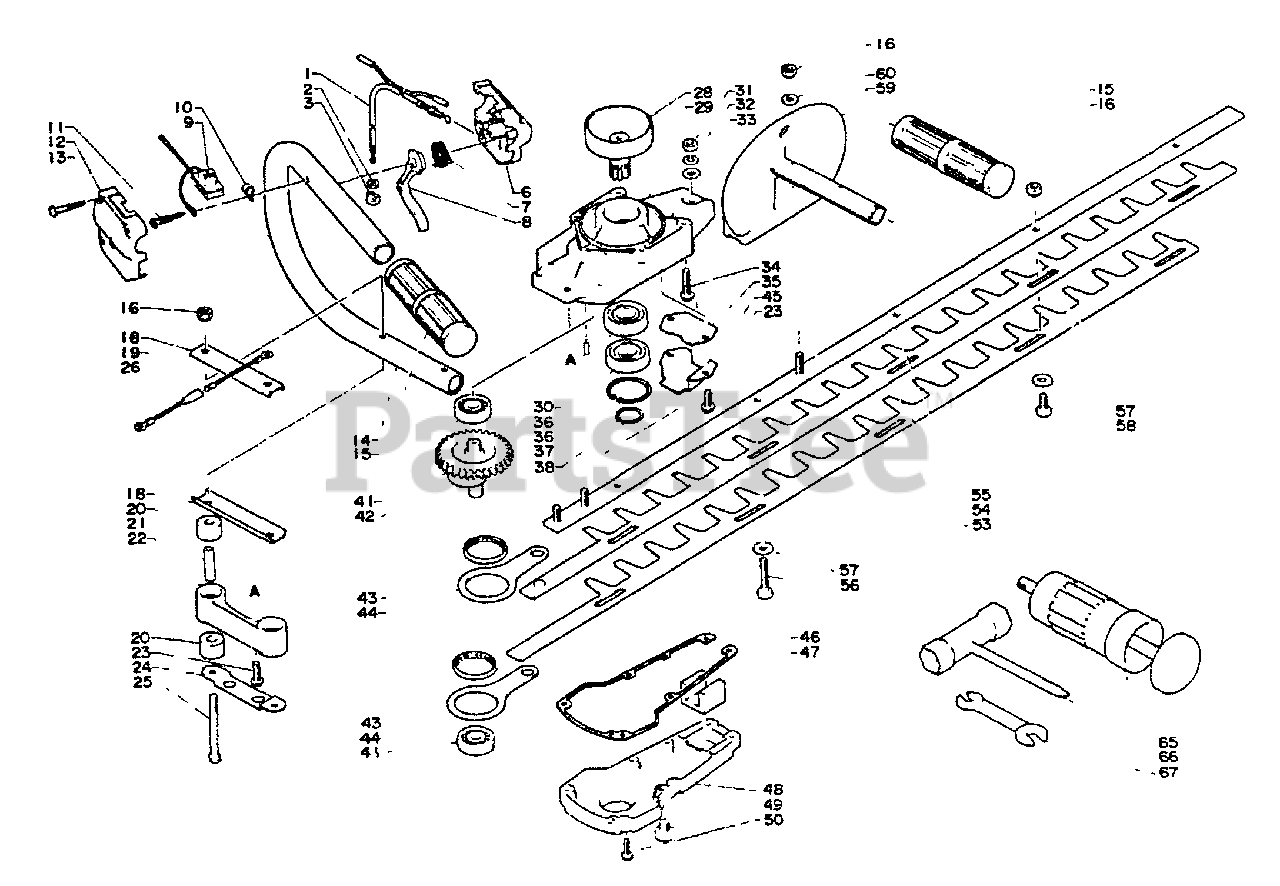

HC-200 - Echo Hedge Trimmer (Original Version) Gear Case, Handles, Blades, Throttle, Stop Switch, Tools Parts Diagram

Hedge Trimmer

Gear Case, Handles, Blades, Throttle, Stop Switch, Tools Parts Diagram

  • Title

1

Echo 17800101260

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

3

Echo 17802107330

LOCKNUT

$2.99

$

Usually ships in 2-4 days

0

6

Echo 17802401260

BRACKET, THROTTLE CONTROL - RIGHT
(Superseded to 17802401261)

$3.99

$

In Stock, only 1 left!

0

7

Echo 17804301260

SPRING, TRIGGER

$0.99

$

In Stock, only 3 left!

0

8

Echo 17801001260

TRIGGER, THROTTLE
(Superseded to 17801007660)

$4.49

$

In Stock, only 1 left!

0

9

Echo 16340007930

IGNITION SWITCH ASSY

$7.99

$

Usually ships in 2-4 days

0

10

Echo 15911301260

HOLDER
(Superseded to Discontinued)

$

$

Not available

11

Echo 90024704008

SCREW - 4X8
(Superseded to Discontinued)

$

$

Not available

12

Echo 17805201260

BRACKET, THROTTLE CONTROL - LEFT
(Superseded to 17805201261)

$3.99

$

In Stock, only 1 left!

0

13

Echo 90024504025

SCREW - 4X25

$0.99

$

In Stock, only 1 left!

0

14

Echo 35120501260

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

15

Echo 35101201260

GRIP, HANDLE

$8.99

$

Usually ships in 2-4 days

0

16

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

18

Echo 35124301260

BRACKET, HANDLE - LOWER

$2.99

$

Usually ships in 2-4 days

0

19

Echo 16201001260

LEAD - GROUND

$2.49

$

Usually ships in 2-4 days

0

20

Echo 35122801260

CUSHION

$4.49

$

Usually ships in 2-4 days

0

21

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 18

0

22

Echo 35121701260

BRACKET, HANDLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

24

Echo 35124201260

PLATE
(Superseded to 35124201261)

$2.99

$

Usually ships in 2-4 days

0

25

Echo 90010505060

SCREW - 5X60

$2.49

$

In Stock, Qty 17

0

26

Echo 16201401260

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

28

Echo 17500501260

DRUM, CLUTCH
(Superseded to 17500301261)

$82.99

$

Usually ships in 2-4 days

0

29

Echo 61041001260

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

30

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

31

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

32

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

33

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

34

Echo 90024245020

SCREW - 5X20

$

$

Currently unavailable

35

Echo 61044001260

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

36

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

37

Echo 90070200032

RING, RETAINING - 32

$1.99

$

In Stock, Qty 13

0

38

Echo 90070100017

RING, RETAINING - 17

$1.49

$

Usually ships in 2-4 days

0

41

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

42

Echo 61030801260

GEAR
(Superseded to 61030201260)

$

$

Not available

43

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$19.99

$

In Stock, Qty 12

0

44

Echo 61033001260

ROD, CONNECTING
(Superseded to 61030701260)

$

$

Not available

45

Echo 61044101260

GUIDE
(Superseded to Discontinued)

$

$

Not available

46

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

47

Echo 61042601260

SEAL, FELT

$2.99

$

In Stock, only 1 left!

0

48

Echo 61041101260

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

49

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

50

Echo 90024204016

SCREW - 4X16

$0.99

$

In Stock, Qty 20+

0

53

Echo 69700001260

TRIMMER BLADE SET
(Superseded to Discontinued)

$

$

Not available

54

Echo 69700001260

TRIMMER BLADE SET
(Superseded to Discontinued)

$

$

Not available

55

Echo 69910501260

SUPPORT, BLADE
(Superseded to 69910002060)

$

$

Not available

56

Echo 35102701260

BOLT
(Superseded to 35102701262)

$

$

Not available

57

Echo 69911801260

WASHER
(Superseded to 69911801261)

$0.99

$

In Stock, Qty 12

0

58

Echo 69911501260

BOLT
(Superseded to Discontinued)

$

$

Not available

59

Echo 35101001260

HANDLE - FRONT
(Superseded to 35101002060)

$46.99

$

Usually ships in 2-4 days

0

60

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

65

Echo 88030001260

PUMP, GREASE
(Superseded to Discontinued)

$

$

Not available

66

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

67

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0
