HC-200 - Echo Hedge Trimmer (Original Version) Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

Hedge Trimmer

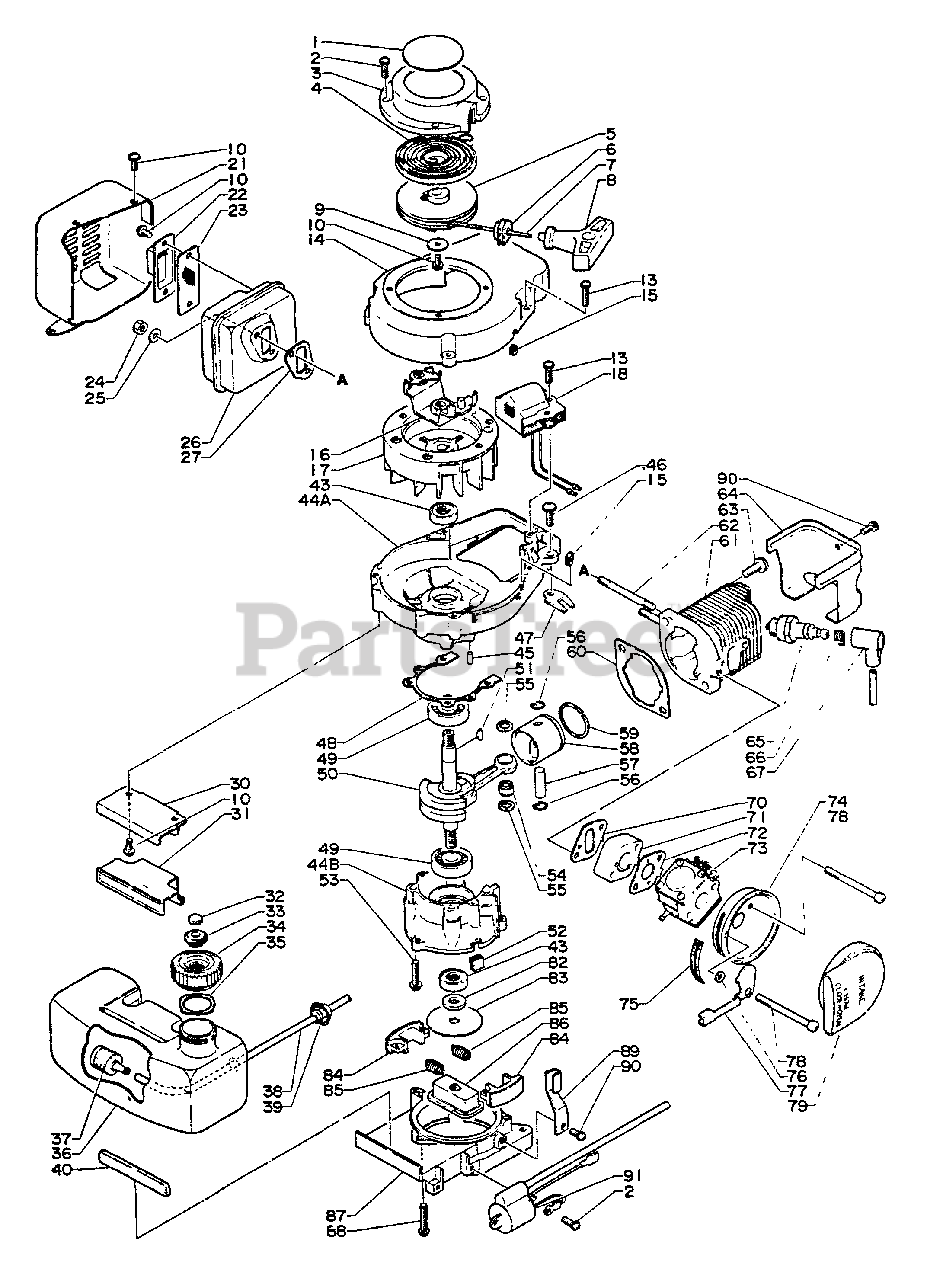

Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

  • Title

1

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 10

0

2

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

Echo 17720001260

STARTER ASSY
(Superseded to 17720001261)

$

$

Not available

3

Echo 17720901260

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 10

0

5

Echo 17721506530

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

6

Echo 17722701260

GUIDE, ROPE

$3.99

$

Usually ships in 2-4 days

0

7

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 17

0

8

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 17

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 17

0

13

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

14

Echo 10151101260

CASE, FAN
(Superseded to Discontinued)

$

$

Not available

15

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

16

Echo 17730501260

STARTER PAWL ASSY
(Superseded to 17730501261)

$

$

Not available

17

Echo 15680001260

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

18

Echo 15660101260

COIL, IGNITION
(Superseded to 15660101261)

$

$

Not available

Echo 14580301260

MUFFLER ASSY
(Superseded to 14580301261)

$41.99

$

Usually ships in 2-4 days

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 17

0

21

Echo 14562101260

COVER, EXHAUST
(Superseded to Discontinued)

$

$

Not available

21

Echo 14590001260

MUFFLER ASSY
(Superseded to 14590006520)

$

$

Not available

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 17

0

22

Echo 14580906520

GUIDE, EXHAUST
(Superseded to 14580928430)

$

$

Not available

23

Echo 14586206520

SCREEN, SPARK ARRESTOR

$1.99

$

Usually ships in 2-4 days

0

26

Echo 14580606520

MUFFLER
(Superseded to Discontinued)

$

$

Not available

27

Echo 14551006520

GASKET, EXHAUST
(Superseded to 14551009030)

$

$

Not available

24

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

25

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

30

Echo 13191001260

BRACKET, FUEL TANK
(Superseded to Discontinued)

$

$

Not available

31

Echo 13192401260

CUSHION
(Superseded to Discontinued)

$

$

Not available

Echo 13100406320

CAP ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 13131505020

FILTER

$0.99

$

In Stock, Qty 7

0

33

Echo 13131406320

VENT

$5.49

$

In Stock, Qty 6

0

34

Echo 13101707430

CAP
(Superseded to 13100406320)

$

$

Not available

35

Echo 13101604920

GASKET, CAP

$

$

Not available

36

Echo 13101001260

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

37

Echo 13120506530

FILTER, FUEL
(Superseded to 13120507320)

$5.49

$

In Stock, Qty 20+

0

38

Echo 13201004920

PIPE - 3X5X150 -- BLACK
(Superseded to 13201004921)

Note: RePower BULK OPTION: 90014

$1.49

$

Usually ships in 2-4 days

0

39

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

40

Echo 13192001260

CUSHION
(Superseded to Discontinued)

$

$

Not available

43

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

44

Echo 10020001260

CRANKCASE KIT
(Superseded to Discontinued)

$

$

Not available

45

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

46

Echo 90024205014

SCREW - 5X14

$0.99

$

In Stock, Qty 20+

0

47

Echo 17813201260

BRACKET, THROTTLE CABLE
(Superseded to 17813201261)

$2.49

$

Usually ships in 2-4 days

0

48

Echo 10024204920

GASKET, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

49

Echo 90081036200

BEARING, BALL - 6200
(Superseded to Discontinued)

$

$

Not available

50

Echo 10010001260

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

51

Echo 10013106520

KEY

$1.49

$

Usually ships in 2-4 days

0

52

Echo 10022301260

PLUG
(Superseded to Discontinued)

$

$

Not available

53

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

54

Echo 10011305930

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

55

Echo 10001406520

SPACER, PISTON

$3.49

$

Usually ships in 2-4 days

0

56

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

57

Echo 10001310210

PIN, PISTON

$6.99

$

Usually ships in 2-4 days

0

58

Echo 10001006520

PISTON
(Superseded to 10001006521)

$

$

Not available

59

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 1 left!

0

60

Echo 10101004920

GASKET, CYLINDER
(Superseded to 10101004921)

$

$

Not available

61

Echo 10101106520

CYLINDER
(Superseded to 10101109320)

$

$

Not available

62

Echo 10101400560

STUD

$2.49

$

Usually ships in 2-4 days

0

63

Echo 90024206022

SCREW - 6X22
(Superseded to Discontinued)

$

$

Not available

64

Echo 10151406520

COVER, ENGINE

$10.99

$

Usually ships in 2-4 days

0

65

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

66

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 20+

0

67

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

70

Echo 13001006520

GASKET, INTAKE
(Superseded to 13001021630)

$

$

Not available

71

Echo 13001706520

INSULATOR, INTAKE
(Superseded to 13001701260)

$

$

Not available

72

Echo 13001604921

GASKET, INTAKE
(Superseded to 13001604922)

$

$

Not available

73

Echo 12300001260

CARBURETOR
(Superseded to 12300001261)

$112.99

$

In Stock, only 1 left!

0

74

Echo 13030104920

CASE, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

75

Echo 17881004920

GROMMET

$1.49

$

Usually ships in 2-4 days

0

76

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

77

Echo 17851504920

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

78

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

79

Echo 13031004920

FILTER, AIR
(Superseded to 13031004922)

$

$

Not available

82

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

83

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

84

Echo 17500905130

SHOE, CLUTCH
(Superseded to 17500905131)

$21.99

$

In Stock, only 2 left!

0

85

Echo 17501805130

SPRING, CLUTCH

$1.99

$

In Stock, only 2 left!

0

86

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

87

Echo 17505501260

CASE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

88

Echo 90016204025

SCREW - 4X25

$1.49

$

In Stock, Qty 7

0

89

Echo 15911201260

HOLDER
(Superseded to Discontinued)

$

$

Not available

90

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

91

Echo 15662601260

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available
