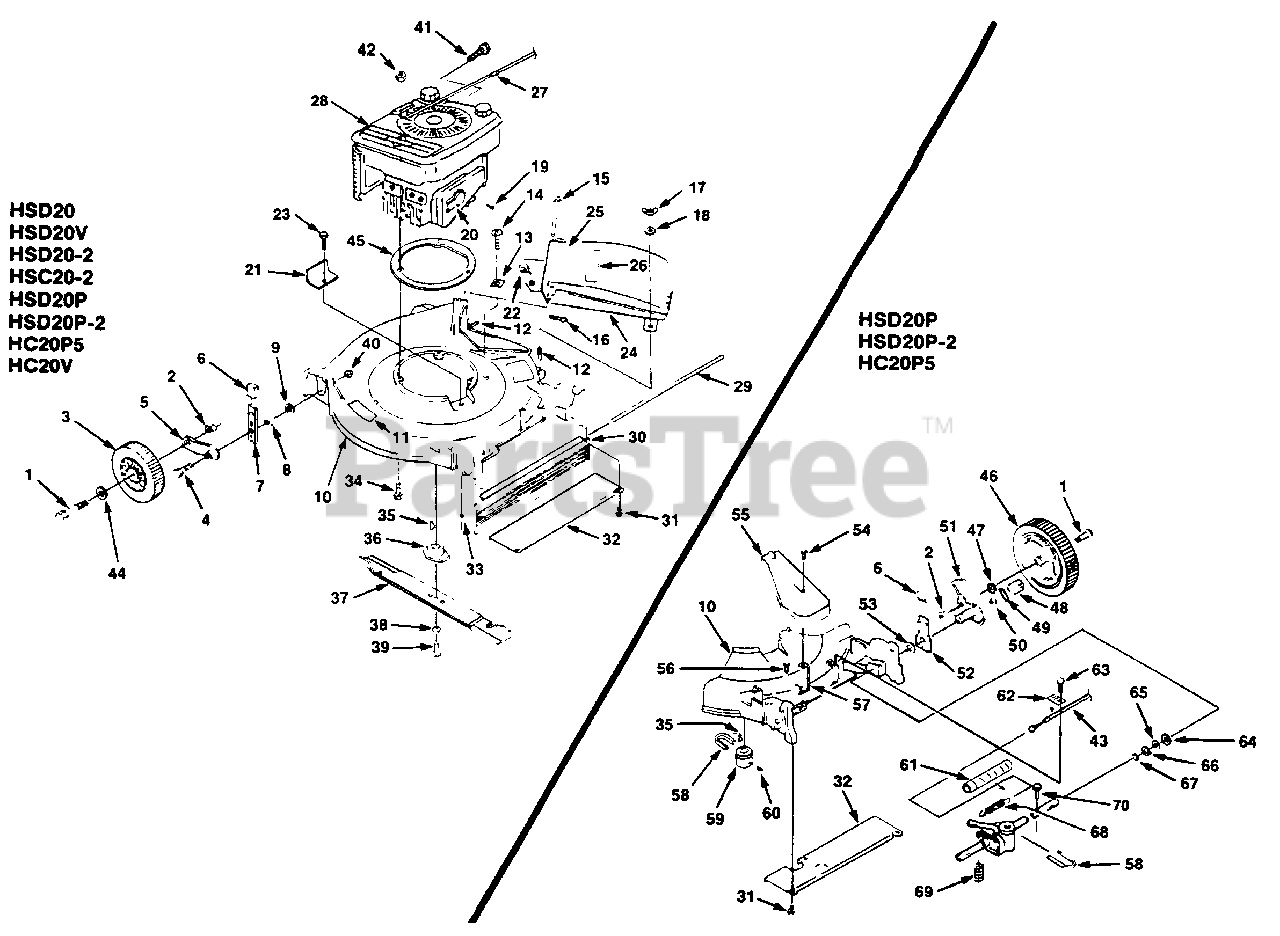

HC 20 P5 (UT-30154) - Homelite 20" Side-Discharge Walk-Behind Mower Mower Parts Diagram

20" Side-Discharge Walk-Behind Mower

Mower Parts Diagram

  • Title

1

Homelite JA992138

BOLT- Axle
(Superseded to UP06685)

$

$

Currently unavailable

2

Homelite JA444850

NUT
(Superseded to JA993711)

$

$

Not available

3

Homelite JA993958

WHEEL & TIRE
(Superseded to UP06670)

$

$

Not available

4

Homelite JA359180

BOLT- Height adj.

$

$

Not available

5

Homelite JA991287

ARM- Wheel adj.
(Superseded to GP031455)

$

$

Currently unavailable

6

Homelite JA336623

KNOB- Indexing spring
(Superseded to UP06697)

$

$

Not available

7

Homelite JA990087

INDEX SPRING & PIN
(Superseded to GP586051)

$38.99

$

Usually ships in 3-7 days

0

8

Homelite JA358362

SPACER- Wheel hgt adj.

$

$

Not available

9

Homelite JA453009

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

10

Homelite JA994807

DECK

$

$

Currently unavailable

11

Homelite JA359102

DECAL- Warning

$

$

Not available

12

Homelite JA992964

STUD

$

$

Not available

13

Homelite JA992981

BRACKET- Rear bagger

$

$

Currently unavailable

14

Homelite JA409907

SCREW- (1/4-20 x 1/2")

$

$

Not available

15

Homelite JA992958

PIN- Hinge

$

$

Currently unavailable

16

Homelite JA460014

PIN- Cotter

$

$

Not available

17

Homelite JA992974

NUT- Wing

$

$

Not available

18

Homelite JA453023

WASHER- Plain (1/4")
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

19

Homelite JA408880

SCREW- (#8-32 x 3/8")

$

$

Currently unavailable

20

Homelite JA359256

DEFLECTOR

$

$

Not available

21

Homelite JA991923

COVER- Belt opening

Note: Not used on this product

$

$

Currently unavailable

22

Homelite JA375276

SPRING- Chute

$

$

Currently unavailable

23

Homelite JA400104

SCREW- (1/4-20 x 1/2")
(Superseded to UP03379)

Note: Not used on this product

$

$

Not available

24

Homelite JA992998

COVER- Discharge
(Superseded to UP06680)

$

$

Currently unavailable

25

Homelite JA992264

DECAL-CPSC

$

$

Not available

26

Homelite JA992391

DECAL- Danger

$

$

Not available

27

Homelite JA990567

STOP- Rope

$

$

Not available

28

ENGINE

$

$

Not available

29

Homelite JA375391

ROD- Drag flap

$

$

Currently unavailable

30

Homelite JA339238

FLAP- Drag
(Superseded to UP06701)

$

$

Not available

31

Homelite JA408878

SCREW- (1/4-20 x 3/4")

$

$

Not available

32

Homelite JA994309

Cover- Rear

$

$

Currently unavailable

33

Homelite JA444708

NUT- Lock (1/4-20)

Note: Not used on this product

$

$

Currently unavailable

34

Homelite JA408876

SCREW- (3/8-16 x 1 1/2")

$

$

Not available

35

Homelite JA463029

KEY- Woodruff

$

$

Not available

36

Homelite JA991821

ADAPTER- Blade

$30.99

$

Usually ships in 3-7 days

0

37

Homelite JA993820

BLADE- (20")

$23.99

$

Usually ships in 3-7 days

0

38

Homelite JA446142

WASHER- Lock (3/8")

$

$

Not available

39

Homelite JA403753

SCREW- (3/8-24 x 1/2")

$

$

Not available

40

Homelite JA445775

NUT- Flange (5/16-18)
(Superseded to UP06674)

$

$

Not available

41

Homelite 80870

SCREW- (10-32 x 3/8")

Note: Not used on this product

$4.99

$

Usually ships in 3-7 days

0

Homelite JA403586

SCREW
(Superseded to UP07186)

Note: Not used on this product

$4.99

$

Usually ships in 3-7 days

0

42

Homelite JA444718

NUT- Lock (1/4-20)

Note: Not used on this product

$

$

Not available

43

Homelite JA990535

CONTROL- Traction

$

$

Currently unavailable

44

Homelite JA454008

WASHER

Note: Not used on this product

$

$

Not available

45

Homelite JA994311

RING- Engine

$

$

Not available

46

Homelite JA993975

WHEEL & TIRE

$

$

Not available

47

Homelite JA359500

WASHER

$

$

Not available

48

Homelite JA994801

PINION (L.H.)

$

$

Currently unavailable

Homelite JA994800

PINION (R.H.)

$

$

Not available

49

Homelite JA994740

PIN- Drive

$

$

Currently unavailable

50

Homelite JA351077

WASHER

$

$

Not available

51

Homelite JA990074

SUPPORT- Drive wheel
(Superseded to GP095304)

$

$

Not available

52

Homelite JA991288

INDEX SPRING & PIN

$

$

Not available

53

Homelite JA359141

SPACER- Rear hgt. adj.

$

$

Not available

54

Homelite JA408879

SCREW- (1/4-20 x 3/4")

$

$

Currently unavailable

55

Homelite JA994312

COVER- Drive

$

$

Currently unavailable

56

Homelite JA408865

SCREW- (1/4-20 x 9/16")

$

$

Currently unavailable

57

Homelite JA994325

BRACKET- Gearbox

$

$

Currently unavailable

58

Homelite JA390165

BELT- Drive
(Superseded to UP07148)

$

$

Not available

59

Homelite 03414

PULLEY- Drive

Note: Not used on this product

$

$

Not available

Homelite JA993007

PULLEY- Drive

$

$

Not available

60

Homelite JA422505

SCREW- Set (1/4-20 x 3/8")

$

$

Not available

Homelite JA422541

SCREW- Set (8-32 x 1/4")

Note: Not used on this product

$4.99

$

Usually ships in 3-7 days

0

61

Homelite JA990641

COVER- Spring

$

$

Currently unavailable

62

Homelite JA991065

CLAMP

$

$

Not available

63

Homelite JA409908

SCREW- Hex (1/4-20 x.518)

$3.99

$

Usually ships in 3-7 days

0

64

Homelite JA454037

WASHER

$

$

Not available

65

Homelite JA328147

WASHER

$

$

Not available

66

Homelite JA353406

WASHER

$

$

Not available

67

Homelite JA458451

RING- Eaton

$2.99

$

Usually ships in 3-7 days

0

68

Homelite JA375748

SPRING- Extension

$

$

Not available

69

Homelite JA994858

SPRING- Compression

$

$

Not available

70

Homelite JA461361

PIN- Roll

$

$

Not available
