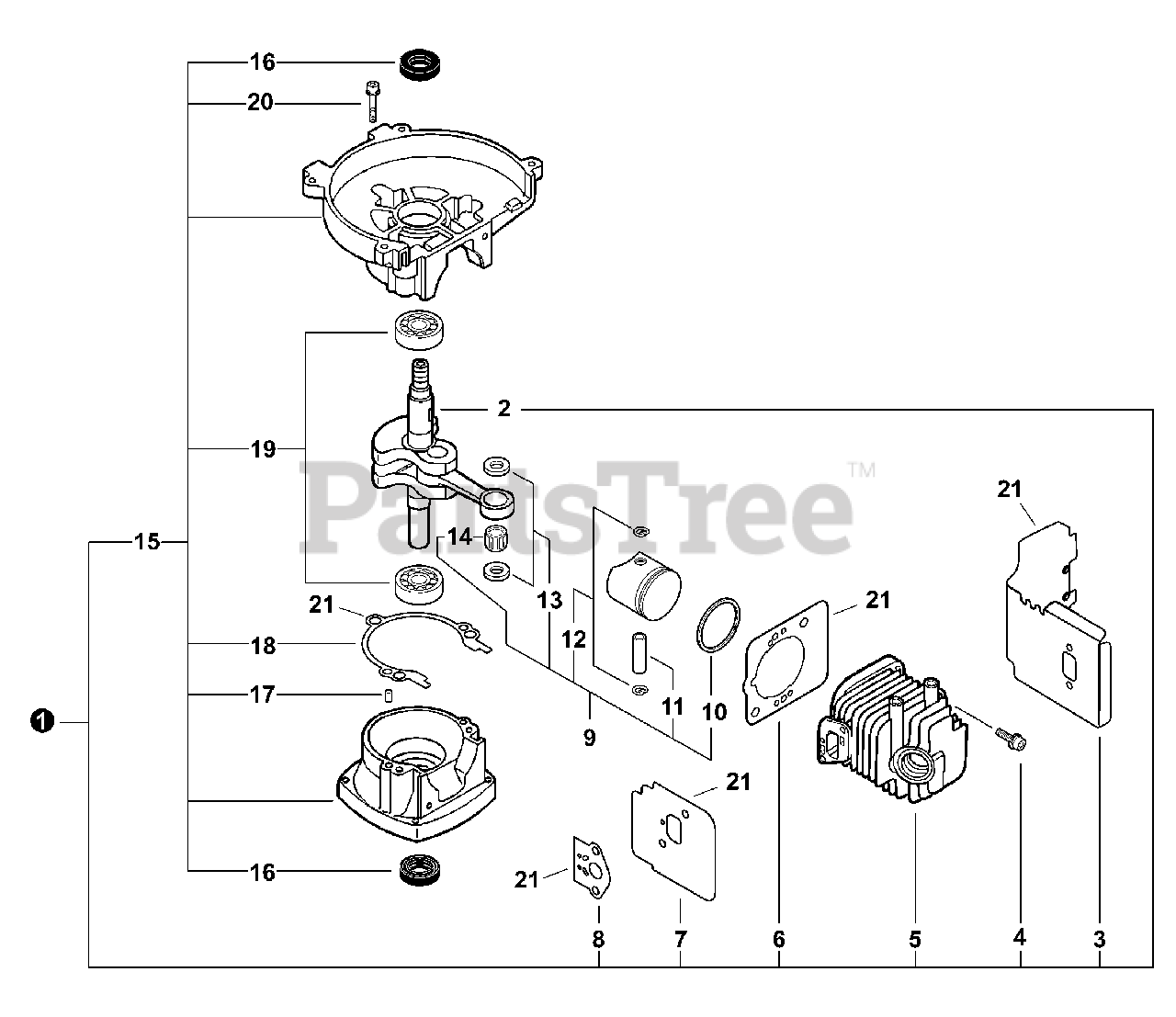

HC-185 - Echo Hedge Trimmer (SN: S84113001001 - S84113999999) Engine Parts Diagram

Hedge Trimmer

Engine Parts Diagram

  • Title

1

Echo SB1075

SHORT BLOCK -- SB1075

Note: Includes Items 2-20

$231.99

$

In Stock, only 2 left!

0

2

Echo A011000223

CRANKSHAFT ASSY

$161.99

$

Usually ships in 2-4 days

0

3

Echo V104000850

SHIELD, EXHAUST

$13.99

$

In Stock, only 1 left!

0

4

Echo 90016205022

SCREW - 5×22

$0.99

$

In Stock, Qty 20+

0

5

Echo A130000550

CYLINDER

$90.99

$

Usually ships in 2-4 days

0

6

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

7

Echo V103000180

GASKET, INTAKE

$1.99

$

In Stock, Qty 5

0

8

Echo V103000410

GASKET, INTAKE

$1.49

$

In Stock, Qty 5

0

9

Echo P021007772

PISTON KIT

Note: Includes Items 10-14

$

$

Not available

10

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

11

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

12

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

13

Echo 10001408960

WASHER

$3.49

$

Usually ships in 2-4 days

0

14

Echo 10011305930

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

15

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes Items 16-20

$140.99

$

Usually ships in 2-4 days

0

16

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

17

Echo 90033040080

PIN, LOCATING

$0.99

$

In Stock, Qty 20+

0

18

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

19

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

20

Echo 90016205028

SCREW - 5×28

$1.99

$

In Stock, Qty 20+

0

21

Echo P021013500

GASKET KIT
(Superseded to P021013501)

$29.99

$

Usually ships in 2-4 days

0
