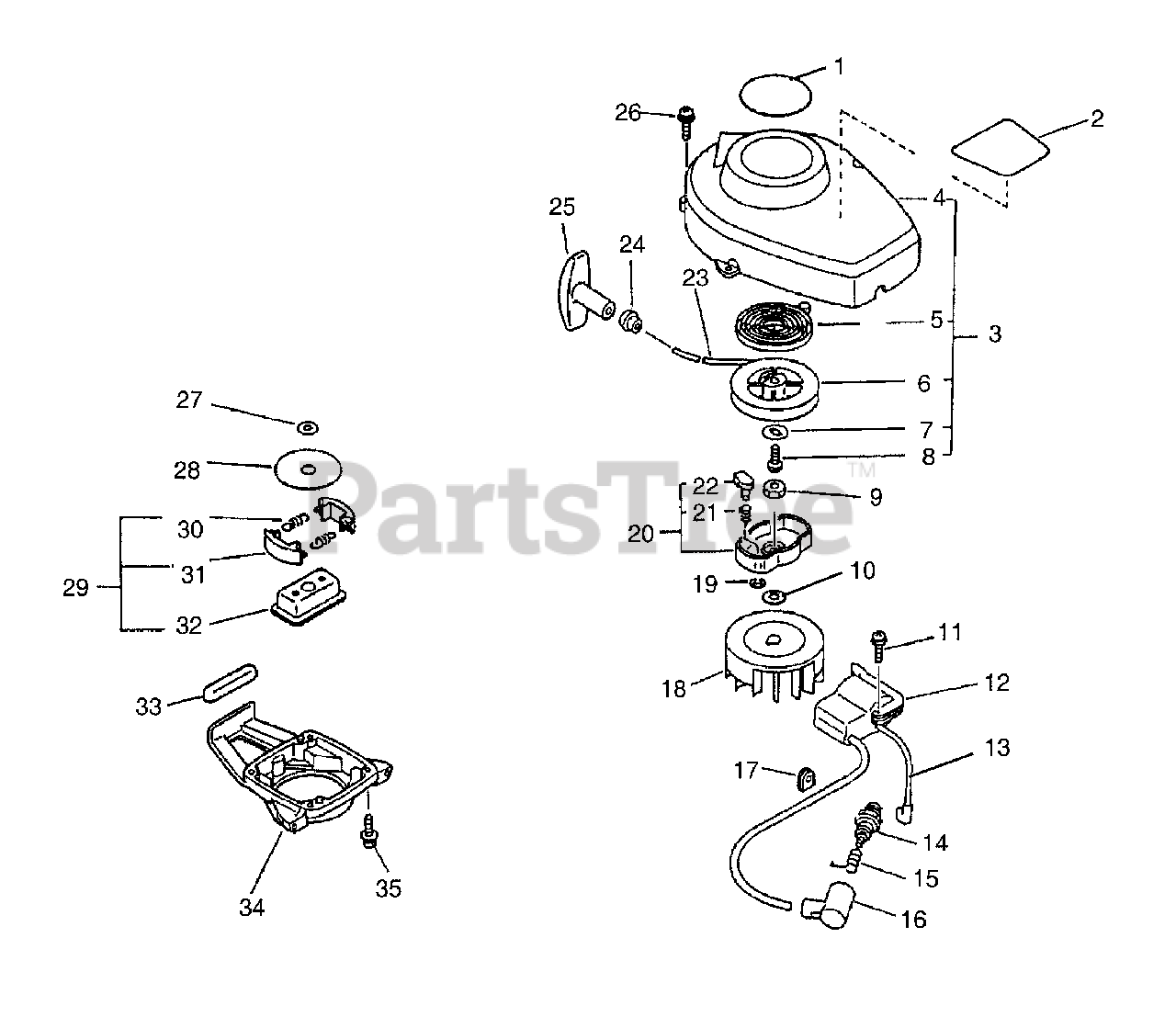

HC-1800 - Echo Hedge Trimmer (Type 1E) Ignition, Starter Assembly Parts Diagram

Hedge Trimmer (Type 1E)

Ignition, Starter Assembly Parts Diagram

  • Title
1

Echo X503002950

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

2

Echo X505000290

LABEL - CAUTION

$2.49

$

In Stock, only 1 left!

0

3

Echo 17720005962

STARTER ASSY

Note: INCLUDES ITEMS 4-8, 23-25

$79.99

$

Usually ships in 2-4 days

0

4

Echo 17723205961

CASE, STARTER

$46.99

$

Usually ships in 2-4 days

0

5

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

6

Echo 17721505960

REEL, ROPE

$13.99

$

In Stock, only 1 left!

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

$3.49

$

In Stock, only 1 left!

0

9

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

10

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

11

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

12

Echo 15660152130

COIL, IGNITION
(Superseded to 15660152131)

$133.99

$

In Stock, only 1 left!

0

13

Echo 16202152830

LEAD - IGNITION
(Superseded to V485001080)

$3.99

$

In Stock, Qty 7

0

14

Echo 99944500071

SPARK PLUG -- BPM-7Y

$2.49

$

In Stock, Qty 8

0

14

Echo 15901010230

SPARK PLUG -- BPMR-7A

Note: CANADA MODELS

$3.99

$

In Stock, Qty 20+

0

15

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

16

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

17

$0.99

$

In Stock, Qty 5

0

18

Echo A409000000

FLYWHEEL
(Superseded to A409000100)

$63.99

$

Usually ships in 2-4 days

0

19

Echo 90070000004

RING, RETAINING - 4

$0.99

$

In Stock, Qty 20+

0

20

Echo 17720207360

STARTER PAWL ASSY
(Superseded to 17720207361)

Note: INCLUDES ITEMS 21-22

$13.99

$

In Stock, only 1 left!

0

21

Echo 17723405960

SPRING, RETURN
(Superseded to P022007980)

$3.99

$

In Stock, Qty 6

0

22

Echo 17721842030

PAWL, STARTER

$3.49

$

Usually ships in 2-4 days

0

23

Echo 17722605960

ROPE, STARTER - 3.5X1000

Note: RePower BULK OPTION: 99944445000

$6.49

$

Usually ships in 2-4 days

0

24

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

25

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

26

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

27

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

28

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

29

Echo 17500002962

CLUTCH ASSY

Note: INCLUDES ITEMS 30-32

$62.99

$

Usually ships in 2-4 days

0

30

Echo 17501805960

SPRING, CLUTCH

$1.99

$

In Stock, Qty 5

0

31

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

32

Echo 17501607330

HUB, CLUTCH
(Superseded to Discontinued)

$

$

Not available

33

Echo 13192028230

CUSHION, FUEL TANK

$1.49

$

In Stock, only 1 left!

0

34

Echo 17505506960

CASE, CLUTCH

$46.99

$

In Stock, only 1 left!

0

35

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

Echo 99944440000

RePower BULK ROPE - 200 FEET

Note: OPTIONAL

$29.99

$

In Stock, Qty 7

0
