HC-1800 - Echo Hedge Trimmer (Type 1E) Fuel System, Oil System Parts Diagram

Hedge Trimmer (Type 1E)

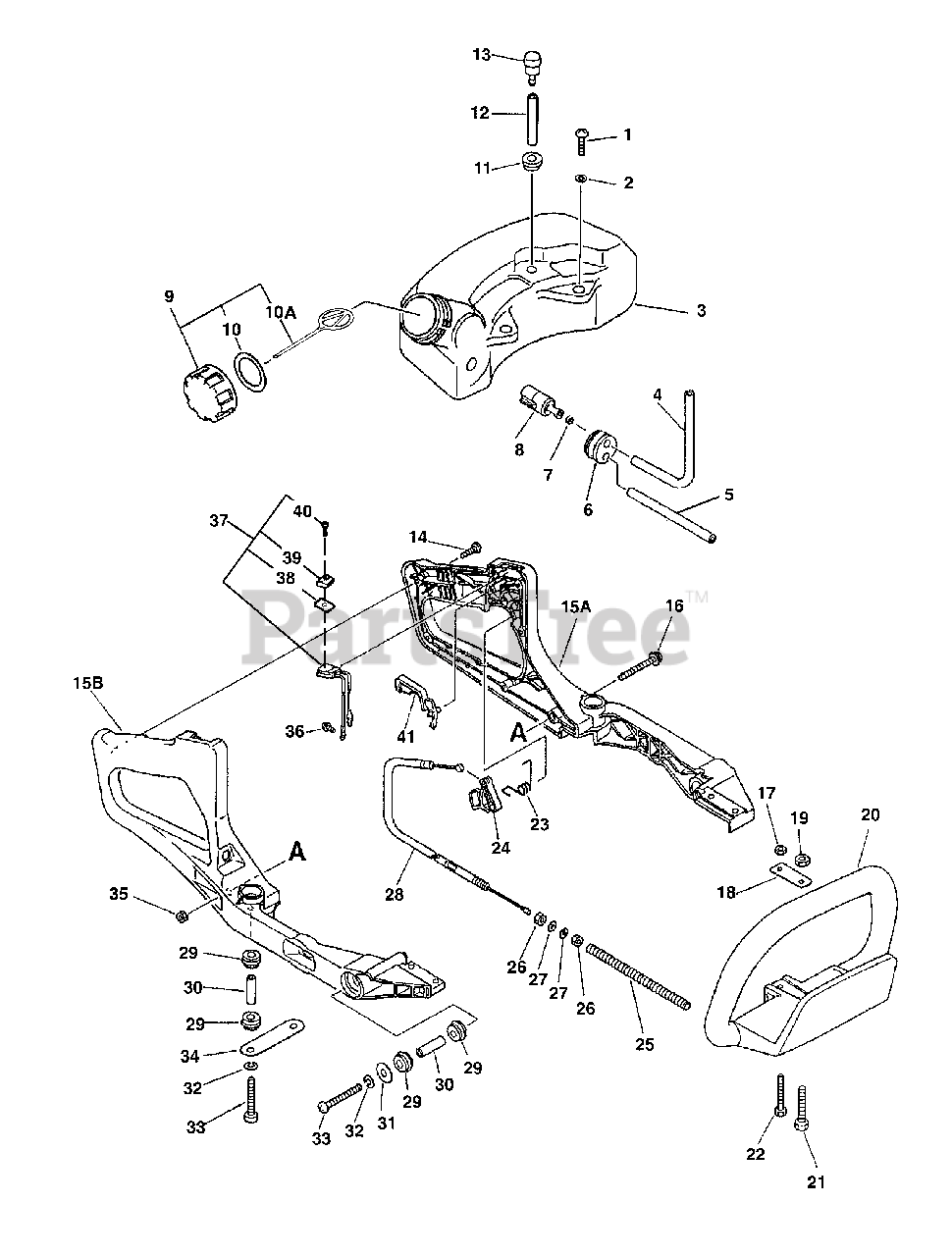

Fuel System, Oil System Parts Diagram

  • Title

1

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 13100208960

TANK, FUEL
(Superseded to 13100208961)

$

$

Not available

4

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, only 4 left!

0

5

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0

6

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

7

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: USE KIT P/N 90008

$5.49

$

In Stock, Qty 20+

0

9

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: INCLUDES ITEM 10-10A, USE KIT P/N 90010

$6.49

$

In Stock, only 2 left!

0

10

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

10A

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

11

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 9

0

12

Echo 13201021160

PIPE - 3X6X35 -- BLACK
(Superseded to V471001180)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 14

0

13

Echo A356000031

VENT, FUEL TANK

Note: USE KIT P/N 90010

$7.99

$

In Stock, Qty 20+

0

14

Echo 90025304025

SCREW - 4X25

$0.99

$

In Stock, Qty 10

0

15A

Echo 35112906960

HANDLE, REAR - LEFT
(Superseded to 35112906961)

$

$

Not available

15B

Echo 35111006960

HANDLE, REAR - RIGHT
(Superseded to 35111006961)

$24.99

$

In Stock, only 1 left!

0

16

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

17

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

18

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

19

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

20

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0

21

Echo 90010006035

BOLT - 6X32

$0.99

$

Usually ships in 2-4 days

0

22

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0

23

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

24

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 5

0

25

Echo 17812706960

TUBE

$2.49

$

In Stock, only 3 left!

0

26

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

27

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

28

Echo 17800106960

CABLE, THROTTLE

$19.99

$

Usually ships in 2-4 days

0

29

Echo 35122806960

CUSHION

$3.99

$

Usually ships in 2-4 days

0

30

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 18

0

31

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 11

0

32

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

33

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 12

0

34

Echo 35124206960

PLATE
(Superseded to 35124206961)

$2.49

$

In Stock, only 2 left!

0

35

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

36

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

37

Echo A440000330

IGNITION SWITCH ASSY

Note: INCLUDES ITEMS 38-40

$11.99

$

Usually ships in 2-4 days

0

38

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

39

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

40

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

41

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
