HC-1800 - Echo Hedge Trimmer (Type 1E) Crankcase, Cylinder Cover, Engine Parts Diagram

Hedge Trimmer (Type 1E)

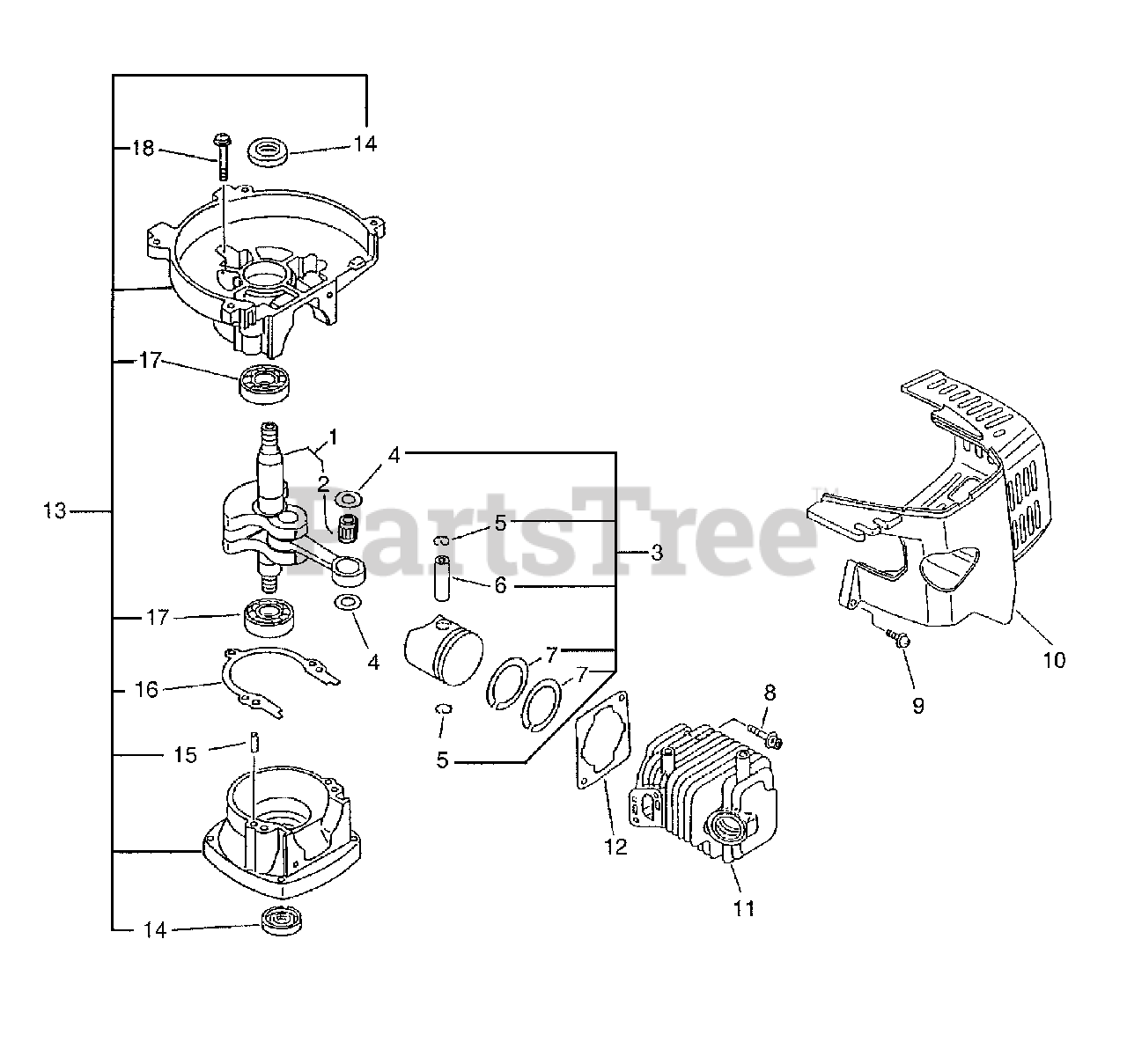

Crankcase, Cylinder Cover, Engine Parts Diagram

  • Title

1

Echo A011000011

CRANKSHAFT ASSY
(Superseded to A011000013)

Note: INCLUDES ITEM 2 - USE SB1032

$135.99

$

Usually ships in 2-4 days

0

2

Echo 10011305930

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

3

Echo P021001111

PISTON KIT
(Superseded to P021001112)

Note: INCLUDES ITEMS 4-7

$58.99

$

Usually ships in 2-4 days

0

4

Echo 10001408960

WASHER

$3.49

$

Usually ships in 2-4 days

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo A101000000

RING, PISTON

$8.49

$

In Stock, only 3 left!

0

8

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

9

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

10

Echo 10151408960

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

11

Echo A130000021

CYLINDER
(Superseded to A130002300)

$123.99

$

Usually ships in 2-4 days

0

12

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN KIT P/N P021000350

$3.99

$

In Stock, Qty 6

0

13

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: INCLUDES ITEMS 14-18 - USE SB1032

$140.99

$

Usually ships in 2-4 days

0

14

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

Echo 10024242030

GASKET, CRANKCASE

Note: INCLUDED IN KIT P/N P021000350

$1.49

$

In Stock, Qty 20+

0

17

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

18

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

Echo SB1032

SHORT BLOCK -- SB1032
(Superseded to Discontinued)

$

$

Not available

Echo P021000350

GASKET KIT
(Superseded to P021000351)

Note: INCLUDES THE FOLLOWING:

$12.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, Qty 6

0

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, only 1 left!

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

Echo V104000003

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 19

0
