HC-180 - Echo Hedge Trimmer (SN: S78012001001 - S78012999999) Handles, Switch, Throttle Cable Parts Diagram

Hedge Trimmer

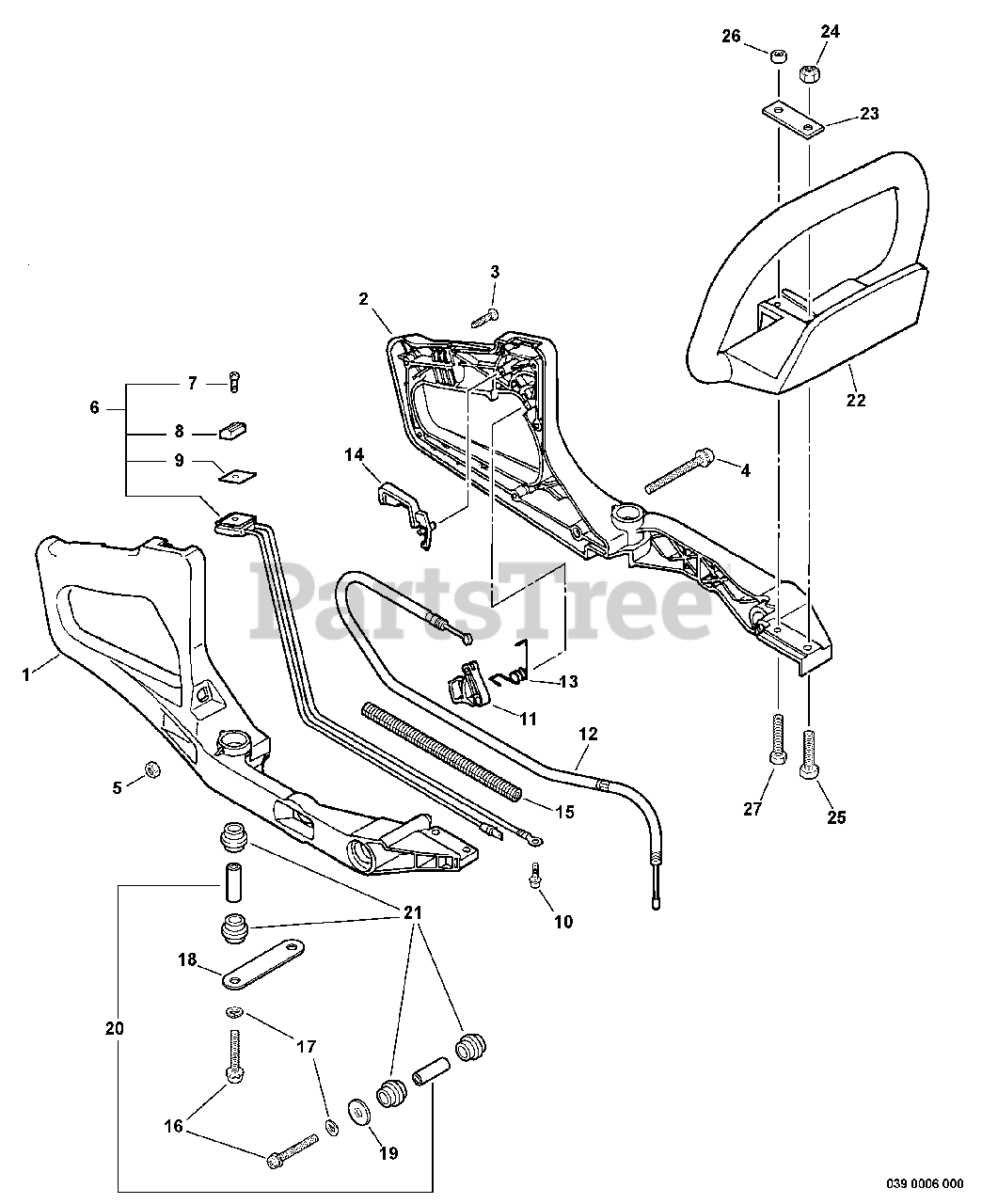

Handles, Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 35111006961

HANDLE, REAR - RIGHT

$24.99

$

In Stock, only 1 left!

0

2

Echo 35112906961

HANDLE, REAR - LEFT
(Superseded to Discontinued)

$

$

Not available

3

Echo 90025304025

SCREW - 4X25

$0.99

$

In Stock, Qty 10

0

4

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

5

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo A440000330

IGNITION SWITCH ASSY

Note: INCLUDES ITEMS 7-9

$11.99

$

Usually ships in 2-4 days

0

7

Echo 9154503010

SCREW - 3X10

$0.99

$

In Stock, Qty 20+

0

8

Echo 16341049231

KNOB, SWITCH - ORANGE

$3.99

$

In Stock, Qty 20+

0

9

Echo 89015712330

COVER, SWITCH - STOP

$3.49

$

In Stock, Qty 13

0

10

Echo 90023805010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

11

Echo 17801005960

TRIGGER, THROTTLE

$5.49

$

In Stock, Qty 5

0

12

Echo V430000630

CABLE, THROTTLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 17801335631

SPRING, LOCKOUT LEVER

$2.49

$

In Stock, Qty 10

0

14

Echo 17801205960

LOCKOUT, THROTTLE

$5.99

$

In Stock, only 1 left!

0

15

Echo 17812706960

TUBE

$2.49

$

In Stock, only 3 left!

0

16

Echo 90022005040

SCREW - 5X40

$0.99

$

In Stock, Qty 12

0

17

Echo 90060500005

LOCKWASHER - 5

$0.99

$

In Stock, Qty 10

0

18

Echo 35124206961

PLATE

$2.49

$

In Stock, only 2 left!

0

19

Echo 35124906960

WASHER

$0.99

$

In Stock, Qty 11

0

20

Echo 35124101260

SPACER
(Superseded to 35124101261)

$2.99

$

In Stock, Qty 18

0

21

Echo 35122806960

CUSHION

$3.99

$

Usually ships in 2-4 days

0

22

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0

23

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

24

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

25

Echo 90010006035

BOLT - 6X32

$0.99

$

Usually ships in 2-4 days

0

26

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

27

Echo 90010005035

BOLT - 5X35

$0.99

$

In Stock, Qty 20+

0
