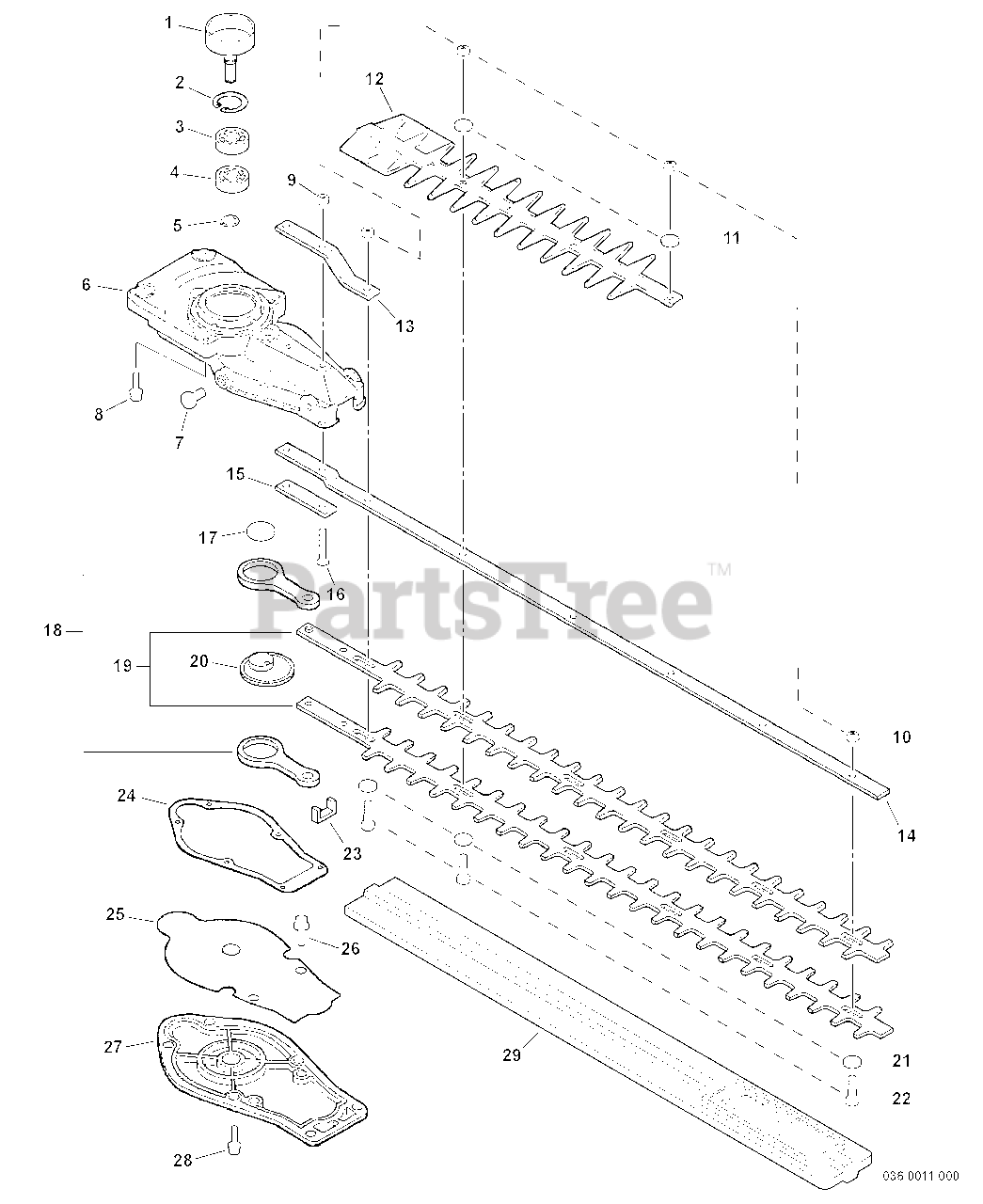

HC-180 - Echo Hedge Trimmer (SN: S78012001001 - S78012999999) Gear Case, Blades Parts Diagram

Hedge Trimmer

Gear Case, Blades Parts Diagram

  • Title
1

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

0

2

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

3

Echo 90081336202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

0

4

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

5

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

0

6

Echo 61040707760

CASE, GEAR - UPPER

$139.99

$

Usually ships in 2-4 days

0

7

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

8

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

0

9

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

10

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

11

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 69912502961

SUPPORT, BLADE

$10.99

$

Usually ships in 2-4 days

0

13

Echo 69912006560

PLATE, ANGLE

$4.99

$

Usually ships in 2-4 days

0

14

Echo X425000240

SUPPORT, BLADE

$32.99

$

In Stock, only 1 left!

0

15

$3.49

$

Usually ships in 2-4 days

0

16

Echo 90021206025

SCREW - 6X25

$0.99

$

In Stock, Qty 14

0

17

$1.49

$

In Stock, only 4 left!

0

18

Echo C532000120

ROD, CONNECTING
(Superseded to C532000121)

$23.99

$

In Stock, only 3 left!

0

19

Echo X411000390

BLADE, TRIMMER

$63.99

$

Usually ships in 2-4 days

0

20

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

0

21

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

22

$4.49

$

In Stock, Qty 20+

0

23

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

24

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 19

0

25

Echo 61044707760

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

26

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

27

Echo 61041107760

LID, GEAR CASE - LOWER

$78.99

$

Usually ships in 2-4 days

0

28

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 7

0

29

Echo X495000031

COVER, BLADE
(Superseded to X495000140)

$

$

Not available
