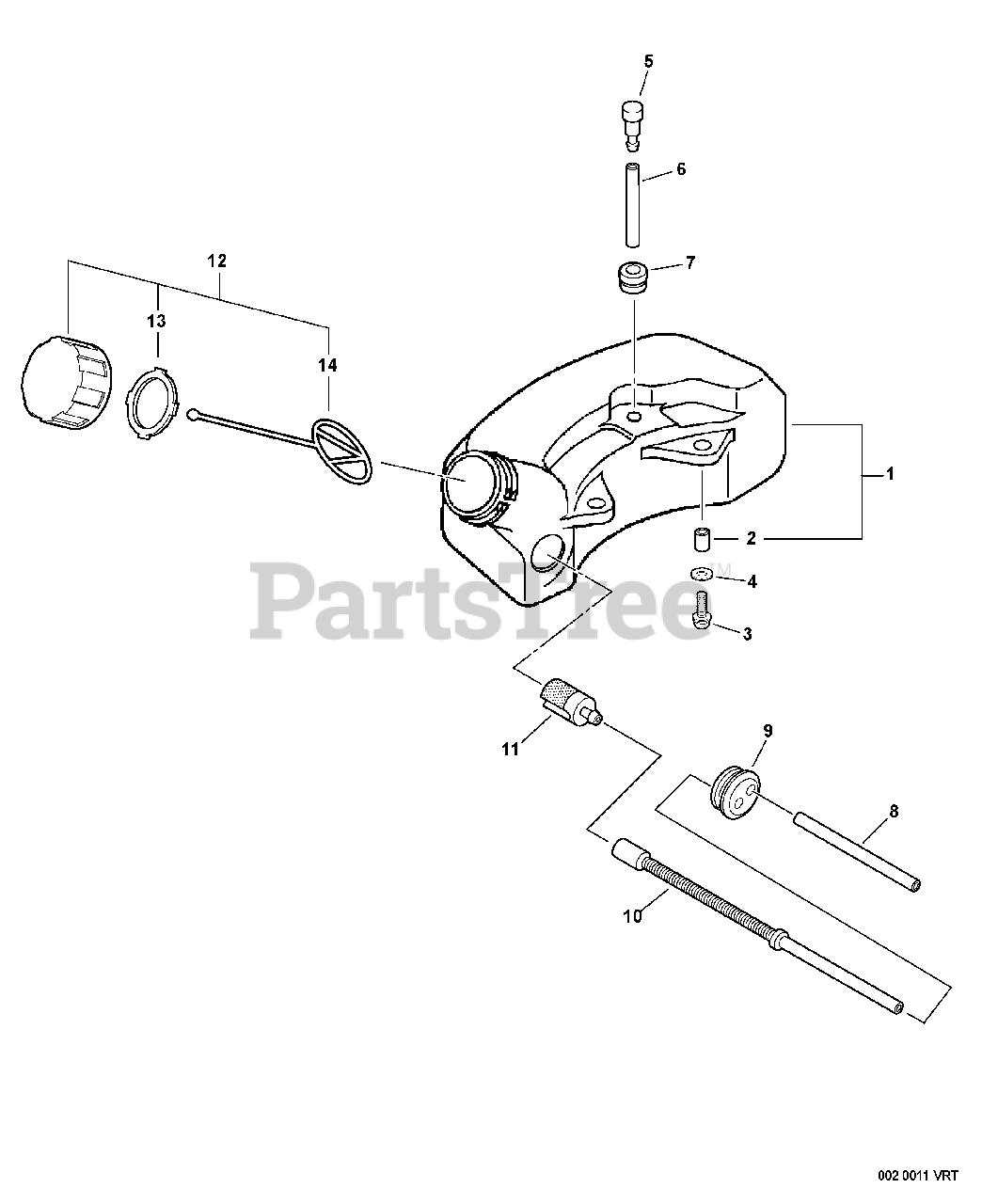

HC-180 - Echo Hedge Trimmer (SN: S78012001001 - S78012999999) Fuel System Parts Diagram

Hedge Trimmer

Fuel System Parts Diagram

  • Title

1

Echo 13100208961

TANK, FUEL
(Superseded to Discontinued)

Note: Includes ITEM 2

$

$

Not available

2

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

3

Echo 90016205016

SCREW - 5X16

$1.49

$

In Stock, Qty 20+

0

4

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

5

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

6

Echo V471001180

PIPE - 3X6X35 -- BLACK
(Superseded to V471001181)

Note: RePower BULK OPTION: 90015

$1.99

$

In Stock, Qty 13

0

7

Echo 13211501461

GROMMET
(Superseded to 13211501462)

$1.49

$

In Stock, Qty 19

0

8

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 14

0

9

Echo 13211544330

GROMMET
(Superseded to 13211544331)

$1.99

$

In Stock, Qty 20+

0

10

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, only 4 left!

0

11

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

12

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 13-14

$6.49

$

In Stock, Qty 9

0

13

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

14

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+
