HC-180 - Echo Hedge Trimmer (SN: 10001001 - 10999999) Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

Hedge Trimmer

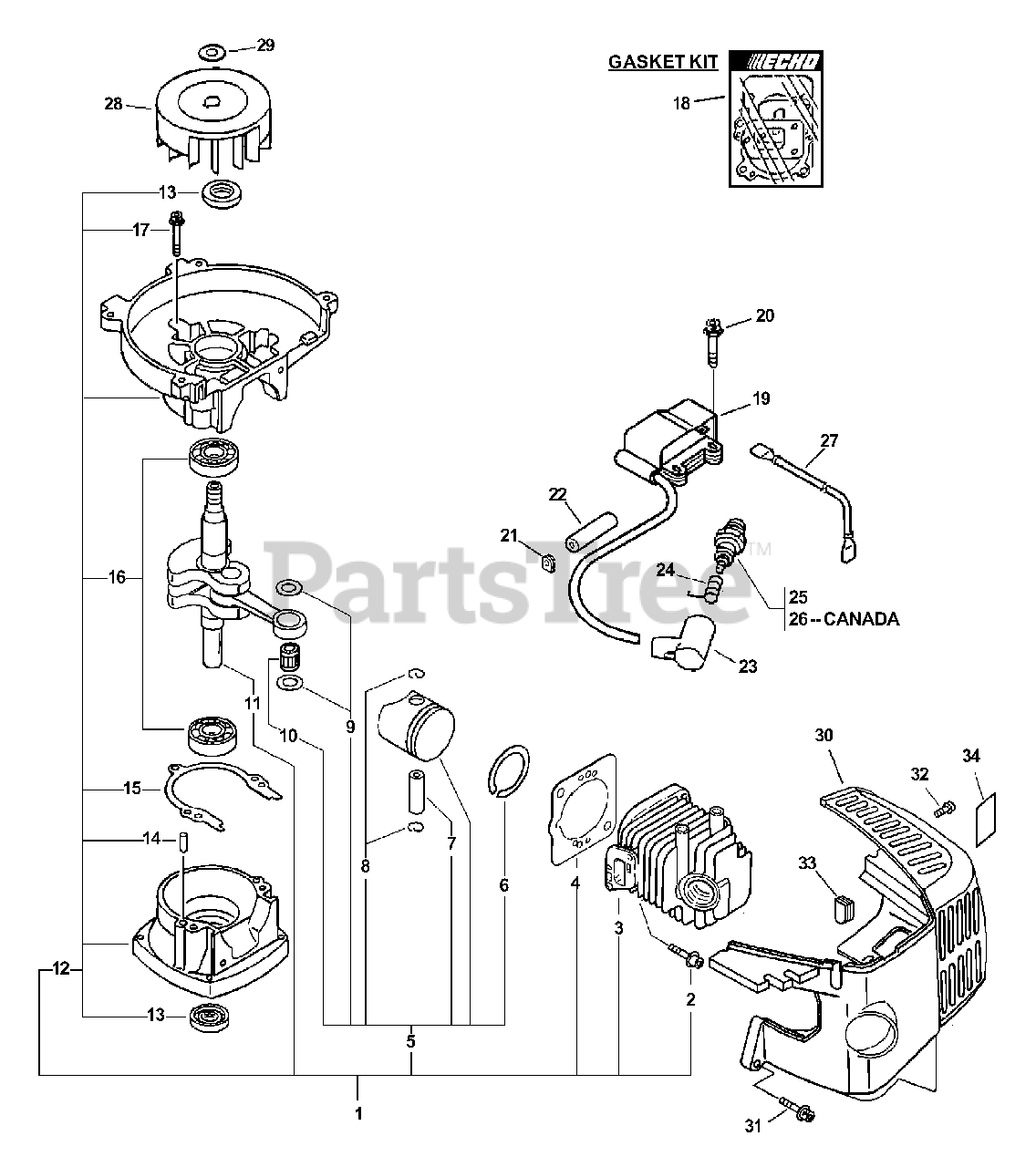

Engine, Short Block, Ignition, Cylinder Cover Parts Diagram

  • Title

1

Echo SB1075

SHORT BLOCK -- SB1075

Note: Includes ITEM 2-17

$231.99

$

In Stock, only 2 left!

0

2

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

3

Echo A130000550

CYLINDER

$90.99

$

Usually ships in 2-4 days

0

4

Echo V100000160

GASKET, CYLINDER

$6.49

$

In Stock, Qty 20+

0

5

Echo P021007772

PISTON KIT

Note: Includes ITEMS 6-10

$

$

Not available

6

Echo A101000090

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

7

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

8

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

9

Echo 10001408960

WASHER

$3.49

$

Usually ships in 2-4 days

0

10

Echo 10011305930

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

11

Echo A011000221

CRANKSHAFT ASSY
(Superseded to A011000222)

$161.99

$

Usually ships in 2-4 days

0

12

Echo 10020452132

CRANKCASE KIT
(Superseded to 10020452133)

Note: Includes ITEMS 13-17

$140.99

$

Usually ships in 2-4 days

0

13

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 11

0

14

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

15

Echo 10024242030

GASKET, CRANKCASE

$1.49

$

In Stock, Qty 20+

0

16

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

17

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 20+

0

18

Echo P021004611

GASKET KIT
(Superseded to P021004613)

$37.99

$

In Stock, only 2 left!

0

19

Echo A411000140

COIL, IGNITION
(Superseded to A411000141)

$73.99

$

In Stock, only 2 left!

0

20

Echo 90016204020

SCREW - 4X20

$1.49

$

In Stock, Qty 20+

0

21

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 6

0

22

Echo 15611054930

TUBE, INSULATOR

$1.99

$

In Stock, Qty 20+

0

23

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

24

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 13

0

25

Echo 15901019830

SPARK PLUG -- BPM-8Y

$3.49

$

In Stock, Qty 20+

0

26

Echo A425000000

SPARK PLUG -- BPMR-8Y

$3.49

$

In Stock, Qty 20+

0

27

Echo V485000300

LEAD - IGNITION
(Superseded to Discontinued)

$

$

Not available

28

Echo A409000210

FLYWHEEL

$54.99

$

In Stock, only 1 left!

0

29

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

30

Echo A160000161

COVER, ENGINE

$15.99

$

Usually ships in 2-4 days

0

31

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

32

Echo 9110704008

SCREW - 4X8

$0.99

$

In Stock, Qty 20+

0

33

Echo 10153807420

PLUG
(Superseded to Discontinued)

$

$

Not available

34

Echo X505002310

LABEL - HOT SURFACE

$1.99

$

In Stock, Qty 20+

0
