HC-165 - Echo Hedge Trimmer (SN: S84013001001 - S84013999999) Gear Case, Blades - WITHOUT Tip Guard Parts Diagram

Hedge Trimmer

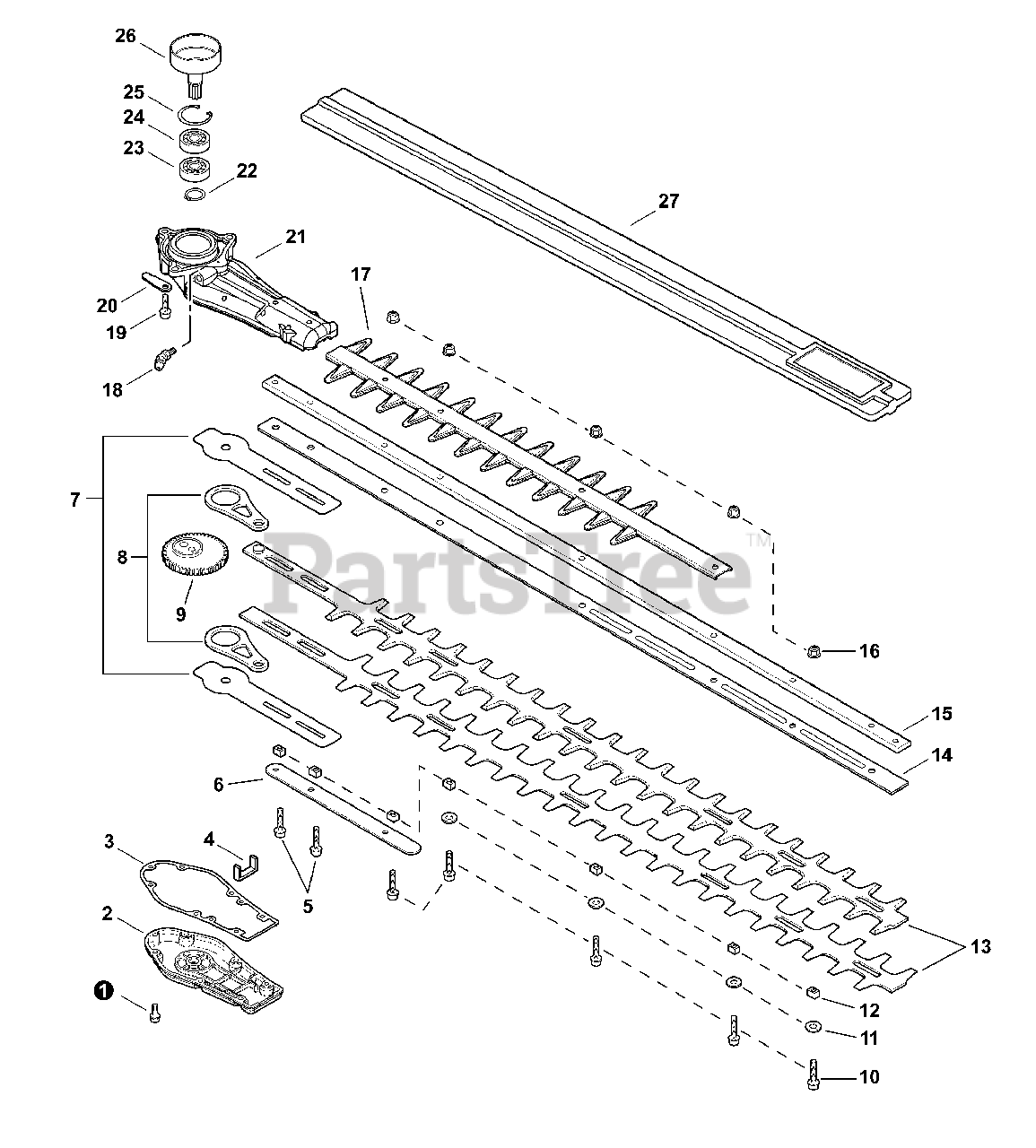

Gear Case, Blades - WITHOUT Tip Guard Parts Diagram

  • Title
1

Echo 90016304016

SCREW - 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

2

Echo C539000020

LID, GEAR CASE
(Superseded to C539000021)

$35.99

$

In Stock, only 1 left!

0

3

Echo V110000060

GASKET, GEAR CASE

$1.99

$

In Stock, Qty 7

0

$1.99

$

In Stock, Qty 8

0

5

Echo 90010605025

SCREW - 5×25

$0.99

$

In Stock, only 4 left!

0

6

Echo V150001800

SUPPORT, BLADE

$3.99

$

Usually ships in 2-4 days

0

7

Echo V150001810

PLATE, WEAR

$3.99

$

In Stock, only 1 left!

0

8

Echo C532000170

ROD, CONNECTING

$29.99

$

Usually ships in 2-4 days

0

9

Echo V650000300

GEAR, SPUR

$54.99

$

Usually ships in 2-4 days

0

10

Echo 9110705022

SCREW - 5×22

$0.99

$

In Stock, Qty 20+

0

11

Echo 17721421860

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

12

Echo V353000250

GUIDE, BLADE

$5.49

$

In Stock, Qty 20+

0

13

Echo X411000610

BLADE, TRIMMER

$57.99

$

In Stock, Qty 17

0

14

Echo X425000380

SUPPORT, BLADE

$24.99

$

Usually ships in 2-4 days

0

15

Echo X425000370

SUPPORT, BLADE

$34.99

$

In Stock, only 2 left!

0

16

Echo 9210805000

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

17

$29.99

$

In Stock, only 1 left!

0

18

Echo 9498406075

FITTING, GREASE

$2.99

$

Usually ships in 2-4 days

0

19

Echo 9110706020

SCREW - 6×20

$0.99

$

In Stock, Qty 20+

0

20

$1.99

$

Usually ships in 2-4 days

0

21

Echo P021013070

CASE, GEAR
(Superseded to P021015600)

$92.99

$

In Stock, only 1 left!

0

22

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

0

23

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 6

0

24

Echo 90081206202

BEARING, BALL - 6202

$13.99

$

In Stock, only 1 left!

0

25

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

26

Echo A556000470

DRUM, CLUTCH

$27.99

$

Usually ships in 2-4 days

0

27

Echo X495000180

COVER, BLADE - 24" (60cm)
(Superseded to X495000181)

$8.99

$

Usually ships in 2-4 days

0
