Echo HC-1600 - Echo Hedge Trimmer (Type 1E) Gearcase, Blades, Clutch Drum Parts Lookup with Diagrams

1

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

2

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

3

Echo 90081336202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

4

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 8

5

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

6

Echo 61041007760

CASE, GEAR

Note: S/N 001001 - 001318

$139.99

$

Usually ships in 2-4 days

6

Echo 61040707760

CASE, GEAR - UPPER

Note: S/N 001319 & UP

$139.99

$

Usually ships in 2-4 days

7

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

8

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

9

Echo 69912006560

PLATE, ANGLE

$4.99

$

Usually ships in 2-4 days

10

Echo 69912502961

SUPPORT, BLADE

Note: S/N 509359 & UP

$10.99

$

Usually ships in 2-4 days

11

Echo X425000090

SUPPORT, BLADE

(Superseded to X425000230) 

$36.99

$

Usually ships in 2-4 days

12

Echo X411000110

BLADE, TRIMMER

(Superseded to X411000380) 

$52.99

$

Usually ships in 2-4 days

13

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

14

Echo 69911504660

BOLT - 6X18

$2.49

$

In Stock, Qty 20+

14

Echo 69911521460

SCREW

Note: S/N 509359 & UP

$4.49

$

In Stock, Qty 20+

15

Echo 89852302160

COVER, BLADE

(Superseded to X495000020) 

$

Not available 

16

Echo 90016204010

SCREW - 4X10

Note: S/N 001001 - 001318

$1.49

$

In Stock, Qty 20+

17

Echo 61041105361

LID, GEAR CASE

Note: S/N 001001 - 001318

$6.99

$

Usually ships in 2-4 days

18

Echo 61041405360

GASKET, GEAR CASE

Note: INCLUDED IN GASKET KIT - P/N 88900006560

$1.49

$

In Stock, Qty 20+

19

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

20

Echo 61033004560

ROD, CONNECTING

(Superseded to 61033004561) 

$23.99

$

In Stock, only 4 left!

21

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

22

Echo 90021206025

SCREW - 6X25

$0.99

$

In Stock, Qty 14

23

Echo 61035004560

WASHER

$1.49

$

In Stock, only 4 left!

24

Echo 69911807760

PLATE

$3.49

$

Usually ships in 2-4 days

25

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

26

Echo 90016205025

SCREW - 5X25

$0.99

$

In Stock, Qty 20+

27

Echo 90016205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

28

Echo 61044707760

LID, GEAR CASE

(Superseded to Discontinued) 

Note: S/N 001319 & UP

$

Not available 

29

Echo 61041107760

LID, GEAR CASE - LOWER

Note: S/N 001319 & UP

$78.99

$

Usually ships in 2-4 days

30

Echo 90016204012

SCREW - 4X12

Note: S/N 001319 & UP

$1.49

$

In Stock, Qty 8

31

Echo 89541006960

T-WRENCH - 13X19mm

(Superseded to 89541006961) 

$3.49

$

In Stock, Qty 8

32

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

Echo 88900006560

GASKET KIT

(Superseded to P021000350) 

Note: INCLUDES REF. NO 18

$12.99

$

Usually ships in 2-4 days

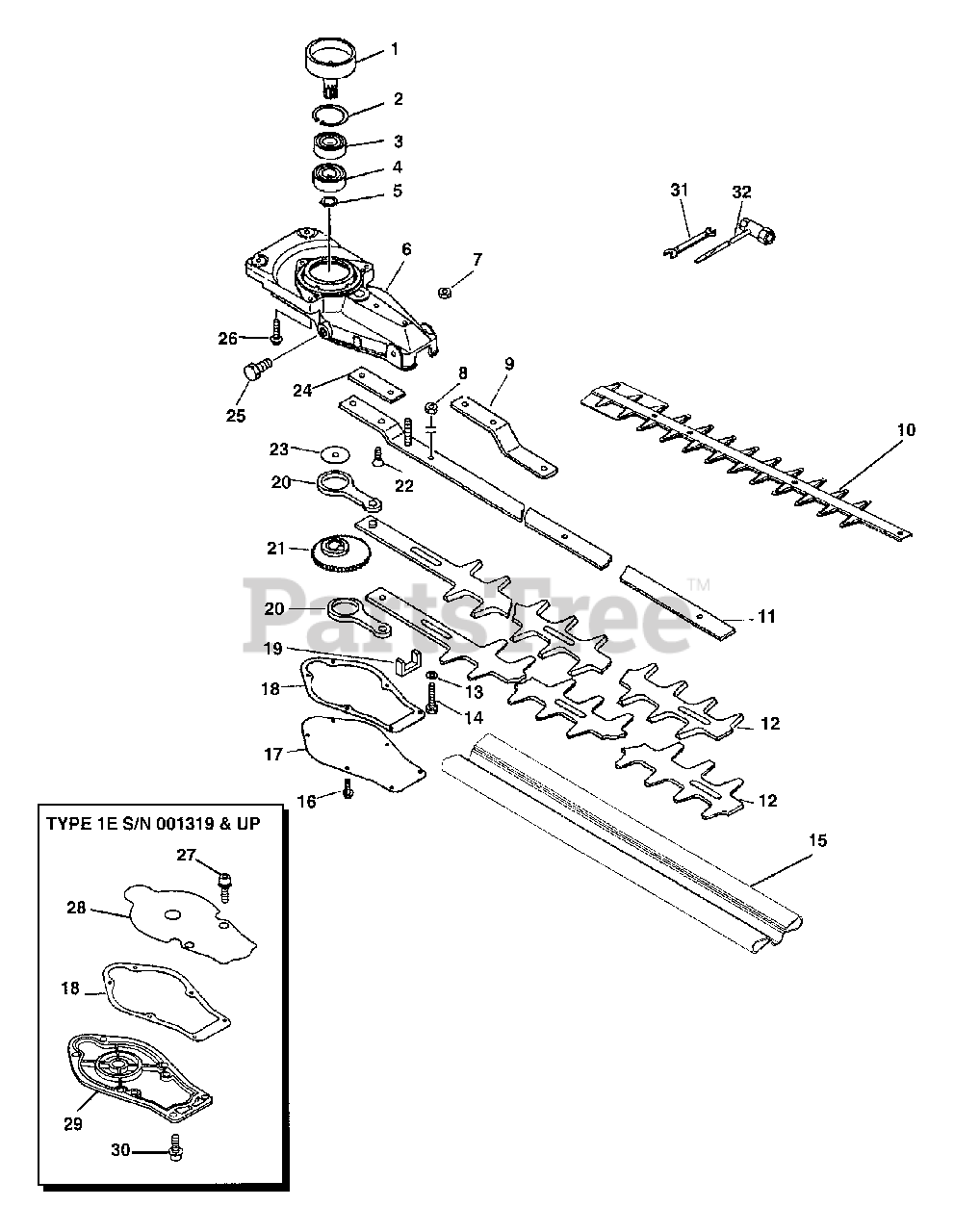

HC-1600 - Echo Hedge Trimmer (Type 1E) Gearcase, Blades, Clutch Drum Parts Diagram

Gearcase, Blades, Clutch Drum Parts Diagram

Echo 17500504560

Echo 90070200035

Echo 90081336202

Echo 90081036202

Echo 90070100014

Echo 61041007760

Echo 61040707760

Echo 90050000006

Echo 43302206460

Echo 69912006560

Echo 69912502961

Echo X425000090

Echo X411000110

Echo 69911804560

Echo 69911504660

Echo 69911521460

Echo 89852302160

Echo 90016204010

Echo 61041105361

Echo 61041405360

Echo 61042504560

Echo 61033004560

Echo 61031204560

Echo 90021206025

Echo 61035004560

Echo 69911807760

Echo 90010008008

Echo 90016205025

Echo 90016205012

Echo 61044707760

Echo 61041107760

Echo 90016204012

Echo 89541006960

Echo 89511200330

Echo 88900006560
