HC-1600 - Echo Hedge Trimmer (Type 1E) Engine, Crank Case, Cylinder Cover Parts Diagram

Hedge Trimmer (Type 1E)

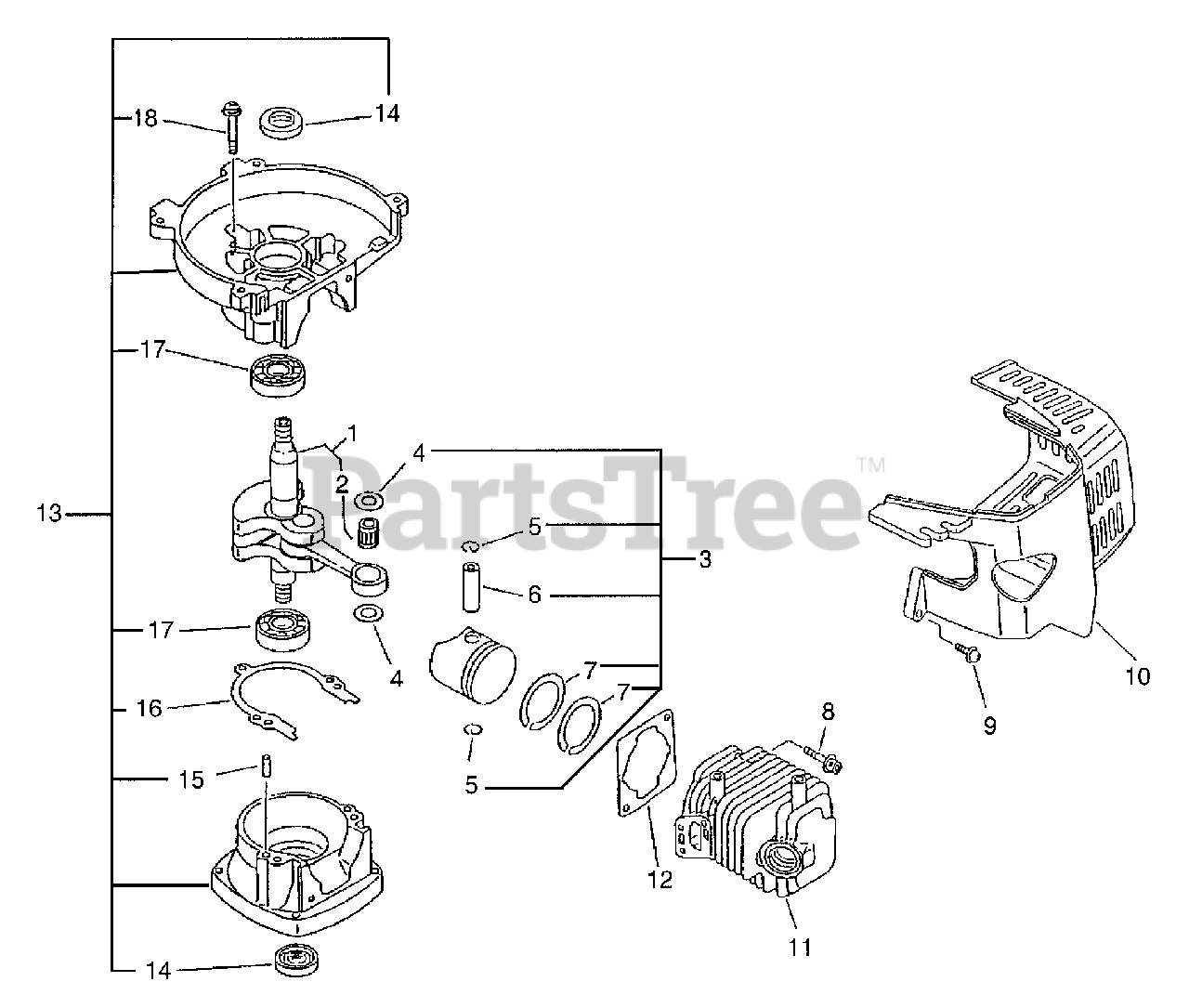

Engine, Crank Case, Cylinder Cover Parts Diagram

  • Title

1

------------------

CRANKSHAFT ASSY

Note: INCLUDES ITEM 2; (USE SB BELOW)

$

$

Not available

2

Echo 10011305930

BEARING, NEEDLE - 8

$11.99

$

Usually ships in 2-4 days

0

3

Echo 10000006962

PISTON KIT

Note: S/N 001001 - 516430. INCLUDES ITEMS 4 - 7

$76.99

$

Usually ships in 2-4 days

0

3

Echo P021001111

PISTON KIT
(Superseded to P021001112)

Note: S/N 516431 & UP. INCLUDES ITEMS 4 - 7

$58.99

$

Usually ships in 2-4 days

0

4

Echo 10001408960

WASHER

$3.49

$

Usually ships in 2-4 days

0

5

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

6

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

7

Echo 10001105330

RING, PISTON

Note: S/N 001001 - 516430

$8.49

$

In Stock, only 2 left!

0

7

Echo A101000000

RING, PISTON

Note: S/N 516431 & UP

$8.49

$

In Stock, only 2 left!

0

8

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

9

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

10

Echo 10151408960

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

11

Echo 10101106562

CYLINDER

Note: S/N 001001 - 516430

$109.99

$

Usually ships in 2-4 days

0

11

Echo A130000021

CYLINDER
(Superseded to A130002300)

Note: S/N 516431 & UP

$123.99

$

Usually ships in 2-4 days

0

12

Echo 10101044332

GASKET, CYLINDER

Note: INCLUDED IN GASKET KIT - P/N 88900006560

$3.99

$

In Stock, only 4 left!

0

13

------------------

CRANKCASE SET

Note: INCLUDES ITEMS 14-18; (USE SB BELOW)

$

$

Not available

14

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

15

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

16

------------------

GASKET, CRANKCASE

Note: INCLUDED IN GASKET KIT - P/N 88900006560

$

$

Not available

17

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

18

Echo 90016205028

SCREW - 5X28

$1.99

$

In Stock, Qty 19

0

Echo SB1032

SHORT BLOCK -- SB1032
(Superseded to Discontinued)

Note: S/N: 001001-516430

$

$

Not available

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: S/N 001001 - 511338. INCLUDES THE FOLLOWING

$12.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

Echo 14586642031

GASKET, EXHAUST

$2.49

$

In Stock, Qty 5

0

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 18

0

Echo P021000350

GASKET KIT
(Superseded to P021000351)

Note: S/N 511339 & UP. INCLUDES THE FOLLOWING

$12.99

$

Usually ships in 2-4 days

0

Echo 10101044332

GASKET, CYLINDER

$3.99

$

In Stock, only 4 left!

0

------------------

GASKET, CRANKCASE

$

$

Not available

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

Echo V104000160

GASKET, EXHAUST

$0.99

$

In Stock, Qty 16

0

Echo V104000003

GASKET, EXHAUST

$2.99

$

In Stock, only 2 left!

0

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 18

0
