Echo HC-1600 - Echo Hedge Trimmer (Type 1) Intake, Exhaust Parts Lookup with Diagrams

1

Echo V103000490

SHIELD, INTAKE

(Superseded to V103001360) 

Note: INCLUDED IN KIT P/N 88900006560

$2.49

$

In Stock, Qty 13

2

Echo 90023805020

SCREW - 5X20

$0.99

$

Usually ships in 2-4 days

3

Echo 12901105060

PLATE, PREVENT

Note: S/N 001001 - 027999

$5.99

$

In Stock, Qty 8

3

Echo 12901112620

PLATE, PREVENT

Note: S/N 028000 - 046717

$7.49

$

Usually ships in 2-4 days

3

Echo 12901106360

PLATE, PREVENT

(Superseded to 12901106361) 

Note: S/N 046718 & UP

$3.99

$

In Stock, Qty 14

4

Echo 90024205064

SCREW - 5X64

Note: S/N 001001 - 027999

$1.49

$

In Stock, Qty 9

4

Echo 90024205065

SCREW - 5X65

Note: S/N 028000 & UP

$0.99

$

In Stock, only 2 left!

5

Echo 90052800005

WINGNUT - 6

Note: S/N 001001 - 046717

$1.49

$

In Stock, Qty 15

5

Echo 21041752730

THUMBSCREW

Note: S/N 046718 & UP

$1.49

$

In Stock, Qty 20+

6

Echo 13080605960

COVER, AIR FILTER

(Superseded to 13031344331) 

Note: S/N 001001 - 006000

$4.49

$

Usually ships in 2-4 days

6

Echo 13031305060

COVER, AIR FILTER - BLACK

Note: S/N 006001 - 016676

$6.49

$

Usually ships in 2-4 days

6

Echo 13030206561

COVER, AIR FILTER - GRAY

Note: S/N 016677 - 046717

$7.99

$

In Stock, Qty 10

6

Echo 13031306563

COVER, AIR FILTER - GRAY

Note: S/N 046718 & UP

$6.99

$

In Stock, Qty 20+

7

Echo 89012105360

LABEL - CHOKE

$1.99

$

In Stock, Qty 15

8

Echo 13031004560

FILTER, AIR

Note: S/N 001001 - 016676

$4.99

$

In Stock, Qty 20+

8

Echo 13031006560

FILTER, AIR

Note: S/N 016677 & UP

$3.99

$

In Stock, Qty 9

8

Echo 13031054130

FILTER, AIR - SINGLE LAYER

(Superseded to A226001410) 

Note: S/N 016677 & UP. INCLD IN FILTER KIT P/N 90008

$7.49

$

In Stock, Qty 20+

9

Echo 13030705361

AIR FILTER CASE KIT - BLACK

(Superseded to Discontinued) 

$

Not available 

9

Echo 13030706561

AIR FILTER CASE ASSY

(Superseded to P021002921) 

$12.99

$

In Stock, Qty 6

10

Echo 12300005961

CARBURETOR WT-168A

(Superseded to Discontinued) 

Note: S/N 001001 - 006000

$

Not available 

10

Echo 12520006960

CARBURETOR C1U-K18

(Superseded to 12520006962) 

Note: S/N 006001 - 027999

$63.99

$

In Stock, only 1 left!

10

Echo 12520007760

CARBURETOR C1U-K35

(Superseded to 12520007761) 

Note: S/N 028000 - 047406

$

Not available 

10

Echo 12520005962

CARBURETOR C1U-K51

(Superseded to 12520005963) 

Note: S/N 047407 & UP

$63.99

$

In Stock, only 1 left!

11

Echo 13001642031

GASKET, INTAKE

Note: INCLUDED IN KIT P/N 88900006560

$1.49

$

In Stock, Qty 20+

12

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

14

Echo 14580042031

MUFFLER ASSY

(Superseded to 14580642030) 

Note: Includes ITEMS 15-20

$46.99

$

In Stock, only 1 left!

15

Echo V104000160

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900006560

$0.99

$

In Stock, Qty 14

16

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

17

Echo 14586642031

GASKET, EXHAUST

Note: INCLUDED IN KIT P/N 88900006560

$2.49

$

In Stock, only 3 left!

18

Echo 14587642030

GASKET, EXHAUST - INNER

$3.99

$

In Stock, Qty 6

19

Echo 14586342030

GUIDE, EXHAUST

(Superseded to A313000041) 

Note: S/N 001001 - 047406

$3.99

$

Usually ships in 2-4 days

19

Echo 14586308960

GUIDE, EXHAUST - OUTER

Note: S/N -47407 & UP

$5.49

$

Usually ships in 2-4 days

20

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

21

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 7

22

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

23

Echo A320000251

SHIELD, EXHAUST

$4.99

$

In Stock, Qty 14

Echo 88900006560

GASKET KIT

(Superseded to P021000350) 

$12.99

$

Usually ships in 2-4 days

Echo 90008

RePower FILTER KIT

(Superseded to 90152) 

$20.99

$

In Stock, Qty 5

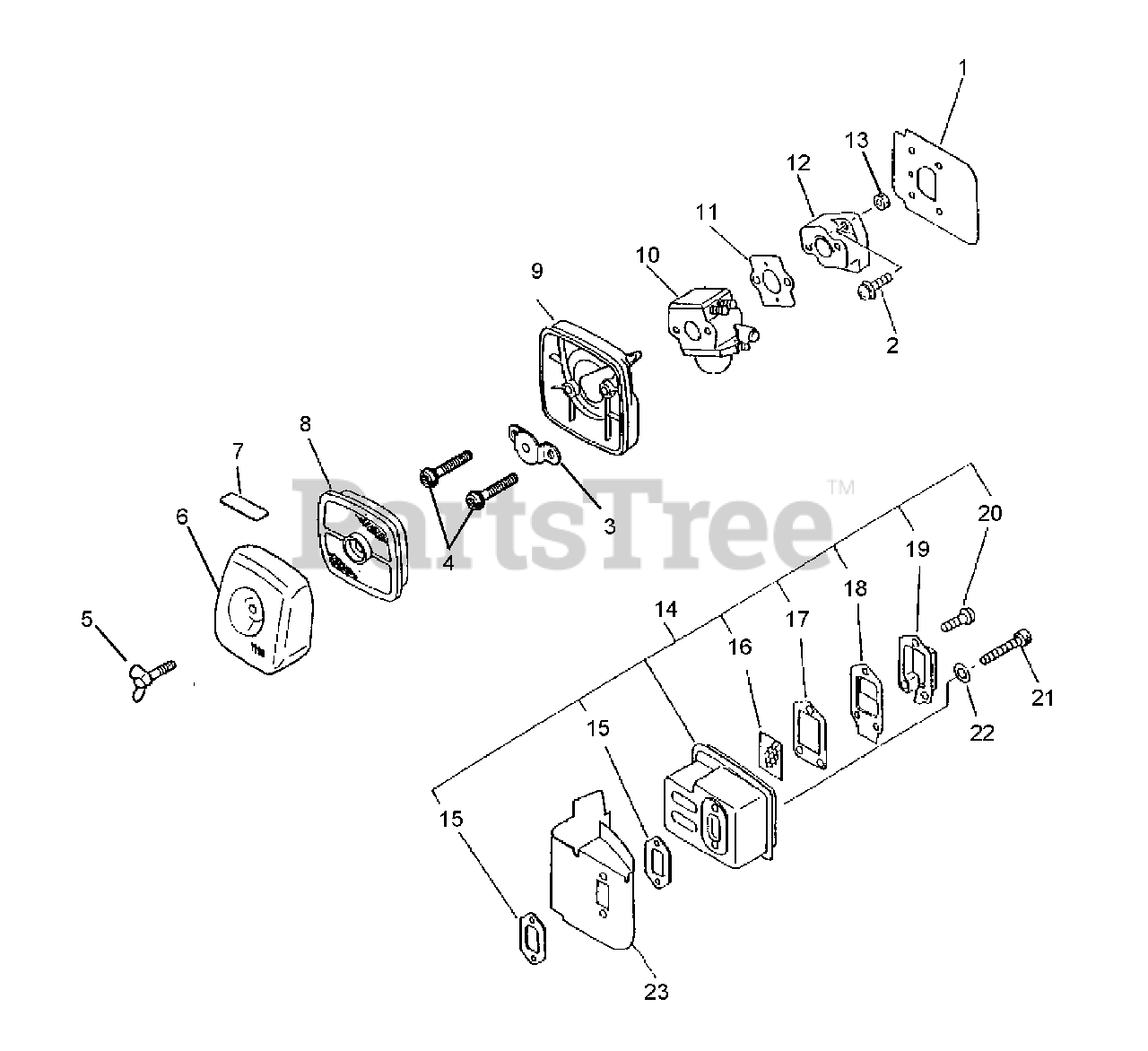

HC-1600 - Echo Hedge Trimmer (Type 1) Intake, Exhaust Parts Diagram

Intake, Exhaust Parts Diagram
