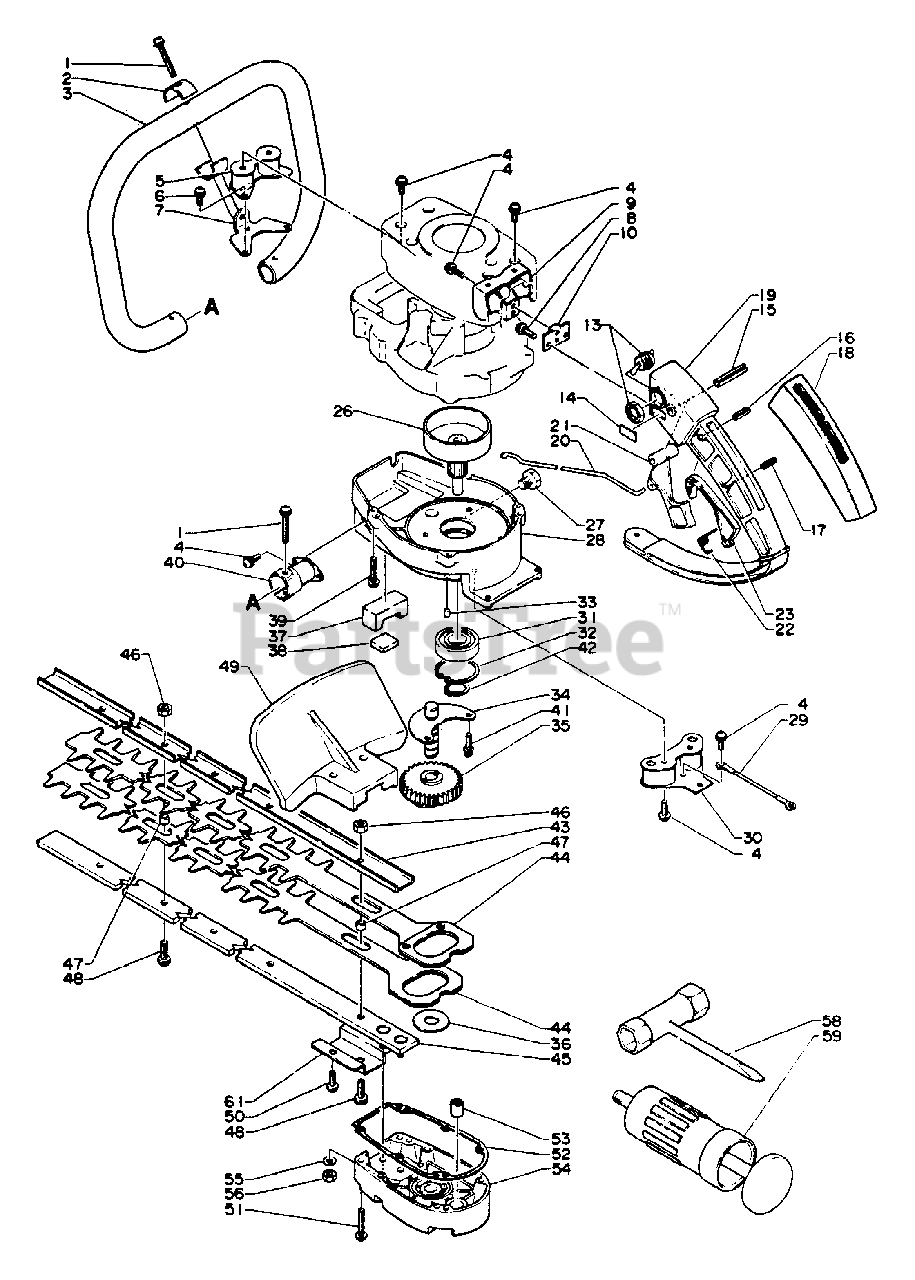

HC-160 - Echo Hedge Trimmer (Original Version) Gear Case, Handles, Blades, Throttle, Tools Parts Diagram

Hedge Trimmer

Gear Case, Handles, Blades, Throttle, Tools Parts Diagram

  • Title
1

Echo 90024204030

SCREW - 4X30

$0.99

$

In Stock, Qty 14

0

$3.49

$

Usually ships in 2-4 days

0

3

Echo 35161001360

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

4

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

5

$14.99

$

Usually ships in 2-4 days

0

6

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

7

Echo 35161301361

BRACKET, HANDLE

$14.99

$

Usually ships in 2-4 days

0

8

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

9

$15.99

$

Usually ships in 2-4 days

0

10

Echo 35112601360

PLATE
(Superseded to Discontinued)

$

$

Not available

13

Echo 16340002160

IGNITION SWITCH KIT

$8.49

$

In Stock, only 4 left!

0

14

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 7

0

15

Echo 90034050032

PIN - SPRING -- 5X32
(Superseded to Discontinued)

$

$

Not available

16

Echo 90034040016

PIN - SPRING -- 4X16
(Superseded to Discontinued)

$

$

Not available

17

Echo 90034030014

PIN - SPRING -- 3X14
(Superseded to Discontinued)

$

$

Not available

$6.49

$

Usually ships in 2-4 days

0

19

Echo 35111002160

HANDLE
(Superseded to Discontinued)

$

$

Not available

20

Echo 17801101360

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 17801001360

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

22

$1.99

$

Usually ships in 2-4 days

0

23

Echo 17809001360

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

26

Echo 17500502160

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

27

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

28

Echo 61041002160

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

29

Echo 16201001360

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

30

Echo 35110701360

CUSHION
(Superseded to Discontinued)

$

$

Not available

31

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

32

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

33

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

34

Echo 61030902160

SHAFT GEAR ASSY
(Superseded to Discontinued)

$

$

Not available

35

Echo 61030802160

GEAR SHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

36

Echo 61031902160

SEAT, CAM
(Superseded to Discontinued)

$

$

Not available

37

Echo 61042601360

SEAL, FELT

$1.99

$

Usually ships in 2-4 days

0

38

Echo 61043501360

SEAL, FELT

$1.49

$

Usually ships in 2-4 days

0

39

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

40

Echo 35160701360

CUSHION
(Superseded to Discontinued)

$

$

Not available

41

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

42

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

43

Echo 69911001360

SUPPORT, BLADE
(Superseded to Discontinued)

$

$

Not available

44

Echo 69700002160

TRIMMER BLADE SET
(Superseded to Discontinued)

Note: Blade set not available

$

$

Not available

44

Echo 69701002160

BLADE
(Superseded to Discontinued)

$

$

Not available

45

Echo 69910502160

SUPPORT, BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

46

Echo 69911601360

LOCKNUT - 5
(Superseded to 43302000830)

$1.49

$

In Stock, Qty 20+

0

47

Echo 69911102160

SPACER
(Superseded to Discontinued)

$

$

Not available

48

Echo 90010505018

SCREW - 5X18

$1.49

$

In Stock, only 2 left!

0

49

Echo 35180501360

GUARD
(Superseded to Discontinued)

$

$

Not available

50

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

51

Echo 90024204025

SCREW - 4X25

$0.99

$

In Stock, only 2 left!

0

52

Echo 61041402160

GASKET, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

53

Echo 61044201360

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

54

Echo 61041102160

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

55

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

56

Echo 43302000830

LOCKNUT - 5
(Superseded to 90056000005)

$1.49

$

In Stock, Qty 20+

0

58

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

59

Echo 88030001260

PUMP, GREASE
(Superseded to Discontinued)

$

$

Not available

61

Echo 35183302160

BRACKET
(Superseded to Discontinued)

$

$

Not available
