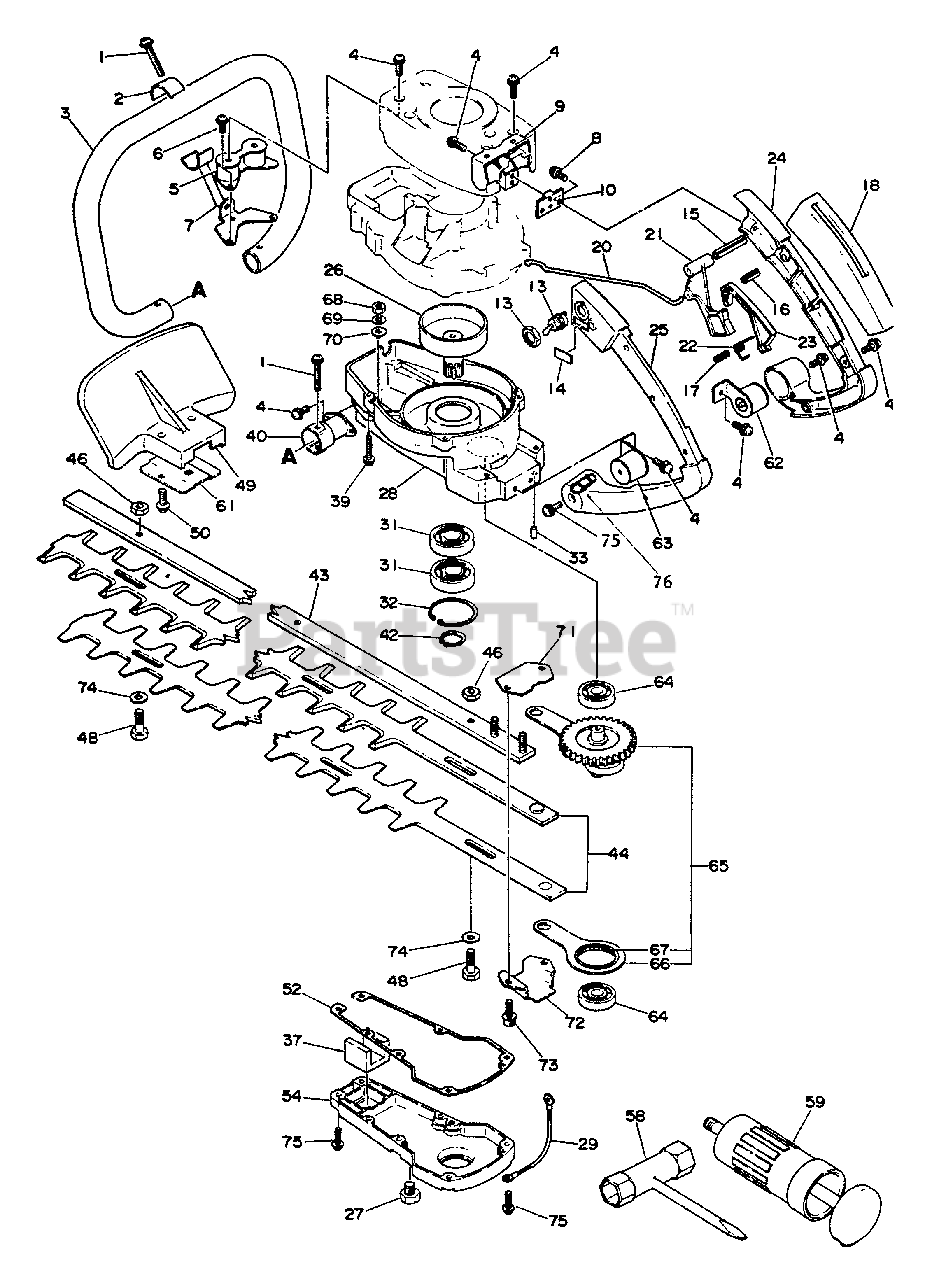

HC-160 A - Echo Hedge Trimmer Gear Case, Handles, Blades, Throttle, Tools Parts Diagram

Hedge Trimmer

Gear Case, Handles, Blades, Throttle, Tools Parts Diagram

  • Title

1

Echo 90024204030

SCREW - 4X30

$0.99

$

In Stock, Qty 14

0

2

Echo 35164101360

PLATE

$3.49

$

Usually ships in 2-4 days

0

3

Echo 35161001360

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

4

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

5

Echo 35160501360

CUSHION

$14.99

$

Usually ships in 2-4 days

0

6

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

7

Echo 35161301361

BRACKET, HANDLE

$14.99

$

Usually ships in 2-4 days

0

8

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 6

0

9

Echo 35110501360

CUSHION

$15.99

$

Usually ships in 2-4 days

0

10

Echo 35112601360

PLATE
(Superseded to Discontinued)

$

$

Not available

13

Echo 16340002160

IGNITION SWITCH KIT

$8.49

$

In Stock, only 3 left!

0

14

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 7

0

15

Echo 90034050032

PIN - SPRING -- 5X32
(Superseded to Discontinued)

$

$

Not available

16

Echo 90034040016

PIN - SPRING -- 4X16
(Superseded to Discontinued)

$

$

Not available

17

Echo 90034030014

PIN - SPRING -- 3X14
(Superseded to Discontinued)

$

$

Not available

18

Echo 35111101360

GRIP

$6.49

$

Usually ships in 2-4 days

0

20

Echo 17801101360

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 17801001360

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

22

Echo 17809101360

SPRING

$1.99

$

Usually ships in 2-4 days

0

23

Echo 17809001360

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

24

Echo 35111003060

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

25

Echo 35112903060

HANDLE - REAR
(Superseded to Discontinued)

$

$

Not available

26

Echo 17500501261

DRUM, CLUTCH
(Superseded to 17500301261)

$82.99

$

Usually ships in 2-4 days

0

27

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

28

Echo 61041003060

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

29

Echo 16201001360

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

31

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

32

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

33

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

37

Echo 81042601260

SEAL, FELT

$

$

Currently unavailable

39

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

40

Echo 35160701360

CUSHION
(Superseded to Discontinued)

$

$

Not available

42

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

43

Echo 69911003060

SUPPORT, BLADE

$115.99

$

Usually ships in 2-4 days

0

44

Echo 69700003060

TRIMMER BLADE SET
(Superseded to Discontinued)

Note: Blade set not available. Order as Seperate items. Upper Blade P/N 69701003060 & Lower Blade P/N 69701103060

$

$

Not available

46

Echo 14571000230

LOCKNUT - 6
(Superseded to 90056000006)

$1.49

$

In Stock, Qty 20+

0

48

Echo 69911502062

BOLT

$4.99

$

In Stock, Qty 6

0

49

Echo 35180501360

GUARD
(Superseded to Discontinued)

$

$

Not available

50

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

52

Echo 61041401260

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

54

Echo 61041102060

LID, GEAR CASE
(Superseded to 61041102061)

$

$

Not available

58

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

59

Echo 88030001260

PUMP, GREASE
(Superseded to Discontinued)

$

$

Not available

61

Echo 35183303060

PLATE

$7.99

$

Usually ships in 2-4 days

0

62

Echo 35110710531

CUSHION
(Superseded to Discontinued)

$

$

Not available

63

Echo 35190710531

CUSHION
(Superseded to Discontinued)

$

$

Not available

64

Echo 90081006200

BEARING, BALL - 6200

$10.99

$

Usually ships in 2-4 days

0

65

Echo 61030201260

GEAR ASSY
(Superseded to 61030201261)

$

$

Not available

66

Echo 61030701260

CONNECTING ROD ASSY
(Superseded to 61030701261)

$

$

Not available

67

Echo 61032701260

BEARING, NEEDLE
(Superseded to 61032701261)

$19.99

$

In Stock, Qty 12

0

68

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

69

Echo 90060500006

LOCKWASHER - 6

$0.99

$

In Stock, only 2 left!

0

70

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

71

Echo 61044001260

PLATE, GUIDE
(Superseded to Discontinued)

$

$

Not available

72

Echo 61044102060

GUIDE
(Superseded to Discontinued)

$

$

Not available

73

Echo 90016205014

SCREW - 5X14

$1.49

$

In Stock, Qty 20+

0

74

Echo 69911801261

WASHER

$0.99

$

In Stock, Qty 12

0

75

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

76

Echo 35113510530

SPACER
(Superseded to Discontinued)

$

$

Not available
