HC-160 A - Echo Hedge Trimmer Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

Hedge Trimmer

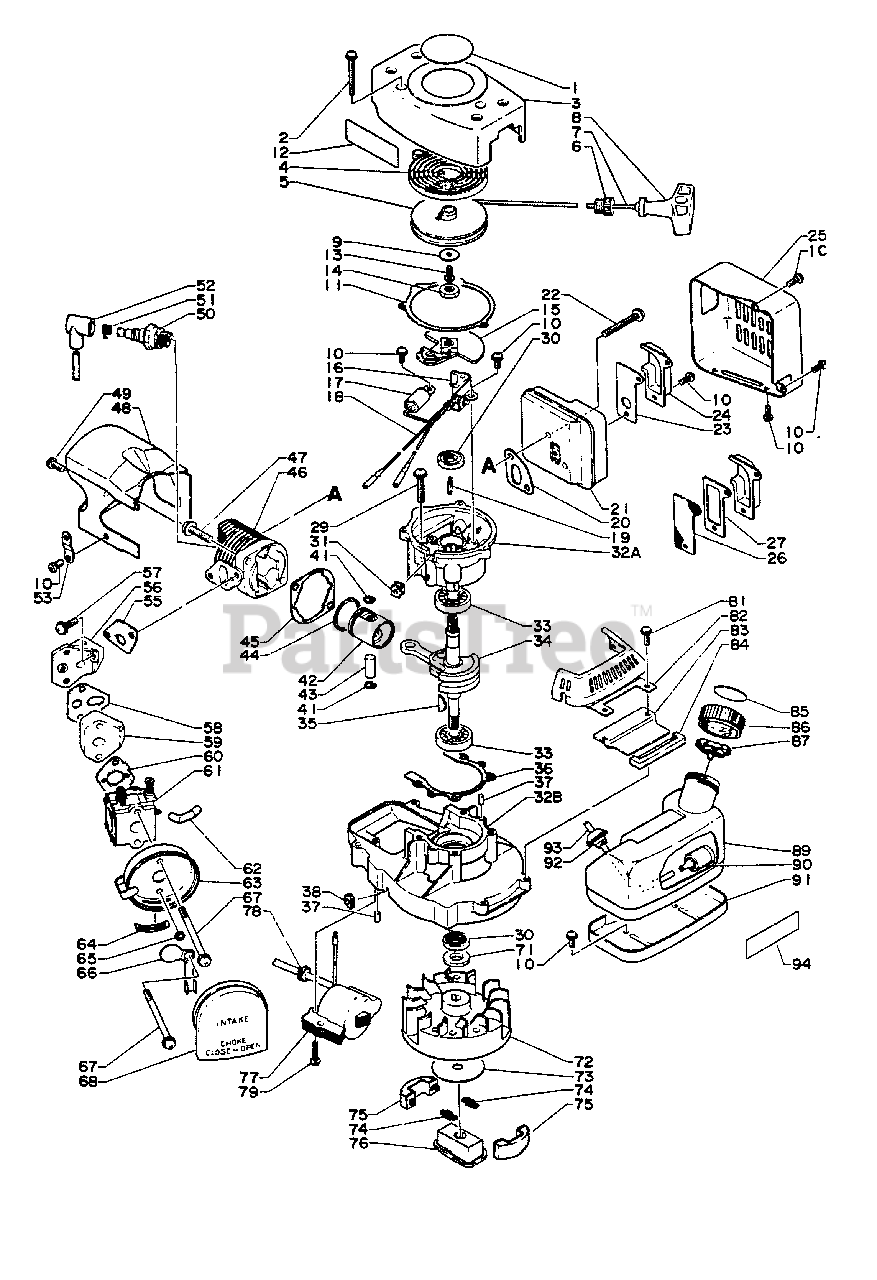

Engine,Crankcase,Ignition,Starter,Intake,Exhaust,Air Cleaner,Fuel Sys Parts Diagram

  • Title

1

Echo 89011206031

LABEL - ECHO
(Superseded to 89011844330)

$0.99

$

In Stock, Qty 8

0

2

Echo 90024204040

SCREW - 4X40

$0.99

$

Usually ships in 2-4 days

0

Echo 17720001360

STARTER ASSY
(Superseded to 17720001361)

Note: Includes Items 3 - 10

$

$

Not available

3

Echo 17720901360

CASE, STARTER
(Superseded to Discontinued)

$

$

Not available

4

Echo 17722006530

SPRING, REWIND

$13.99

$

In Stock, Qty 9

0

5

Echo 17721504920

REEL, ROPE
(Superseded to Discontinued)

$

$

Not available

6

Echo 17722705330

GUIDE, ROPE
(Superseded to Discontinued)

$

$

Not available

7

Echo 17722606530

ROPE, STARTER - 3X850

Note: RePower BULK OPTION: 99944445000

$6.49

$

In Stock, Qty 13

0

8

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 20+

0

9

Echo 17721404630

WASHER

$0.99

$

In Stock, Qty 8

0

13

Echo 90024104010

SCREW - 4X10
(Superseded to 90024204010)

$0.99

$

In Stock, Qty 10

0

10

Echo 90024204010

SCREW - 4X10

$0.99

$

In Stock, Qty 10

0

11

Echo 10061504920

GASKET, STARTER
(Superseded to 10061504921)

$

$

Not available

12

Echo 89016003930

LABEL - CAUTION
(Superseded to 89016002960)

$

$

Not available

14

Echo 90050200008

NUT - 8

$0.99

$

In Stock, only 2 left!

0

15

Echo 17730504920

STARTER PAWL ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo 15010104920

CONTACT POINT SET
(Superseded to Discontinued)

$

$

Not available

17

Echo 15012704920

CONDENSER
(Superseded to Discontinued)

$

$

Not available

18

Echo 15050506320

LEAD - GROUND

$5.99

$

Usually ships in 2-4 days

0

19

Echo 15613403730

PAD, OIL
(Superseded to Discontinued)

$

$

Not available

20

Echo 14551004920

GASKET, EXHAUST
(Superseded to 14551021930)

$2.49

$

Usually ships in 2-4 days

0

21

Echo 14580606320

CASE, MUFFLER
(Superseded to Discontinued)

$

$

Not available

22

Echo 90024205040

SCREW - 5X40

$0.99

$

In Stock, Qty 7

0

23

Echo 14587506320

GUIDE, EXHAUST - INNER
(Superseded to Discontinued)

Note: OPTIONAL

$

$

Not available

24

Echo 14587601360

GUIDE, EXHAUST

$2.49

$

Usually ships in 2-4 days

0

25

Echo 14562101360

COVER, EXHAUST

$17.99

$

Usually ships in 2-4 days

0

26

Echo 14586206320

SCREEN, SPARK ARRESTOR
(Superseded to 14586206321)

$1.99

$

Usually ships in 2-4 days

0

27

Echo 14586306320

RETAINER, SCREEN
(Superseded to 14580921930)

$4.49

$

Usually ships in 2-4 days

0

29

Echo 90024205030

SCREW - 5X30

$0.99

$

In Stock, only 2 left!

0

30

Echo 10021305930

SEAL, OIL

$5.49

$

In Stock, only 1 left!

0

31

Echo 15011404920

GROMMET

$1.49

$

In Stock, only 1 left!

0

32

Echo 10020001360

CRANKCASE KIT
(Superseded to 10020001361)

Note: Includes 37

$

$

Not available

37

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

33

Echo 90081036200

BEARING, BALL - 6200
(Superseded to Discontinued)

$

$

Not available

34

Echo 10010004921

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

35

Echo 10014200330

KEY

$1.49

$

Usually ships in 2-4 days

0

36

------------------

GASKET, CRANKCASE

Note: Use Gasket Kit P/N 88900001361

$

$

Not available

38

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

41

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

42

Echo 10001002160

PISTON
(Superseded to 10000002160)

$

$

Not available

43

Echo 10001304920

PIN, PISTON
(Superseded to Discontinued)

$

$

Not available

44

Echo 10001102160

RING, PISTON
(Superseded to Discontinued)

$

$

Not available

45

------------------

GASKET, CYLINDER

Note: Use Gasket Kit P/N 88900001361

$

$

Not available

46

Echo 10103402161

CYLINDER
(Superseded to 10103409220)

$

$

Not available

47

Echo 90024206020

SCREW - 6X20

$0.99

$

In Stock, Qty 6

0

49

Echo 90024205010

SCREW - 5X10

$0.99

$

In Stock, Qty 20+

0

48

Echo 10151401360

COVER, ENGINE
(Superseded to Discontinued)

$

$

Not available

50

Echo 15901000330

SPARK PLUG -- BM-6A

$3.49

$

Usually ships in 2-4 days

0

50

Echo 15901010130

SPARK PLUG -- BMR-6A

Note: OPTIONAL

$3.49

$

In Stock, Qty 5

0

51

Echo 15901100510

TERMINAL, SPARK PLUG CAP
(Superseded to 15901103432)

$1.49

$

In Stock, Qty 18

0

52

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

53

Echo 10151801360

BRACKET
(Superseded to Discontinued)

$

$

Not available

55

Echo 13001001360

GASKET, INTAKE
(Superseded to 13001001361)

$

$

Not available

56

Echo 13001301360

BASE, INSULATOR
(Superseded to Discontinued)

$

$

Not available

57

Echo 90024205016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

58

Echo 13002201360

GASKET, INTAKE
(Superseded to 13002201361)

$

$

Not available

59

Echo 13001701360

INSULATOR, INTAKE

$4.99

$

Usually ships in 2-4 days

0

60

Echo 13001604921

GASKET, INTAKE
(Superseded to 13001604922)

$

$

Not available

61

Echo 12300001360

CARBURETOR WA-89
(Superseded to Discontinued)

$

$

Not available

62

Echo 13011001360

PIPE
(Superseded to Discontinued)

$

$

Not available

63

Echo 13030101360

CASE, AIR FILTER

Note: Includes 64

$6.99

$

Usually ships in 2-4 days

0

64

Echo 17881006530

GROMMET

$1.99

$

Usually ships in 2-4 days

0

65

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

66

Echo 17851501360

SHUTTER, CHOKE

$2.99

$

Usually ships in 2-4 days

0

67

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

68

Echo 13031004922

FILTER, AIR
(Superseded to 13031003060)

$

$

Not available

71

Echo 10013206530

WASHER

$2.49

$

Usually ships in 2-4 days

0

72

Echo 15020004920

FLYWHEEL
(Superseded to Discontinued)

$

$

Not available

73

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

74

Echo 17501806530

SPRING, CLUTCH

$1.99

$

In Stock, only 1 left!

0

75

Echo 17501704630

SHOE, CLUTCH
(Superseded to 17501704631)

$21.99

$

In Stock, only 2 left!

0

76

Echo 17501604920

HUB, CLUTCH

$12.99

$

In Stock, only 1 left!

0

77

Echo 15012604920

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

78

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 6

0

79

Echo 90024204020

SCREW - 4X20

$0.99

$

In Stock, Qty 20+

0

81

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

82

Echo 10061601360

COVER

$7.99

$

Usually ships in 2-4 days

0

83

Echo 13191003060

BRACKET, FUEL TANK

$2.99

$

Usually ships in 2-4 days

0

84

Echo 13192007930

CUSHION
(Superseded to Discontinued)

$

$

Not available

86

Echo 13160022130

CAP ASSY
(Superseded to Discontinued)

Note: Includes 85 & 87

$

$

Not available

85

Echo 89015415130

LABEL - FUEL MIX

$1.49

$

In Stock, only 1 left!

0

87

Echo 13131404930

VENT
(Superseded to Discontinued)

$

$

Not available

89

Echo 13101001360

TANK, FUEL
(Superseded to Discontinued)

$

$

Not available

90

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

91

Echo 13191801360

BRACKET, FUEL TANK

$6.49

$

Usually ships in 2-4 days

0

92

Echo 13211504920

GROMMET

$1.49

$

In Stock, Qty 20+

0

93

Echo 13201002160

PIPE, FUEL - CORRUGATED

$6.99

$

In Stock, only 4 left!

0

94

Echo 89011503060

LABEL - MODEL

$1.49

$

Usually ships in 2-4 days

0

Echo 88900001361

GASKET, CYLINDER
(Superseded to 88900001362)

$7.99

$

Usually ships in 2-4 days

0
