HC-155 - Echo Hedge Trimmer (SN: U07915001001 - U07915999999) Starter Parts Diagram

Hedge Trimmer

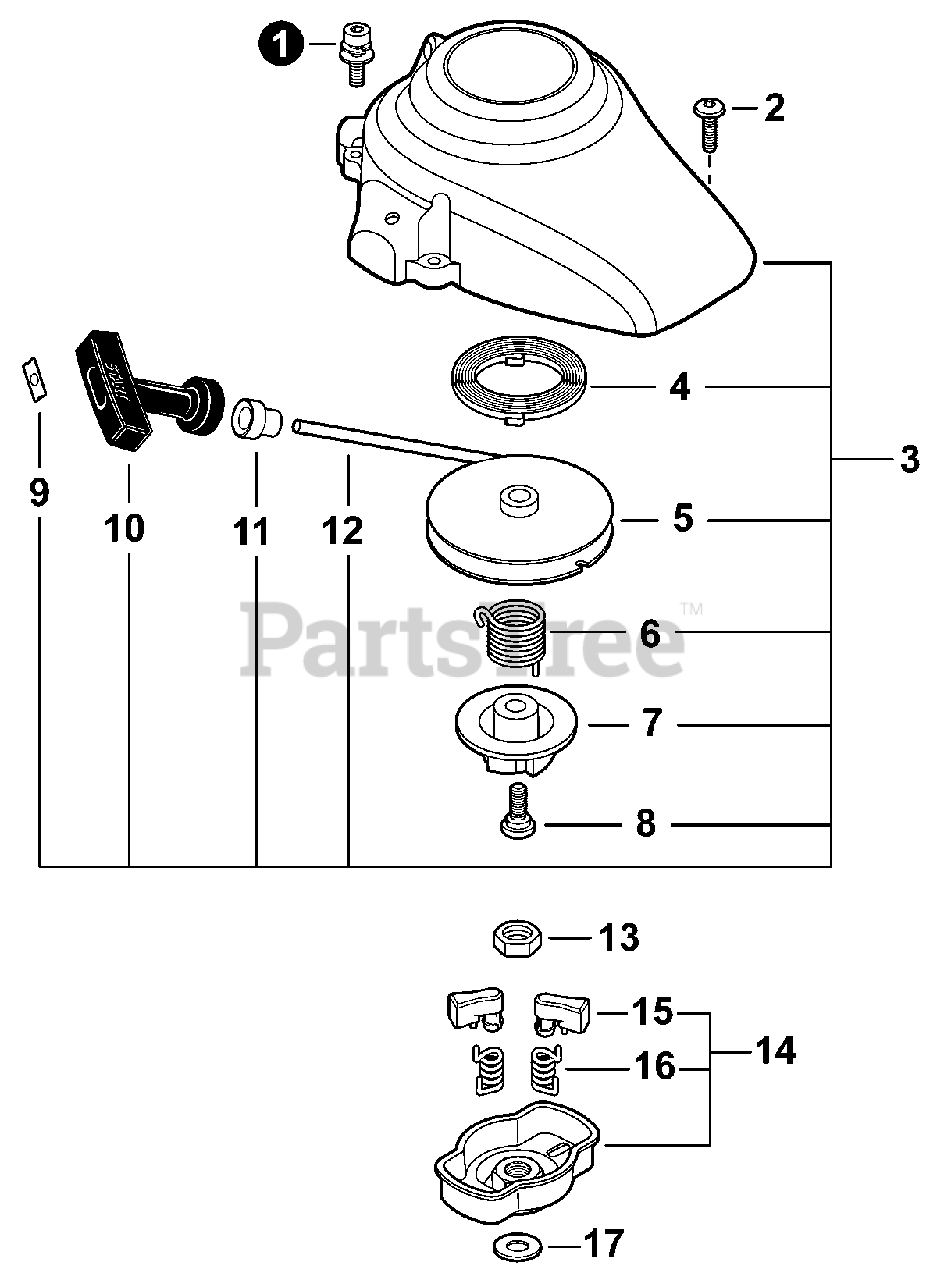

Starter Parts Diagram

  • Title

1

Echo 90016304016

BOLT 4×16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

2

Echo V202000030

BOLT 4×12

$1.49

$

In Stock, Qty 5

0

3

Echo A051001111

STARTER ASSY, RECOIL

Note: Includes ITEMS 4-12

$54.99

$

Usually ships in 2-4 days

0

4

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

5

Echo P022034080

REEL, ROPE

$7.49

$

Usually ships in 2-4 days

0

6

Echo V452000150

SPRING, TORSION

$5.99

$

In Stock, only 2 left!

0

7

Echo P022034090

PAWL CATCHER

$6.49

$

Usually ships in 2-4 days

0

8

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

9

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

10

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

11

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

12

Echo P022008260

ROPE, STARTER 3×700

$

$

Not available

13

Echo 90051200008

NUT 8

$1.49

$

Usually ships in 2-4 days

0

14

Echo A052000210

PULLEY ASSY, STARTER

Note: Includes ITEMS 15-16

$14.99

$

Usually ships in 2-4 days

0

15

Echo P022020030

PAWL, STARTER

$2.99

$

In Stock, Qty 9

0

16

Echo P022007980

SPRING, RETURN

$3.99

$

In Stock, Qty 6

0

17

Echo 90060000008

WASHER 8.5×16×1.2

$0.99

$

In Stock, Qty 7

0
