HC-155 - Echo Hedge Trimmer (SN: U07915001001 - U07915999999) Fuel System Parts Diagram

Hedge Trimmer

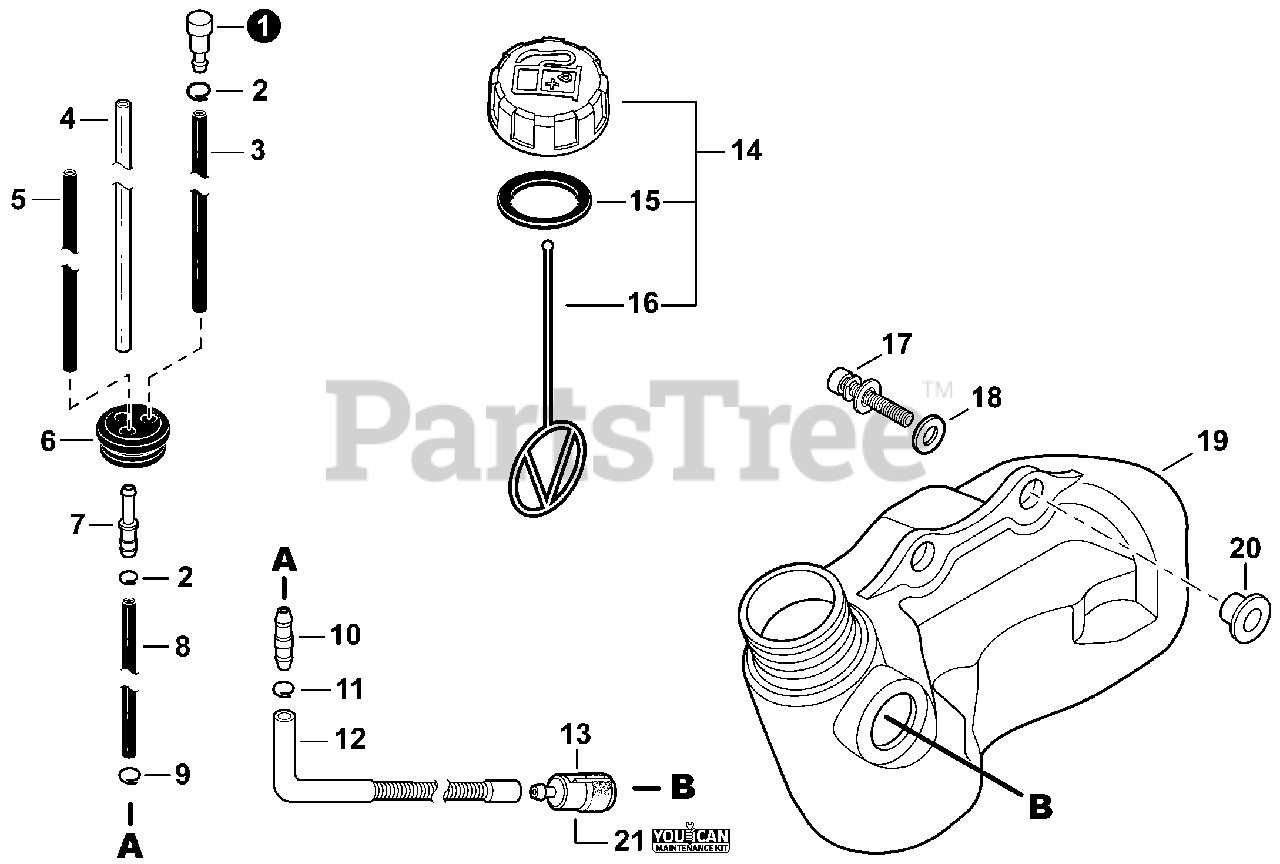

Fuel System Parts Diagram

  • Title

1

Echo A356000031

VENT ASSY

$7.99

$

In Stock, Qty 20+

0

2

Echo V490001230

CLIP Ø6.5 MM

$0.99

$

In Stock, Qty 20+

0

3

Echo V471003680

PIPE, FUEL 3×6×50 BLACK

$0.99

$

In Stock, Qty 10

0

4

Echo 13201040830

PIPE, FUEL 3×6×75 CLEAR

$1.99

$

In Stock, Qty 20+

0

5

Echo V471003670

PIPE, FUEL 3×5×61 BLACK
(Superseded to V471005590)

$3.99

$

Usually ships in 2-4 days

0

6

Echo 13211555930

GROMMET, FUEL
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

7

Echo V186000520

CONNECTOR, PIPE Ø5×Ø3.5

$0.99

$

In Stock, Qty 20+

0

8

Echo V471001180

PIPE, FUEL 3×6×35 BLACK
(Superseded to V471001181)

$1.99

$

In Stock, Qty 14

0

9

Echo V490001240

CLIP Ø6

$0.99

$

In Stock, Qty 15

0

10

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, only 4 left!

0

11

Echo 43741119830

CLIP 6.6 MM

$0.99

$

In Stock, only 1 left!

0

12

Echo 13201212361

PIPE, FUEL 3×7×100 FLEXIBLE
(Superseded to 13201212362)

$3.99

$

In Stock, Qty 20+

0

13

Echo A369000480

FILTER, FUEL

$5.49

$

In Stock, Qty 20+

0

14

Echo P021040430

CAP ASSY, FUEL

Note: Includes ITEMS 15-16

$5.99

$

In Stock, Qty 20+

0

15

Echo V107000150

GASKET, FUEL CAP

$4.49

$

In Stock, Qty 20+

0

16

Echo A365000060

CONNECTOR, CAP L= 123

$1.49

$

In Stock, Qty 10

0

17

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

18

Echo 90060300005

WASHER 5.5×12×0.8

$0.99

$

In Stock, Qty 20+

0

19

Echo A350000810

TANK, FUEL
(Superseded to A350002621)

$28.99

$

Usually ships in 2-4 days

0

20

Echo V353000231

COLLAR 5

$3.99

$

Usually ships in 2-4 days

0

21

Echo 90152Y

TUNE-UP KIT - YOUCAN™
