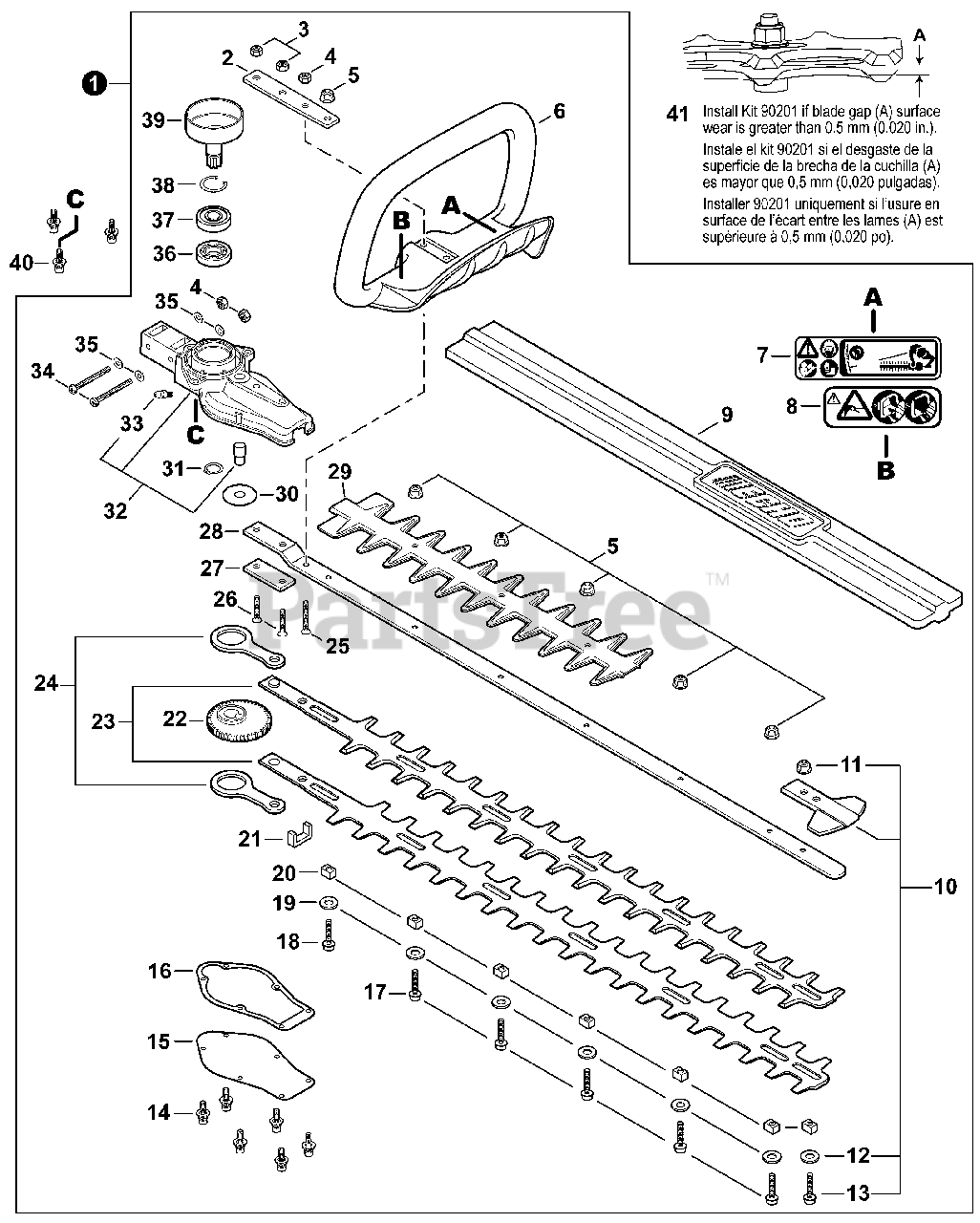

HC-155 - Echo Hedge Trimmer (SN: U07915001001 - U07915999999) Cutting Head Parts Diagram

Hedge Trimmer

Cutting Head Parts Diagram

  • Title

1

Echo 9001016

CUTTING HEAD KIT

Note: Includes items 2-39

$230.99

$

In Stock, Qty 5

0

2

Echo V150003830

PLATE, SUPPORT

$3.99

$

Usually ships in 2-4 days

0

3

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

4

Echo 90056000005

NUT, LOCK M5

$1.49

$

In Stock, Qty 20+

0

5

Echo 9210805000

NUT, FLANGE M5

$0.99

$

In Stock, Qty 20+

0

6

Echo C400000532

HANDLE, FRONT
(Superseded to C400000533)

$30.99

$

In Stock, only 1 left!

0

7

Echo X505002610

LABEL, CAUTION - ISO

$3.99

$

Usually ships in 2-4 days

0

8

Echo X505000290

LABEL, CAUTION

$2.49

$

In Stock, only 1 left!

0

9

Echo X495000490

SCABBARD 26.5"

$8.99

$

Usually ships in 2-4 days

0

10

Echo 99988802000

TIP GUARD KIT

Note: Includes items 11-13

$9.99

$

In Stock, only 1 left!

0

11

Echo 9210805000

NUT, FLANGE M5

$0.99

$

In Stock, Qty 20+

0

12

Echo 17721421860

WASHER 5

$2.49

$

In Stock, Qty 20+

0

13

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

14

Echo 90016204010

BOLT 4×10

$1.49

$

In Stock, Qty 15

0

15

Echo 61041105361

COVER, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

16

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 19

0

17

Echo 90010605020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

18

Echo 90016205040

BOLT 5×40

$1.49

$

In Stock, Qty 9

0

19

Echo 17721421860

WASHER 5

$2.49

$

In Stock, Qty 20+

0

20

Echo V353000250

GUIDE, BLADE 5

$5.49

$

In Stock, Qty 20+

0

21

Echo 61042504560

SEAL

$1.49

$

In Stock, Qty 20+

0

22

Echo 61031204560

GEAR

$76.99

$

In Stock, only 3 left!

0

23

Echo X411000760

CUTTER 24"

$55.99

$

In Stock, Qty 6

0

24

Echo C532000121

ROD, CONNECTING

$23.99

$

In Stock, only 3 left!

0

25

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 20+

0

26

Echo 90021206025

SCREW 6×25

$0.99

$

In Stock, Qty 14

0

27

Echo 61044004560

PLATE, EYE

$2.49

$

In Stock, Qty 7

0

28

Echo X425000490

SUPPORT, BLADE 24"

$58.99

$

In Stock, only 1 left!

0

29

Echo X431000050

GUARD, CUTTER BLADE
(Superseded to X431000260)

$11.99

$

In Stock, only 1 left!

0

30

Echo 61035004560

WASHER

$1.49

$

In Stock, only 4 left!

0

31

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 1 left!

0

32

Echo 61040705361

GEAR CASE ASSY

Note: Includes item 33

$105.99

$

In Stock, only 1 left!

0

33

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

34

Echo 90022005045

SCREW 5×45

$0.99

$

Usually ships in 2-4 days

0

35

Echo 90060000005

WASHER, FLAT 5.5×10×0.8

$0.99

$

In Stock, Qty 20+

0

36

Echo 90081036202

BEARING, BALL 6202

$9.99

$

In Stock, Qty 6

0

37

Echo 90081336202

BEARING, BALL 6202

$10.99

$

In Stock, only 1 left!

0

38

Echo 90070200035

RING, SNAP 35

$1.99

$

In Stock, Qty 15

0

39

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

0

40

Echo 90016205020

BOLT 5×20

$1.49

$

In Stock, Qty 20+

0

41

Echo 90201

BLADE KIT, ADJUSTABLE

$14.99

$

Usually ships in 2-4 days

0
