HC-155 - Echo Hedge Trimmer (SN: S83713001001 - S83713999999) Fuel System S/N: S83713002147 - S83713999999 Parts Diagram

Hedge Trimmer

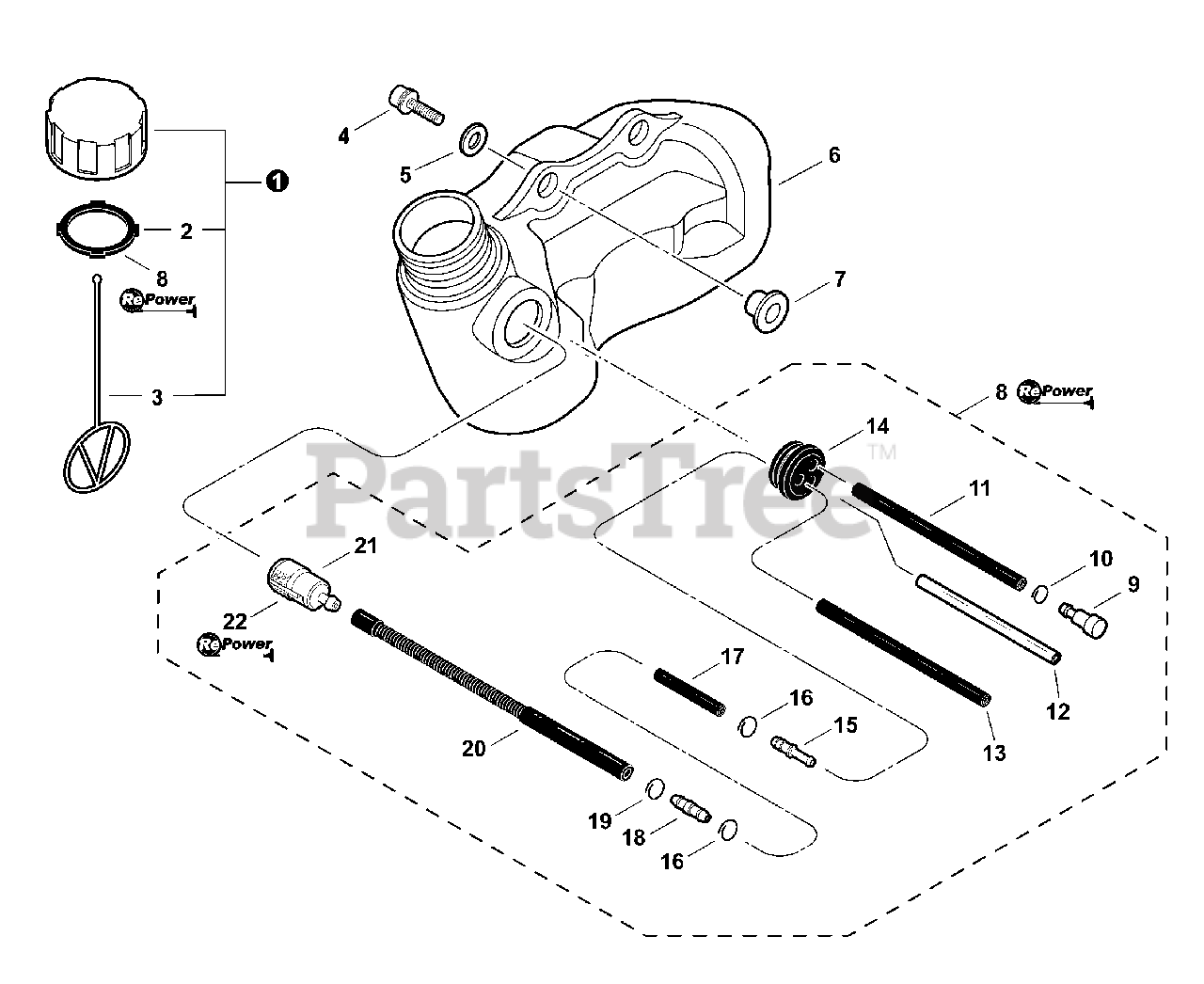

Fuel System S/N: S83713002147 - S83713999999 Parts Diagram

  • Title

1

Echo P021040430

CAP ASSY

Note: Includes Items 2-3

$5.99

$

In Stock, Qty 20+

0

2

Echo V107000150

GASKET, CAP

$4.49

$

In Stock, Qty 20+

0

3

Echo A365000060

CONNECTOR, CAP

$1.49

$

In Stock, Qty 10

0

4

Echo 90016205020

SCREW - 5×20

$1.49

$

In Stock, Qty 20+

0

5

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

6

Echo A350000810

TANK, FUEL
(Superseded to A350002621)

$28.99

$

Usually ships in 2-4 days

0

7

Echo V353000231

COLLAR

$3.99

$

Usually ships in 2-4 days

0

8

Echo 90136BP

RePower FUEL SYSTEM KIT
(Superseded to 90136)

Note: Includes Items 9-21

$

$

Not available

9

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

10

Echo V490001240

CLIP - 6

$0.99

$

In Stock, Qty 15

0

11

Echo V471003680

PIPE - 3×6×50 -- BLACK

$0.99

$

In Stock, Qty 10

0

12

Echo 13201040830

PIPE - 3×6×75 -- CLEAR

$1.99

$

In Stock, Qty 20+

0

13

Echo V471003670

PIPE, UPPER - 3×5×61 -- BLACK
(Superseded to V471005590)

$3.99

$

Usually ships in 2-4 days

0

14

Echo 13211555930

GROMMET
(Superseded to 13211555931)

$2.49

$

In Stock, Qty 20+

0

15

Echo V186000520

CONNECTOR, FUEL PIPE

$0.99

$

In Stock, Qty 20+

0

16

Echo V490001230

CLIP - 6.5

$0.99

$

In Stock, Qty 20+

0

17

Echo V471001180

PIPE - 3×6×35 -- BLACK
(Superseded to V471001181)

$1.99

$

In Stock, Qty 14

0

18

Echo V186000510

CONNECTOR, PIPE

$1.99

$

In Stock, only 4 left!

0

19

Echo 43741119830

CLIP - 6.6

$0.99

$

In Stock, only 1 left!

0

20

Echo 13201212361

PIPE, FUEL - CORRUGATED
(Superseded to 13201212362)

$3.99

$

In Stock, Qty 20+

0

21

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

22

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 20+

0

22

Echo 90152

RePower TUNE-UP KIT
(Superseded to 90152Y)

$20.99

$

In Stock, Qty 20+

0
