HC-155 - Echo Hedge Trimmer (SN: S76212001001 - S76212999999) Rear Handle, Ignition Switch, Throttle Cable Parts Diagram

Hedge Trimmer

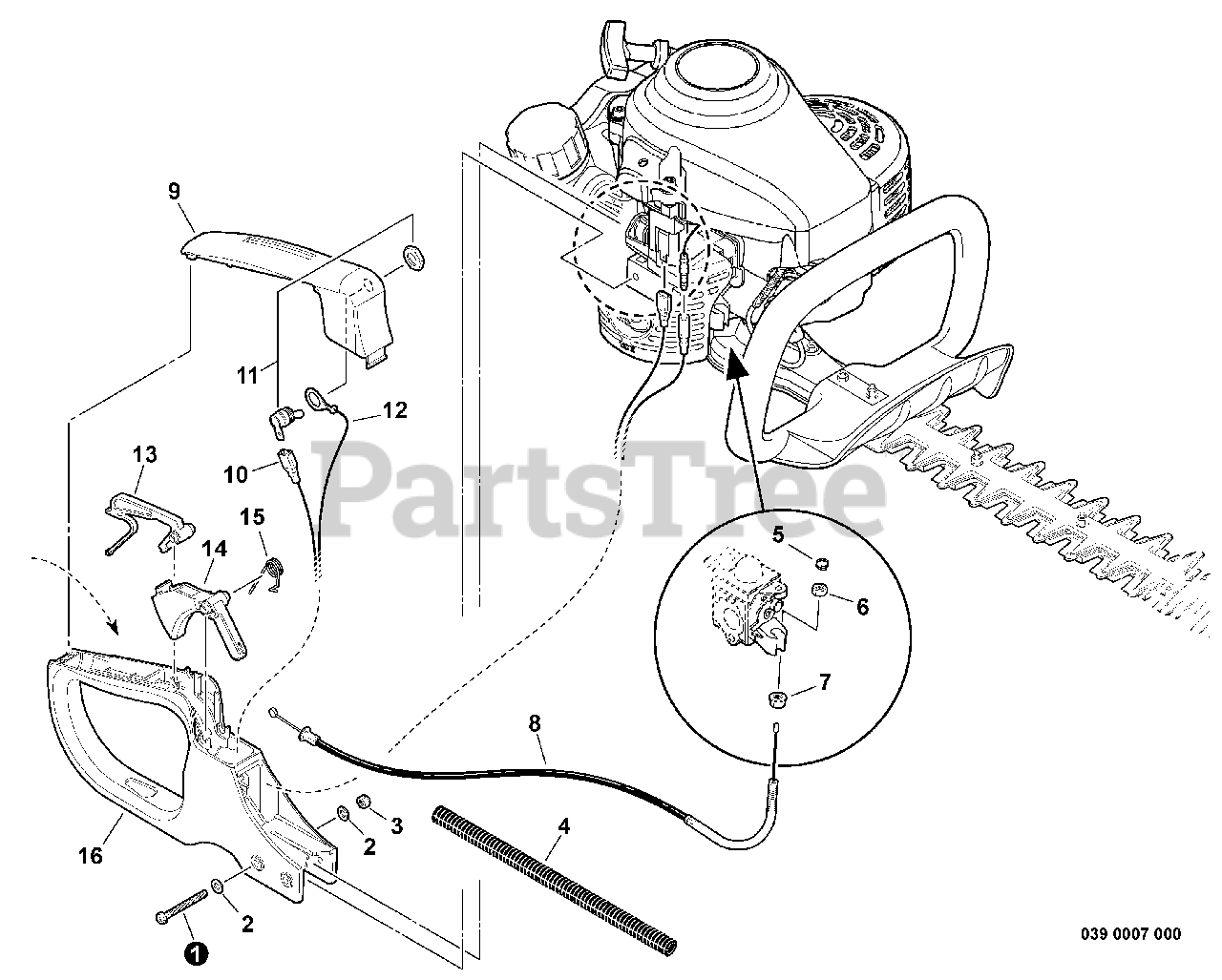

Rear Handle, Ignition Switch, Throttle Cable Parts Diagram

  • Title

1

Echo 90022005045

SCREW - 5X45

$0.99

$

Usually ships in 2-4 days

0

2

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

4

Echo V475004150

TUBE, PROTECTIVE - CORRUGATED

$2.49

$

Usually ships in 2-4 days

0

5

Echo V490001100

CLIP

$0.99

$

In Stock, Qty 12

0

6

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 5

0

7

Echo 90051800006

NUT - 6 -- FLANGE

$1.49

$

In Stock, Qty 14

0

8

Echo V430002200

CABLE, THROTTLE

$9.99

$

In Stock, Qty 7

0

9

Echo C411000030

COVER, HANDLE

$1.99

$

In Stock, Qty 14

0

10

Echo V485001030

LEAD - IGNITION

$4.49

$

Usually ships in 2-4 days

0

11

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, Qty 11

0

12

Echo V485001110

LEAD - GROUND

$1.99

$

Usually ships in 2-4 days

0

13

Echo C460000120

LEVER, TRIGGER LOCKOUT

$1.49

$

In Stock, Qty 11

0

14

Echo C450000330

TRIGGER, THROTTLE

$1.49

$

In Stock, Qty 19

0

15

Echo V452000390

SPRING, TRIGGER
(Superseded to V452000391)

$2.49

$

In Stock, Qty 20+

0

16

Echo C410000920

HANDLE - REAR
(Superseded to C410000921)

$17.99

$

Usually ships in 2-4 days

0
