HC-155 - Echo Hedge Trimmer (SN: S68011001001 - S68011999999) Starter, Engine Cover Parts Diagram

Hedge Trimmer

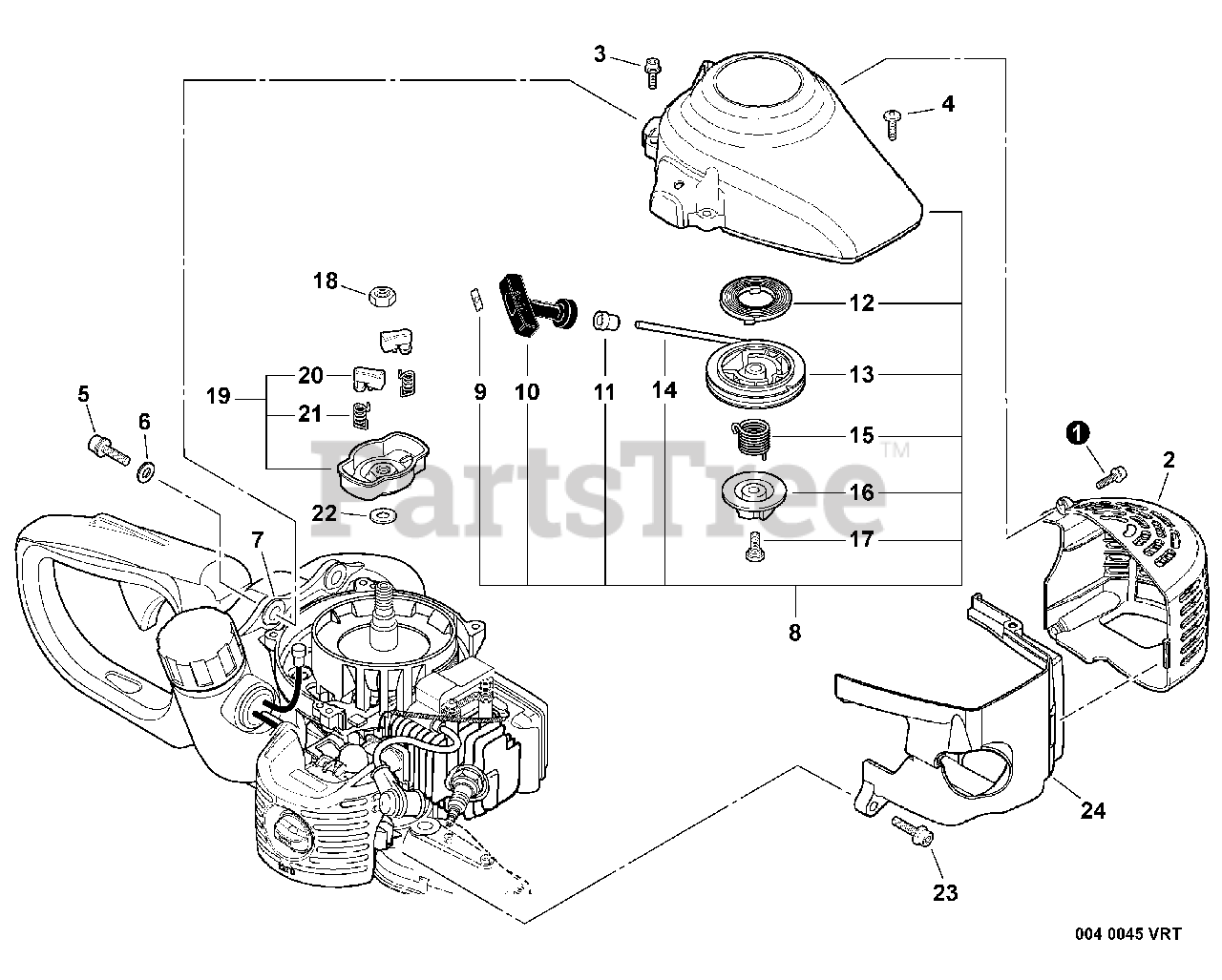

Starter, Engine Cover Parts Diagram

  • Title

1

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo A320000430

COVER, EXHAUST

$13.99

$

Usually ships in 2-4 days

0

3

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

4

Echo V202000030

SCREW - 4

$1.49

$

In Stock, Qty 5

0

5

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

6

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

7

Echo V353000231

COLLAR - 5

$3.99

$

Usually ships in 2-4 days

0

8

Echo A051001110

STARTER ASSY
(Superseded to A051001111)

Note: INCLUDES ITEMS 9-17

$54.99

$

Usually ships in 2-4 days

0

9

Echo 17724611120

RETAINER, ROPE
(Superseded to P022037670)

$2.49

$

In Stock, Qty 7

0

10

Echo 17722827030

GRIP, STARTER

$5.99

$

In Stock, Qty 20+

0

11

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

12

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

13

Echo P022006830

REEL, ROPE
(Superseded to P050009900)

$17.99

$

In Stock, Qty 20+

0

14

Echo P022008260

ROPE, STARTER - 3X700

Note: RePower BULK OPTION: 99944440000

$

$

Not available

15

Echo V452000150

SPRING

$5.99

$

In Stock, only 2 left!

0

16

Echo A507000030

CATCHER, PAWL

$7.99

$

Usually ships in 2-4 days

0

17

Echo 17723661830

SCREW
(Superseded to V253000310)

$1.99

$

In Stock, Qty 11

0

18

Echo 90051200008

NUT - LEFT HAND

$1.49

$

Usually ships in 2-4 days

0

19

Echo A052000210

STARTER PAWL ASSY

Note: INCLUDES ITEMS 20-21

$14.99

$

Usually ships in 2-4 days

0

20

Echo P022020030

PAWL, STARTER

$2.99

$

In Stock, Qty 9

0

21

Echo P022007980

SPRING, RETURN

$3.99

$

In Stock, Qty 6

0

22

Echo 90060000008

WASHER - 8

$0.99

$

In Stock, Qty 7

0

23

Echo 9111005016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

24

Echo A160000880

COVER, ENGINE

$15.99

$

Usually ships in 2-4 days

0
