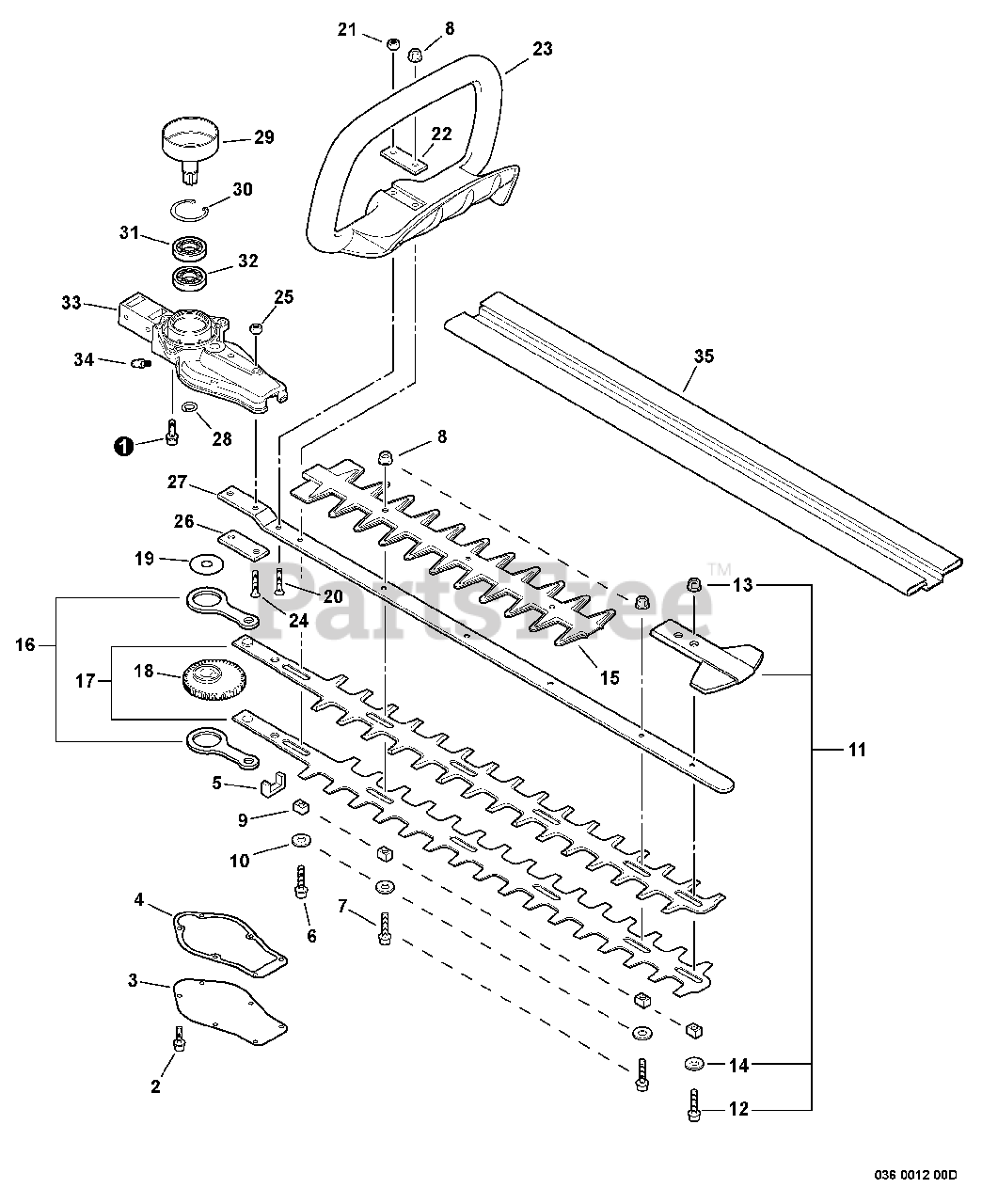

HC-155 - Echo Hedge Trimmer (SN: S68011001001 - S68011999999) Front Handle, Gear Case, Blades - 20" WITH Tip Guard Parts Diagram

Hedge Trimmer

Front Handle, Gear Case, Blades - 20" WITH Tip Guard Parts Diagram

  • Title
1

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

2

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

3

Echo 61041105361

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

4

Echo 61041405360

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 20+

0

5

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

6

Echo 90016205040

SCREW - 5X40

$1.49

$

In Stock, Qty 9

0

7

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

8

Echo 9210805000

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

9

Echo V353000250

GUIDE, BLADE

$5.49

$

In Stock, Qty 20+

0

10

Echo 17721421860

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

11

Echo 99988802000

TIP GUARD KIT

Note: Includes ITEMS 12-14

$9.99

$

In Stock, only 1 left!

0

12

Echo 90010605020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

13

Echo 9210805000

LOCKNUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 17721421860

WASHER - 6

$2.49

$

In Stock, Qty 20+

0

15

Echo X431000050

SHIELD, BLADE
(Superseded to X431000260)

$11.99

$

In Stock, only 1 left!

0

16

Echo C532000120

ROD, CONNECTING
(Superseded to C532000121)

$23.99

$

In Stock, only 4 left!

0

17

Echo X411000700

BLADE - 20" (50cm)

$38.99

$

Usually ships in 2-4 days

0

18

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

0

19

$1.49

$

In Stock, only 4 left!

0

20

Echo 90021205030

SCREW - 5X30

$0.99

$

In Stock, Qty 20+

0

21

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

22

$7.49

$

In Stock, only 1 left!

0

23

Echo C400000531

HANDLE - FRONT
(Superseded to C400000532)

$30.99

$

In Stock, only 1 left!

0

24

Echo 90021206025

SCREW - 6X25

$0.99

$

In Stock, Qty 14

0

25

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

26

$2.49

$

In Stock, Qty 7

0

27

Echo X425000470

SUPPORT, BLADE

$25.99

$

Usually ships in 2-4 days

0

28

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

0

29

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

0

30

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

31

Echo 90081336202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

0

32

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 8

0

33

Echo 61040705361

CASE, GEAR

$105.99

$

In Stock, only 1 left!

0

34

Echo 88011010860

FITTING, GREASE

$5.49

$

Usually ships in 2-4 days

0

31

Echo X495000480

COVER, BLADE - 20" (50cm)

$8.99

$

In Stock, Qty 14

0
