HC-152 - Echo Hedge Trimmer (SN: U27912001001 - U27912999999) Starter Parts Diagram

Hedge Trimmer

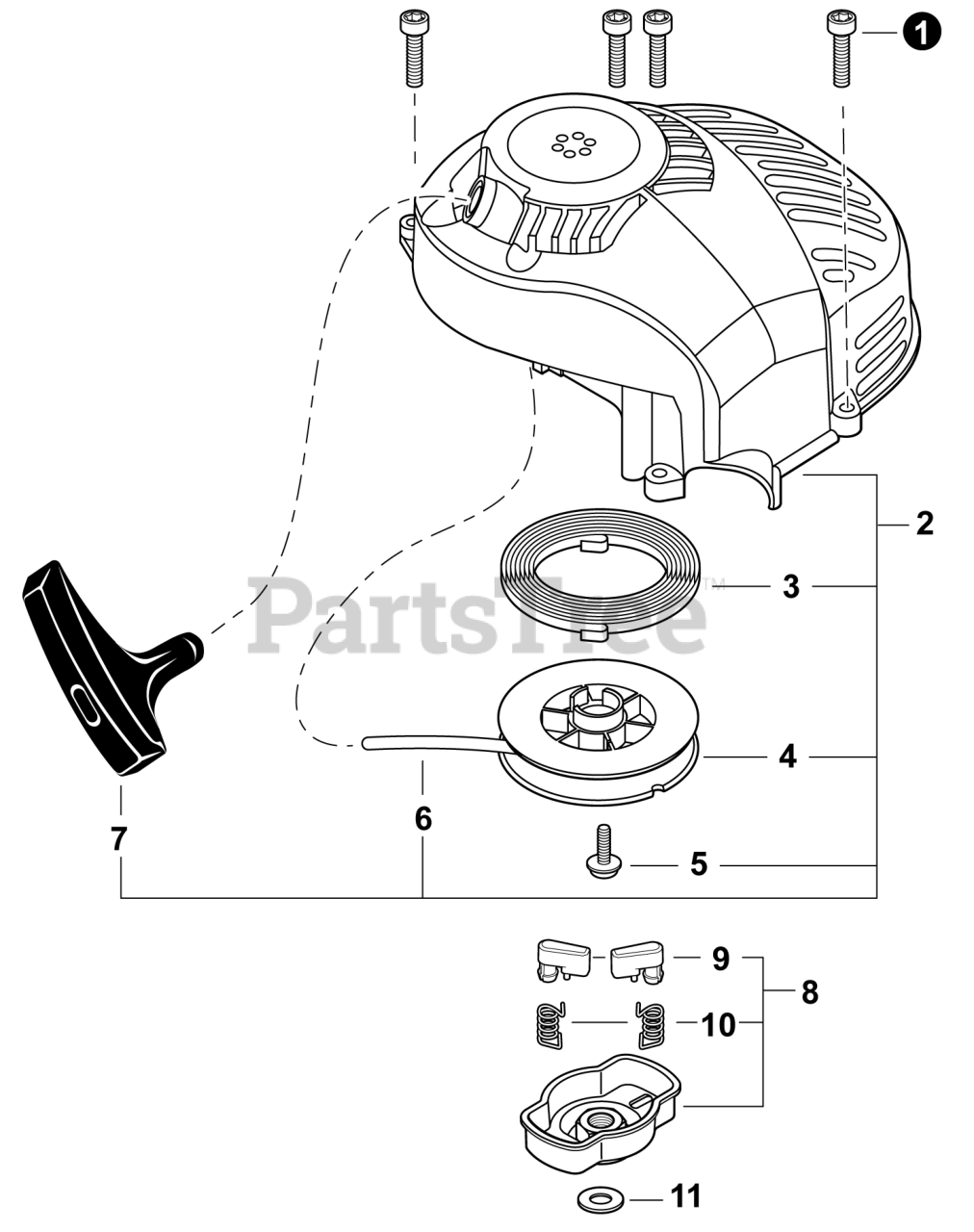

Starter Parts Diagram

  • Title
1

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0

2

Echo A051002590

STARTER ASSY, RECOIL

Note: Includes Items 3-7

$67.99

$

In Stock, only 1 left!

0

3

Echo 17722042030

SPRING, RECOIL
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

4

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

$3.49

$

In Stock, only 1 left!

0

6

Echo P022006231

ROPE, STARTER Ø3×850

$5.99

$

In Stock, only 1 left!

0

7

Echo P022036700

GRIP, STARTER

$9.49

$

In Stock, only 3 left!

0

8

Echo A052000160

PAWL ASSY, STARTER

Note: Includes Items 9-10

$9.99

$

In Stock, Qty 20+

0

9

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

10

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

11

Echo 90060500008

WASHER, SPRING 8

$0.99

$

In Stock, Qty 20+

0
