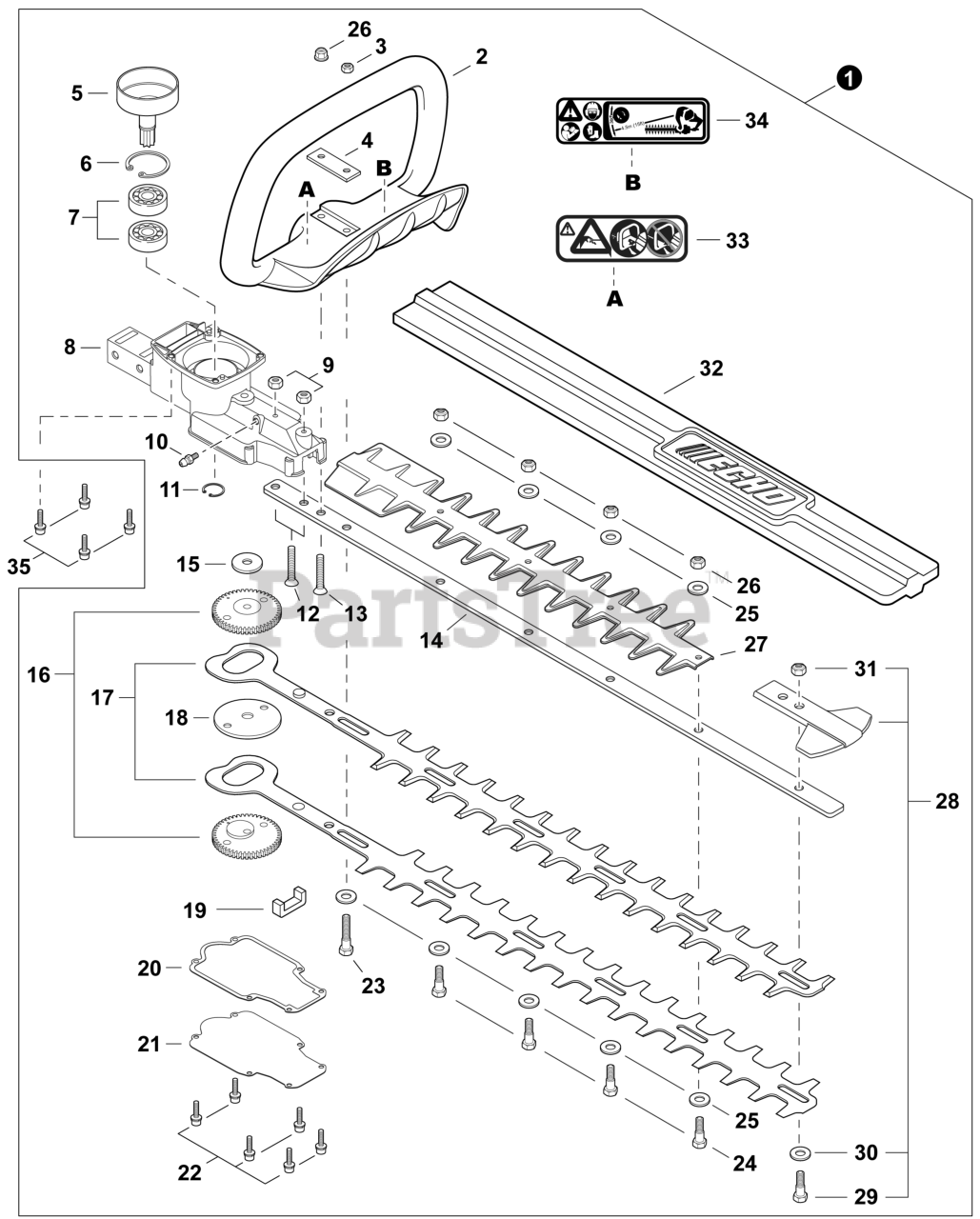

HC-152 - Echo Hedge Trimmer (SN: U27912001001 - U27912999999) Blades, Front Handle, Gear Case Parts Diagram

Hedge Trimmer

Blades, Front Handle, Gear Case Parts Diagram

  • Title
1

Echo 9001029

CUTTING HEAD KIT

Note: Includes Items 2-34

$194.99

$

In Stock, only 1 left!

0

2

Echo C400000533

HANDLE, FRONT

$30.99

$

In Stock, only 1 left!

0

3

Echo 9210805000

NUT, FLANGE M5

$0.99

$

In Stock, Qty 20+

0

4

Echo 35161105360

PLATE, EYE

$7.49

$

In Stock, only 1 left!

0

5

Echo 17500506560

DRUM, CLUTCH

$33.99

$

In Stock, Qty 13

0

6

Echo 90070200035

RING, SNAP 35

$1.99

$

In Stock, Qty 15

0

7

Echo 90087236202

BEARING, BALL 6202

$10.99

$

In Stock, only 1 left!

0

8

Echo C531000053

CASE, GEAR

$66.99

$

In Stock, only 4 left!

0

9

Echo 90050000006

NUT, HEX M6

$0.99

$

In Stock, Qty 20+

0

10

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

11

Echo 90070100014

RING, SNAP 14

$1.49

$

In Stock, only 1 left!

0

12

Echo 90021206030

SCREW 6×30

$1.49

$

In Stock, Qty 20+

0

13

Echo 90021205030

SCREW 5×30

$0.99

$

In Stock, Qty 20+

0

14

Echo X425000180

SUPPORT, BLADE

$26.99

$

In Stock, only 1 left!

0

15

Echo 68902506560

WASHER 30

$1.49

$

In Stock, only 2 left!

0

16

Echo V650000080

GEAR, SPUR

$53.99

$

In Stock, Qty 15

0

17

$41.99

$

In Stock, Qty 20+

0

18

Echo 68902505360

WASHER 50

$2.49

$

In Stock, Qty 5

0

$2.99

$

In Stock, Qty 10

0

20

Echo 61041406560

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

21

Echo 61041106561

COVER, GEAR CASE

$10.99

$

In Stock, only 4 left!

0

22

Echo V804000050

BOLT, TORX 4×12

$0.99

$

In Stock, Qty 20+

0

23

Echo 69911506560

BOLT M6×35

$2.99

$

In Stock, Qty 5

0

24

Echo 69911504660

BOLT 6×18

$2.49

$

In Stock, Qty 20+

0

25

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

26

$1.49

$

In Stock, Qty 20+

0

27

Echo 69912503061

GUARD, CUTTER BLADE

$10.99

$

In Stock, only 2 left!

0

28

Echo 99988802000

TIP GUARD KIT

Note: Includes Items 29-31

$9.99

$

In Stock, only 1 left!

0

29

Echo 69911504660

BOLT 6×18

$2.49

$

In Stock, Qty 20+

0

30

Echo 69911804560

WASHER 6.5×15.5×0.6

$0.99

$

In Stock, Qty 20+

0

31

$1.49

$

In Stock, Qty 20+

0

32

Echo X495000850

SCABBARD 24"

$9.49

$

Usually ships in 2-4 days

0

33

Echo X505000290

LABEL - CAUTION

$2.49

$

In Stock, only 1 left!

0

34

Echo X505002610

LABEL - CAUTION - ISO

$3.99

$

Usually ships in 2-4 days

0

35

Echo V804000060

BOLT, TORX 4×16

$0.99

$

In Stock, Qty 20+

0
