HC-152 - Echo Hedge Trimmer (SN: S95026001001 - S95026999999) Carburetor Parts Diagram

Hedge Trimmer

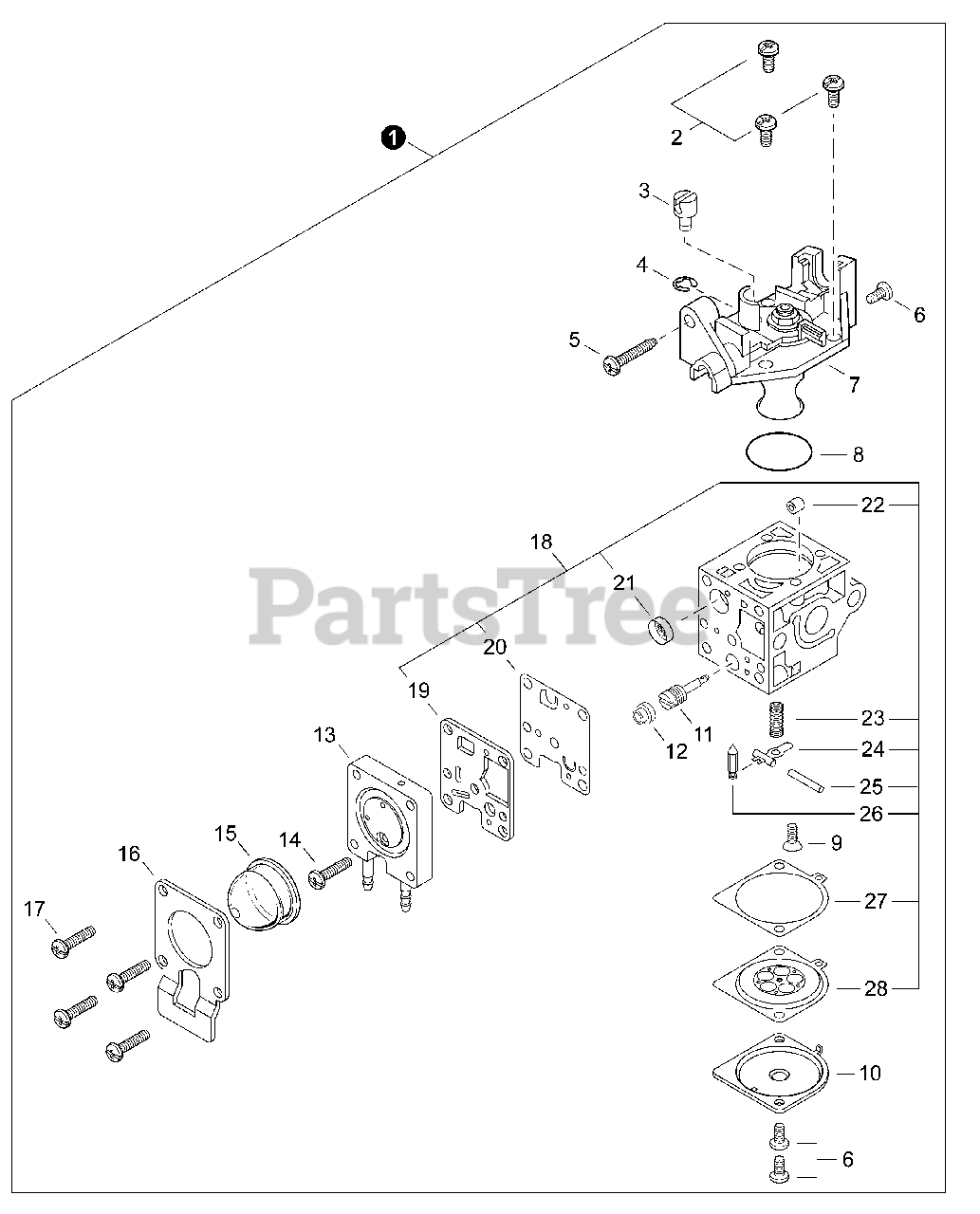

Carburetor Parts Diagram

  • Title

1

Echo A021004031

CARBURETOR - RB-K118
(Superseded to A021004720)

Note: Includes Items 2-28

$74.99

$

Usually ships in 2-4 days

0

2

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

3

Echo P005003070

SWIVEL

$8.49

$

Usually ships in 2-4 days

0

4

Echo P005000190

E-RING

$0.99

$

In Stock, Qty 6

0

5

Echo P005000100

SCREW, THROTTLE ADJUST

$5.49

$

Usually ships in 2-4 days

0

6

Echo 12534452130

SCREW

$0.99

$

In Stock, Qty 8

0

7

Echo P005003060

COVER ASSY, ROTOR

$50.99

$

Usually ships in 2-4 days

0

8

Echo P005000280

O-RING

$3.49

$

In Stock, Qty 8

0

9

Echo 12533942030

SCREW

$0.99

$

In Stock, Qty 12

0

10

Echo 12534252130

COVER, METERING DIAPHRAGM

$3.99

$

Usually ships in 2-4 days

0

11

Echo P005002490

NEEDLE, HIGH SPEED

$5.49

$

Usually ships in 2-4 days

0

12

Echo P005003080

CAP, LIMITER

$3.99

$

Usually ships in 2-4 days

0

13

Echo P005002480

BODY ASSY, PURGE

$19.99

$

Usually ships in 2-4 days

0

14

Echo P005000270

SCREW

$1.49

$

In Stock, Qty 20+

0

15

Echo P005003110

BULB, PURGE

$6.99

$

In Stock, Qty 20+

0

16

Echo P005000250

RETAINER, PURGE BULB

$2.49

$

In Stock, Qty 20+

0

17

Echo P005001900

SCREW

$0.99

$

In Stock, Qty 20+

0

18

Echo P005002280

REPAIR KIT

Note: Includes Items 19-28

$16.99

$

In Stock, Qty 5

0

19

GASKET, PUMP

$

$

Not available

20

DIAPHRAGM, PUMP

$

$

Not available

21

SCREEN, FUEL INLET

$

$

Not available

22

GUIDE, ROLLER

$

$

Not available

23

SPRING, METERING LEVER

$

$

Not available

24

LEVER, METERING

$

$

Not available

25

PIN, METERING LEVER

$

$

Not available

26

VALVE, INLET NEEDLE

$

$

Not available

27

GASKET, METERING DIAPHRAGM

$

$

Not available

28

DIAPHRAGM, METERING

$

$

Not available
