HC-151 - Echo Hedge Trimmer (SN: S78211001001 - S78211999999) Fuel System Parts Diagram

Hedge Trimmer

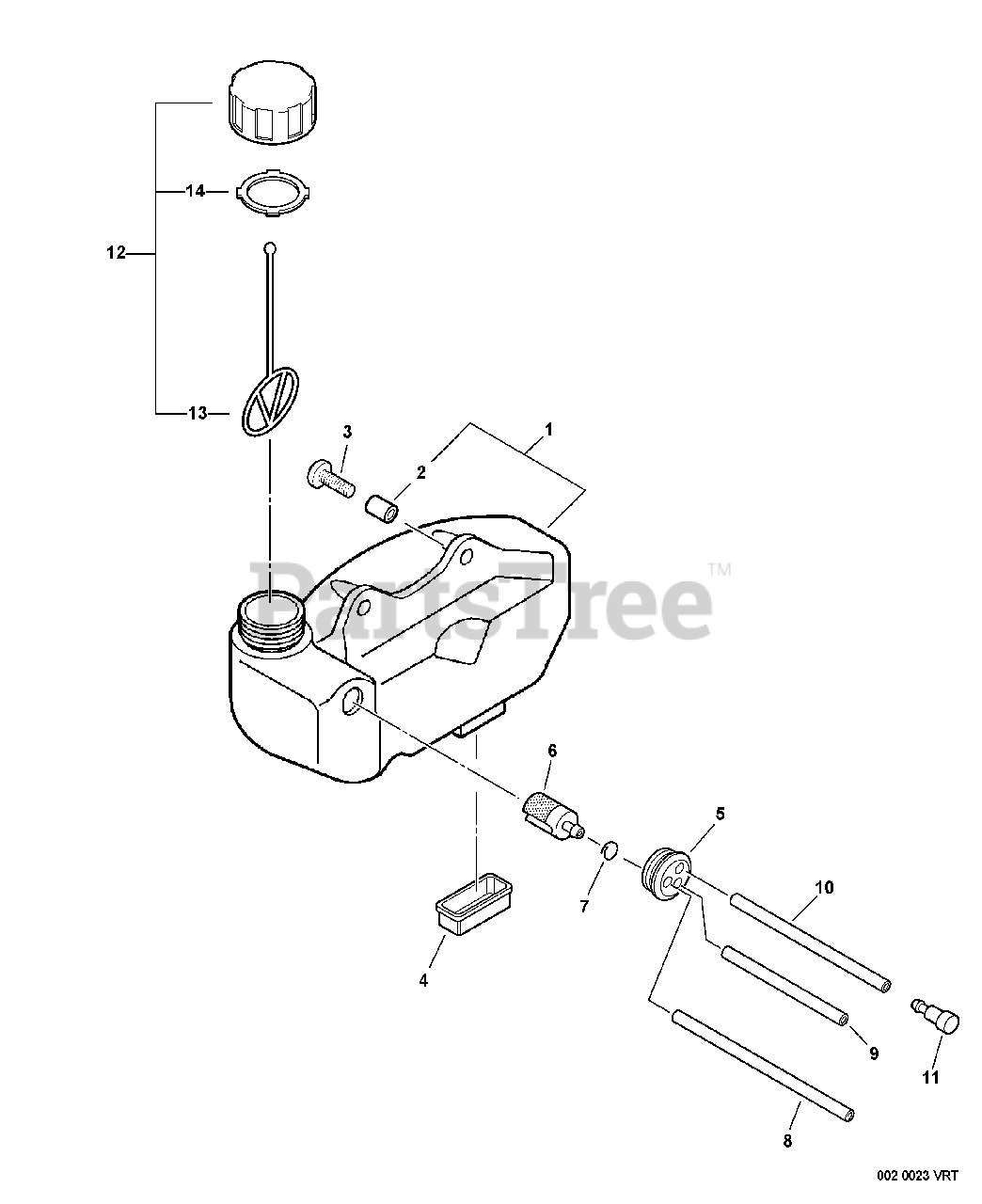

Fuel System Parts Diagram

  • Title

1

Echo A350000680

FUEL TANK ASSY
(Superseded to A350002600)

Note: Includes ITEM 2

$18.99

$

In Stock, Qty 5

0

2

Echo 13104528230

SLEEVE

$1.49

$

In Stock, Qty 20+

0

3

Echo 90027505015

SCREW - 5X15

$0.99

$

In Stock, Qty 12

0

4

Echo 13192061830

CUSHION, FUEL TANK

$5.99

$

Usually ships in 2-4 days

0

5

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 17

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

7

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo V470000580

PIPE - 3X5X195 -- BLACK
(Superseded to V470000581)

Note: RePower BULK OPTION: 90014

$2.49

$

In Stock, Qty 20+

0

9

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 14

0

10

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

11

Echo A356000031

VENT, FUEL TANK

$7.99

$

In Stock, Qty 20+

0

12

Echo 13100455530

CAP ASSY - ORANGE
(Superseded to P100006640)

Note: Includes ITEMS 12-13

$6.49

$

In Stock, Qty 8

0

13

Echo 13105156030

CONNECTOR, CAP

$1.49

$

In Stock, Qty 20+

0

14

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

15

Echo 90074

RePower TUNE-UP KIT
(Superseded to 90152)

Note: Includes ITEM 6

$20.99

$

In Stock, Qty 7

0

16

Echo 90074C

RePower TUNE-UP KIT
(Superseded to 90152)

Note: Includes ITEM 6

$20.99

$

In Stock, Qty 7

0

17

Echo 900103

RePower FUEL SYSTEM KIT
(Superseded to 90135Y)

Note: INCLUDES ITEMS 5-11

$25.99

$

In Stock, Qty 9

0
