HC-151 - Echo Hedge Trimmer (SN: 06001001 - 06999999) Standard Starter Parts Diagram

Hedge Trimmer

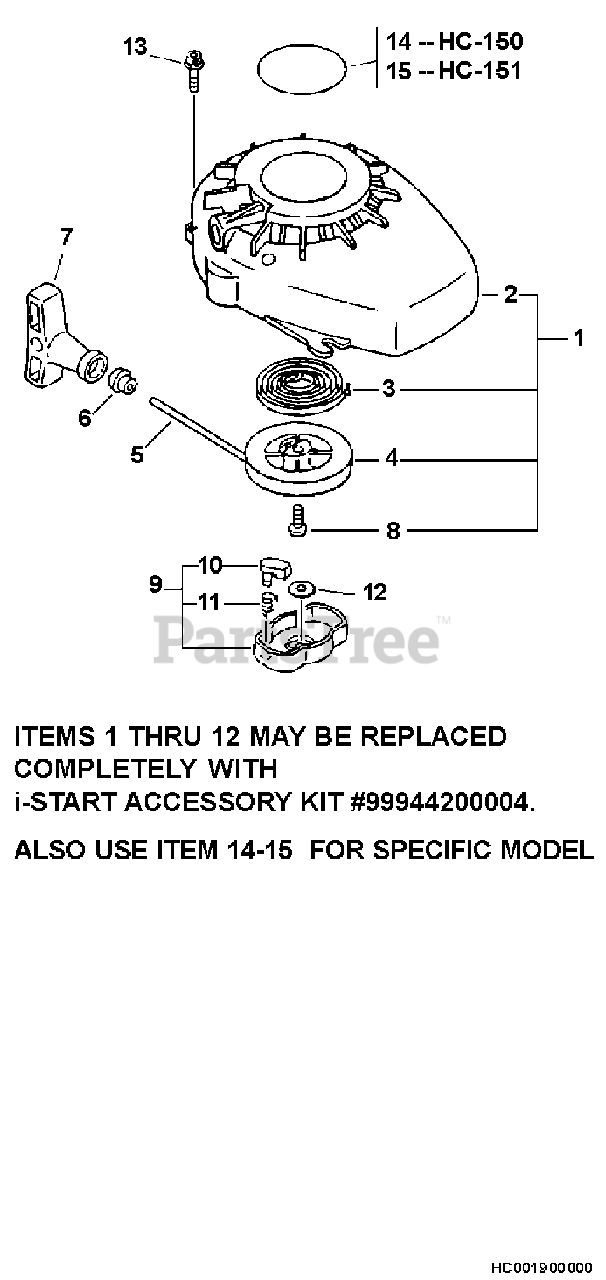

Standard Starter Parts Diagram

  • Title

1

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 2-8

$87.99

$

In Stock, only 4 left!

0

2

Echo 10151106562

CASE, FAN
(Superseded to 10151106563)

$37.99

$

Usually ships in 2-4 days

0

3

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, only 4 left!

0

4

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 16

0

5

Echo 17722610120

ROPE, STARTER - 3X1000

Note: RePower BULK OPTION: 99944440000

$5.99

$

In Stock, Qty 6

0

6

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 14

0

7

Echo 17722811120

GRIP, STARTER

$5.99

$

Usually ships in 2-4 days

0

8

Echo 17723644330

SCREW

$3.49

$

In Stock, only 1 left!

0

9

Echo A052000160

STARTER PAWL ASSY

Note: Includes ITEMS 10-11

$9.99

$

In Stock, Qty 20+

0

10

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

11

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 10

0

12

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

14

Echo X503003710

LABEL - MODEL HC-150
(Superseded to X502000330)

$0.99

$

In Stock, Qty 20+

0

15

Echo X503001300

LABEL - MODEL HC-151

$5.49

$

Usually ships in 2-4 days

0
