HC-151 - Echo Hedge Trimmer (SN: 02001001 - 02999999) Intake, Exhaust Parts Diagram

Hedge Trimmer

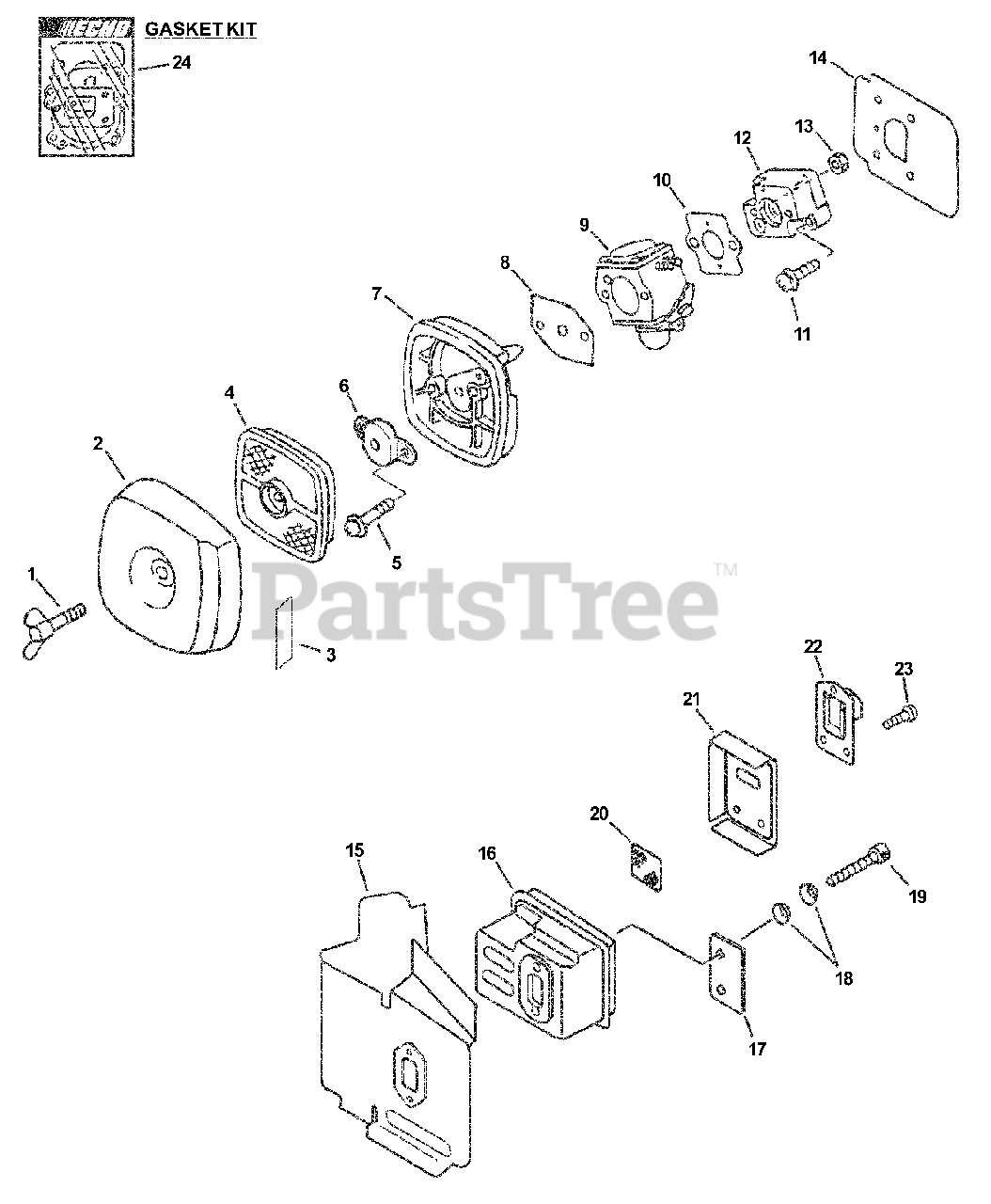

Intake, Exhaust Parts Diagram

  • Title

1

Echo 21041752730

THUMBSCREW

$1.49

$

In Stock, Qty 20+

0

2

Echo 13031306563

COVER, AIR FILTER - GRAY

$6.99

$

In Stock, Qty 20+

0

3

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 15

0

4

Echo 13031054130

FILTER, AIR - SINGLE LAYER
(Superseded to A226001410)

$7.49

$

In Stock, Qty 20+

0

5

Echo 90022005065

SCREW - 5X65

$0.99

$

In Stock, Qty 20+

0

6

Echo 12901152730

PLATE, PREVENT

$3.99

$

In Stock, Qty 20+

0

7

Echo P021001500

CASE, AIR FILTER - GRAY

$21.99

$

Usually ships in 2-4 days

0

8

Echo V103000090

GASKET, INTAKE

$2.49

$

Usually ships in 2-4 days

0

9

Echo A021000110

CARBURETOR C1U-K58
(Superseded to A021000111)

$77.99

$

Usually ships in 2-4 days

0

10

Echo 13001642031

GASKET, INTAKE

$1.49

$

In Stock, Qty 20+

0

11

Echo 90023805020

SCREW - 5X20

$0.99

$

In Stock, only 3 left!

0

12

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

13

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 15

0

15

Echo V104000090

SHIELD, EXHAUST

$11.99

$

Usually ships in 2-4 days

0

16

Echo A300000080

MUFFLER
(Superseded to Discontinued)

$

$

Not available

17

Echo V150000371

PLATE

$1.49

$

In Stock, Qty 9

0

18

Echo V347000000

WASHER - CONICAL

$0.99

$

In Stock, Qty 12

0

19

Echo 90010505055

SCREW - 5X55

$1.49

$

In Stock, Qty 7

0

20

Echo 14586240630

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, Qty 20+

0

21

Echo V104000370

GASKET, EXHAUST

$5.99

$

Usually ships in 2-4 days

0

22

Echo A313000090

GUIDE, EXHAUST

$9.99

$

Usually ships in 2-4 days

0

23

Echo 9136704012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

24

Echo P021001610

GASKET KIT
(Superseded to P021001612)

$29.99

$

Usually ships in 2-4 days

0
