HC-1500 - Echo Hedge Trimmer (Type 2E) Fuel System, Handles, Throttle, Stop Switch Parts Diagram

Hedge Trimmer (Type 2E)

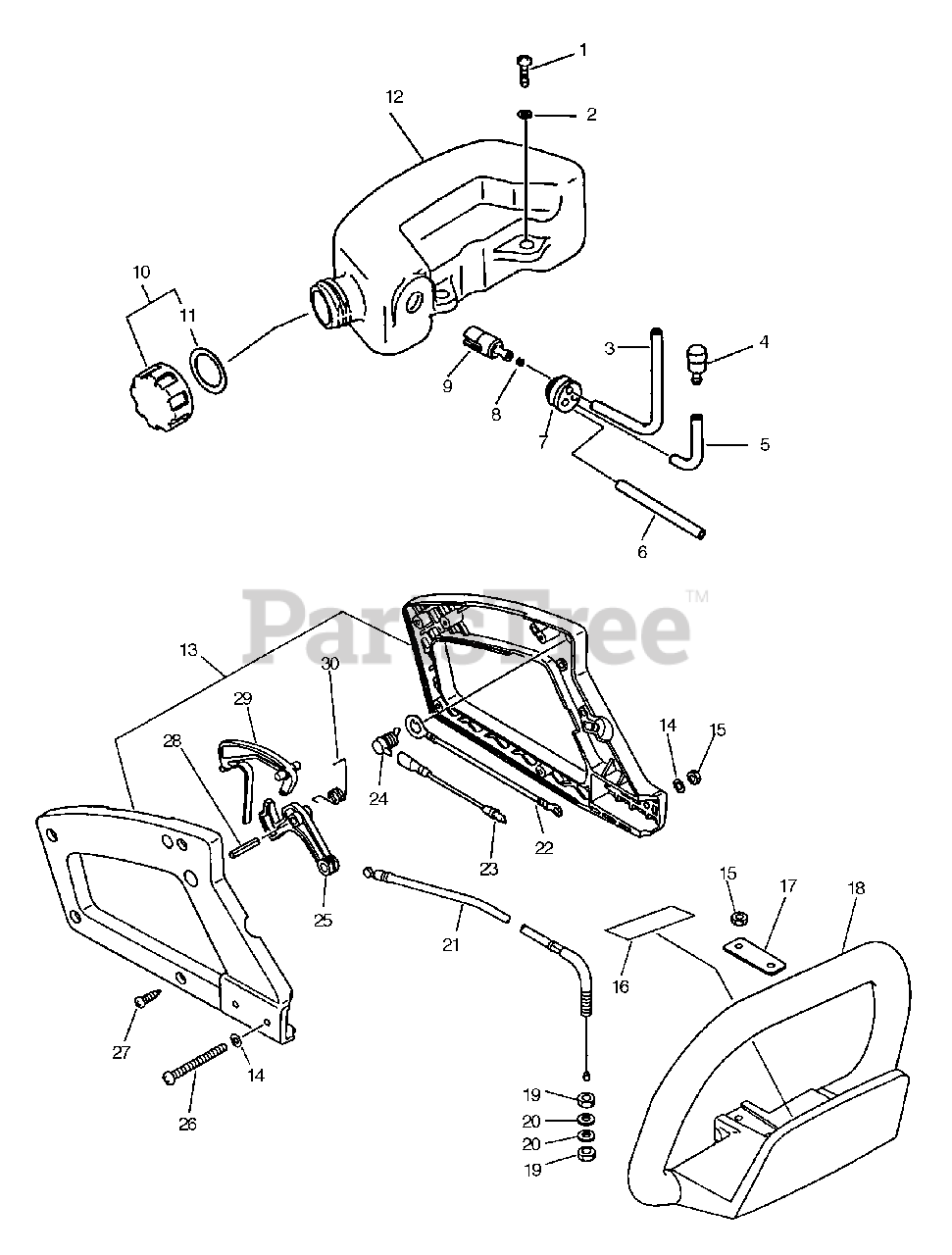

Fuel System, Handles, Throttle, Stop Switch Parts Diagram

  • Title

1

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 13201007530

PIPE - 3X5X195 -- BLACK
(Superseded to 13201007531)

Note: RePower BULK OPTION: 90014

$9.99

$

In Stock, only 1 left!

0

4

Echo A356000031

VENT, FUEL TANK

Note: INCLUDED IN KIT P/N 90010

$7.99

$

In Stock, Qty 20+

0

5

Echo V471001200

PIPE - 3X5X70 -- BLACK
(Superseded to V471001201)

Note: RePower BULK OPTION: 90014

$1.99

$

In Stock, Qty 20+

0

6

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0

7

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

8

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

9

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

Note: INCLUDED IN KIT P/N 90008

$5.49

$

In Stock, Qty 20+

0

10

Echo 13100455830

CAP ASSY
(Superseded to P200000830)

Note: INCLDS ITEM 18. INCLD IN KIT P/N 90010

$4.49

$

In Stock, only 1 left!

0

11

Echo 13101655830

GASKET, CAP
(Superseded to V107000190)

$1.49

$

In Stock, Qty 20+

0

12

Echo 13100505360

TANK, FUEL
(Superseded to 13100505361)

$18.99

$

In Stock, Qty 6

0

13

Echo 35110006560

HANDLE ASSY - REAR
(Superseded to 35110006561)

$34.99

$

In Stock, Qty 12

0

14

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

15

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

16

Echo 89017740630

LABEL - CAUTION

$5.49

$

Usually ships in 2-4 days

0

16

Echo 89031705160

LABEL - CAUTION
(Superseded to Discontinued)

$

$

Not available

17

Echo 35161105360

PLATE

$7.49

$

In Stock, only 1 left!

0

18

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0

19

Echo 90050200006

NUT - 6

$0.99

$

In Stock, only 1 left!

0

20

Echo 90060000006

WASHER - 6

$0.99

$

In Stock, Qty 16

0

21

Echo 17800105360

CABLE, THROTTLE

$21.99

$

In Stock, only 3 left!

0

22

Echo 16201005360

LEAD - GROUND

$2.99

$

Usually ships in 2-4 days

0

23

Echo 16201405360

LEAD - GROUND

$3.99

$

Usually ships in 2-4 days

0

24

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, Qty 6

0

25

Echo 17801006560

TRIGGER, THROTTLE

$9.99

$

In Stock, Qty 11

0

26

Echo 90022005047

SCREW - 5X40

$0.99

$

In Stock, Qty 20+

0

27

Echo 90025504016

SCREW - 4X16

$0.99

$

In Stock, Qty 5

0

28

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

29

Echo 17809006560

LOCKOUT, THROTTLE

$9.99

$

In Stock, Qty 18

0

30

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 9

0

Echo 90008

RePower FILTER KIT
(Superseded to 90152)

$20.99

$

In Stock, Qty 19

0

Echo 90010

Repower CAP AND VENT KIT
(Superseded to 90248)

$

$

Not available
