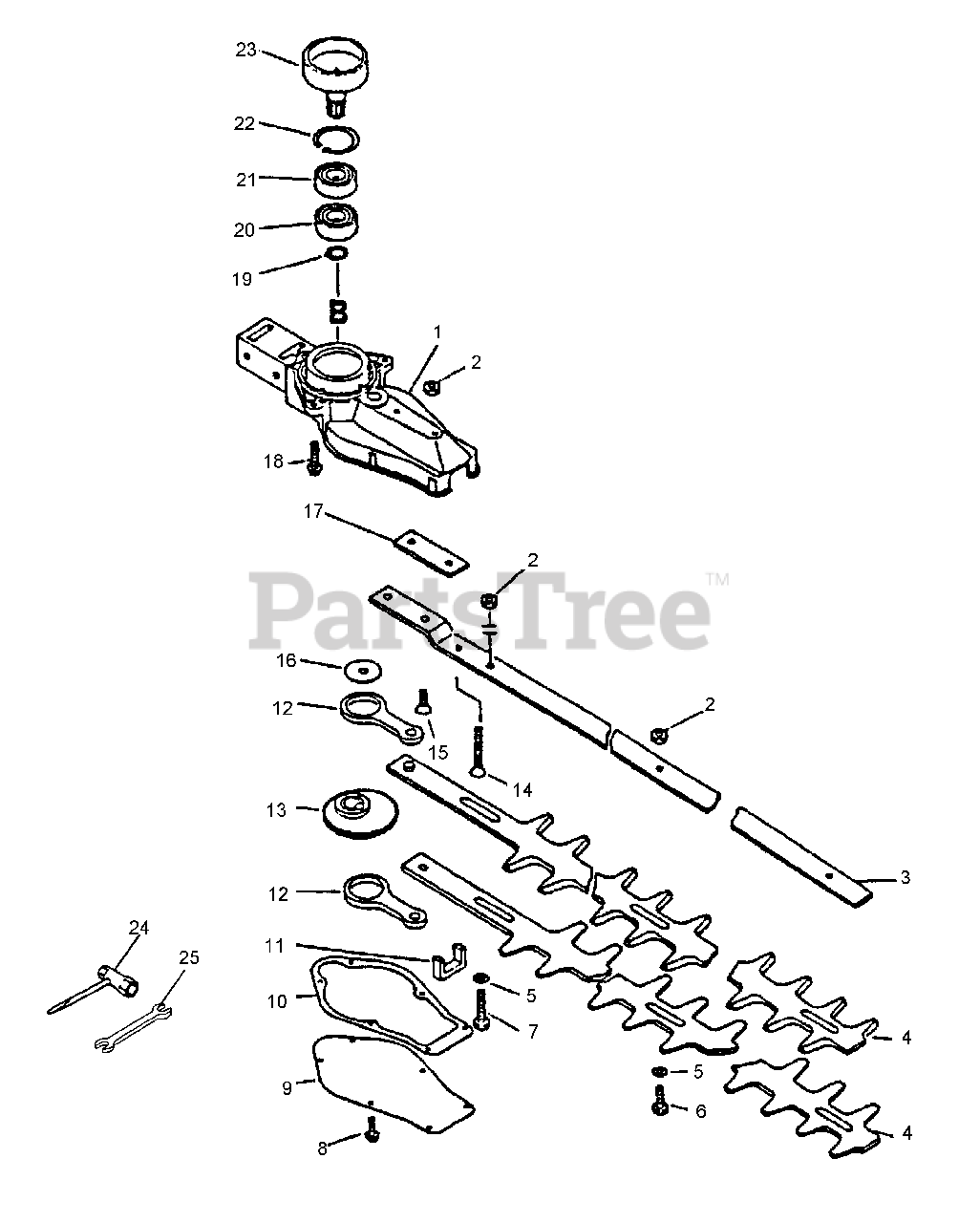

HC-1500 - Echo Hedge Trimmer (Type 1E) Gear Case, Blades Parts Diagram

Hedge Trimmer (Type 1E)

Gear Case, Blades Parts Diagram

  • Title
1

Echo 61040705360

CASE, GEAR
(Superseded to 61040705361)

$105.99

$

In Stock, only 1 left!

0

2

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

3

Echo 69911006960

SUPPORT, BLADE - 20" (50cm)

$32.99

$

In Stock, Qty 5

0

4

Echo 69701006960

BLADE - 20" (50cm)
(Superseded to X411000050)

$57.99

$

In Stock, only 4 left!

0

5

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

$2.49

$

In Stock, Qty 14

0

7

Echo 69911505360

BOLT - 6X35

$2.49

$

Usually ships in 2-4 days

0

8

Echo 90016204010

SCREW - 4X10

$1.49

$

In Stock, Qty 20+

0

9

Echo 61041105361

LID, GEAR CASE

$6.99

$

Usually ships in 2-4 days

0

10

Echo 61041405360

GASKET, GEAR CASE

Note: INCLUDED IN KIT P/N 88900006560

$1.49

$

In Stock, Qty 20+

0

11

Echo 61042504560

SEAL, FELT

$1.49

$

In Stock, Qty 20+

0

12

Echo 61033004560

ROD, CONNECTING
(Superseded to 61033004561)

$23.99

$

In Stock, only 4 left!

0

13

Echo 61031204560

GEAR - DRIVE

$76.99

$

In Stock, only 3 left!

0

14

Echo 90021205030

SCREW - 5X30

$0.99

$

In Stock, Qty 20+

0

15

Echo 90021206025

SCREW - 6X25

$0.99

$

In Stock, Qty 14

0

16

$1.49

$

In Stock, only 4 left!

0

17

$2.49

$

In Stock, Qty 7

0

18

Echo 90016205020

SCREW - 5X20

$1.49

$

In Stock, Qty 20+

0

19

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

0

20

Echo 90081036202

BEARING, BALL - 6202

$9.99

$

In Stock, Qty 8

0

21

Echo 90081336202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

0

22

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

23

Echo 17500504560

DRUM, CLUTCH

$43.99

$

In Stock, only 1 left!

0

24

Echo 89541006960

T-WRENCH - 13X19mm
(Superseded to 89541006961)

$3.49

$

In Stock, Qty 8

0

25

Echo 89511200330

SPANNER - 8X10mm

$0.99

$

In Stock, only 3 left!

0

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

$12.99

$

Usually ships in 2-4 days

0
