HC-1500 - Echo Hedge Trimmer (Type 1E) Clutch, Ignition, Starter Parts Diagram

Hedge Trimmer (Type 1E)

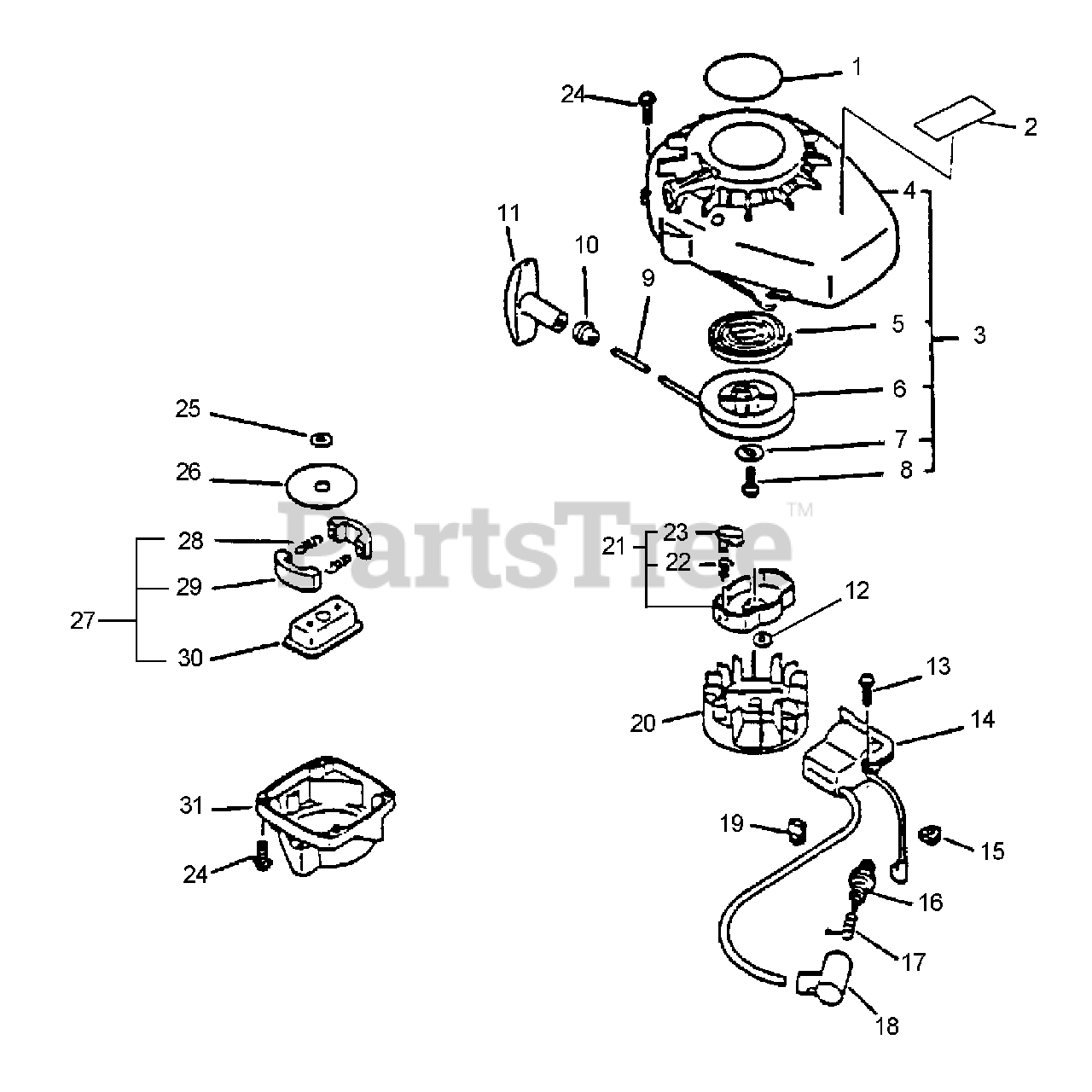

Clutch, Ignition, Starter Parts Diagram

  • Title

1

Echo 89011506561

LABEL - MODEL HC-1500
(Superseded to Discontinued)

$

$

Not available

2

Echo 89016007760

LABEL - CAUTION
(Superseded to 89016007761)

$2.49

$

Usually ships in 2-4 days

0

2

Echo 89016007761

LABEL - CAUTION

$2.49

$

Usually ships in 2-4 days

0

3

Echo 17720012220

STARTER ASSY
(Superseded to 17720006563)

Note: INCLUDES ITEMS 4-11

$87.99

$

In Stock, only 4 left!

0

4

------------------

COVER, FAN

Note: Order Complete Assembly

$

$

Not available

5

Echo 17722042030

SPRING, REWIND
(Superseded to P022019680)

$9.99

$

In Stock, Qty 16

0

6

Echo 17721544430

REEL, ROPE

$8.99

$

In Stock, Qty 14

0

7

Echo 17721442030

WASHER
(Superseded to V303000230)

$1.99

$

In Stock, Qty 5

0

8

Echo 17723640630

SCREW

$3.99

$

In Stock, Qty 14

0

9

Echo 17722605530

ROPE, STARTER - 3X890

Note: RePower BULK OPTION: 99944440000

$4.99

$

In Stock, only 4 left!

0

10

Echo 17722742030

GUIDE, ROPE

$2.49

$

In Stock, Qty 13

0

11

Echo 17722806530

GRIP, STARTER

$4.99

$

In Stock, Qty 18

0

12

Echo 90060500008

LOCKWASHER - 8

$0.99

$

In Stock, Qty 20+

0

13

Echo 90016204022

SCREW - 4X22

$0.99

$

In Stock, Qty 20+

0

14

Echo 15662611820

COIL, IGNITION
(Superseded to Discontinued)

$

$

Not available

15

Echo 15611404920

GROMMET

$0.99

$

In Stock, only 4 left!

0

16

Echo 15901012330

SPARK PLUG -- BPM-6A
(Superseded to Discontinued)

$

$

Not available

16

Echo 15901712330

SPARK PLUG -- RCJ-8Y
(Superseded to Discontinued)

$

$

Not available

17

Echo 15901103432

TERMINAL, SPARK PLUG CAP

$1.49

$

In Stock, Qty 20+

0

18

Echo 15901201620

CAP, SPARK PLUG

$1.49

$

In Stock, Qty 20+

0

19

Echo 15611004920

GROMMET

$0.99

$

In Stock, Qty 5

0

20

Echo 15680144330

FLYWHEEL

$113.99

$

Usually ships in 2-4 days

0

21

Echo 17720244330

STARTER PAWL ASSY
(Superseded to 17720244331)

Note: INCLUDES ITEMS 22 & 23

$16.99

$

In Stock, Qty 16

0

22

Echo 17723412220

SPRING, RETURN

$3.99

$

In Stock, Qty 9

0

23

Echo 17721844330

PAWL, STARTER - BLACK

$3.49

$

In Stock, Qty 20+

0

24

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

25

Echo 17501405360

WASHER, CLUTCH

$1.99

$

Usually ships in 2-4 days

0

26

Echo 17501904920

PLATE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

27

Echo 17500006560

CLUTCH ASSY

Note: INCLUDES ITEMS 28-30

$28.99

$

In Stock, Qty 9

0

28

Echo 17501805960

SPRING, CLUTCH

$1.99

$

In Stock, Qty 5

0

29

Echo 17500905131

SHOE, CLUTCH

$21.99

$

In Stock, only 2 left!

0

30

Echo 17501604920

HUB, CLUTCH

$12.99

$

In Stock, only 1 left!

0

31

Echo 17505505360

CASE, CLUTCH

$48.99

$

Usually ships in 2-4 days

0

Echo 99944400040

BULK ROPE - 3X1000
(Superseded to 99944440000)

$29.99

$

In Stock, Qty 7

0
