HC-1500 - Echo Hedge Trimmer (Original Version) Carburetor -- C1U-K10 S/N: 001001-035000 Parts Diagram

Hedge Trimmer

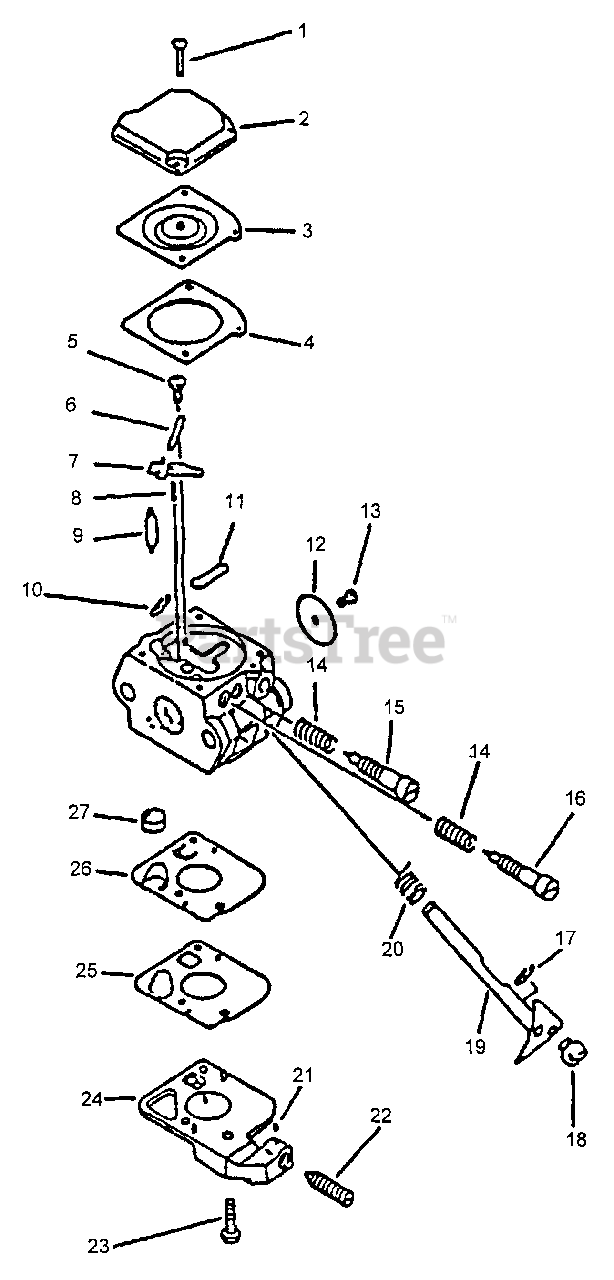

Carburetor -- C1U-K10 S/N: 001001-035000 Parts Diagram

  • Title

Echo 12520011520

CARBURETOR C1U-K10
(Superseded to 12520011521)

Note: Includes ITEMS 1-27

$

$

Not available

1

Echo 12534413931

SCREW

$2.49

$

In Stock, Qty 12

0

2

Echo 12534211520

COVER, METERING

$4.99

$

Usually ships in 2-4 days

0

3

------------------

DIAPHRAGM

Note: INCLUDED IN REPAIR KIT P/N 12530011520 AND GASKET/DIAPHRAGM KIT P/N 12530311520

$

$

Not available

4

------------------

GASKET, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530011520 AND GASKET/DIAPHRAGM KIT P/N 12530311520

$

$

Not available

5

Echo 12533942030

SCREW, METERING LEVER PIN

$0.99

$

In Stock, Qty 12

0

6

------------------

PIN

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

7

------------------

LEVER, METERING

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

8

------------------

SPRING, METERING LEVER

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

9

------------------

VALVE, NEEDLE

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

10

Echo 12532715130

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

11

------------------

PLUG, WELCH

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

12

Echo 12531642030

VALVE, THROTTLE

$2.49

$

In Stock, only 1 left!

0

13

------------------

SCREW

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

14

Echo 12531942030

SPRING

$1.49

$

In Stock, only 1 left!

0

15

Echo 12531851330

NEEDLE - MIXTURE
(Superseded to Discontinued)

$

$

Not available

16

Echo 12532042030

NEEDLE - HIGH SPEED

$4.49

$

Usually ships in 2-4 days

0

17

Echo 12532713930

RING, RETAINING

$0.99

$

In Stock, Qty 9

0

18

Echo 12537242030

SWIVEL

$4.49

$

Usually ships in 2-4 days

0

19

Echo 12531742030

SHAFT, THROTTLE

$5.99

$

Usually ships in 2-4 days

0

20

Echo 12531342030

SPRING, RETURN

$1.49

$

In Stock, Qty 12

0

21

Echo 12537813930

PIECE, FRICTION

$1.99

$

Usually ships in 2-4 days

0

22

Echo 12533413930

SCREW, IDLE ADJUST

$1.49

$

In Stock, only 4 left!

0

23

Echo 12531042030

SCREW, PUMP COVER

$0.99

$

Usually ships in 2-4 days

0

24

Echo 12532442030

BASE, PURGE

$7.99

$

Usually ships in 2-4 days

0

25

------------------

GASKET, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530011520 AND GASKET/DIAPHRAGM KIT P/N 12530311520

$

$

Not available

26

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12530011520 AND GASKET/DIAPHRAGM KIT P/N 12530311520

$

$

Not available

27

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12530011520

$

$

Not available

Echo 12530011520

REPAIR KIT
(Superseded to 12530051330)

$17.99

$

In Stock, only 3 left!

0

Echo 12530311520

DIAPHRAGM/GASKET KIT
(Superseded to 12530351030)

$18.99

$

In Stock, Qty 7

0
