HC-1500 - Echo Hedge Trimmer (Original Version) Air Cleaner S/N: 001001-017000 - Metal Case Parts Diagram

Hedge Trimmer

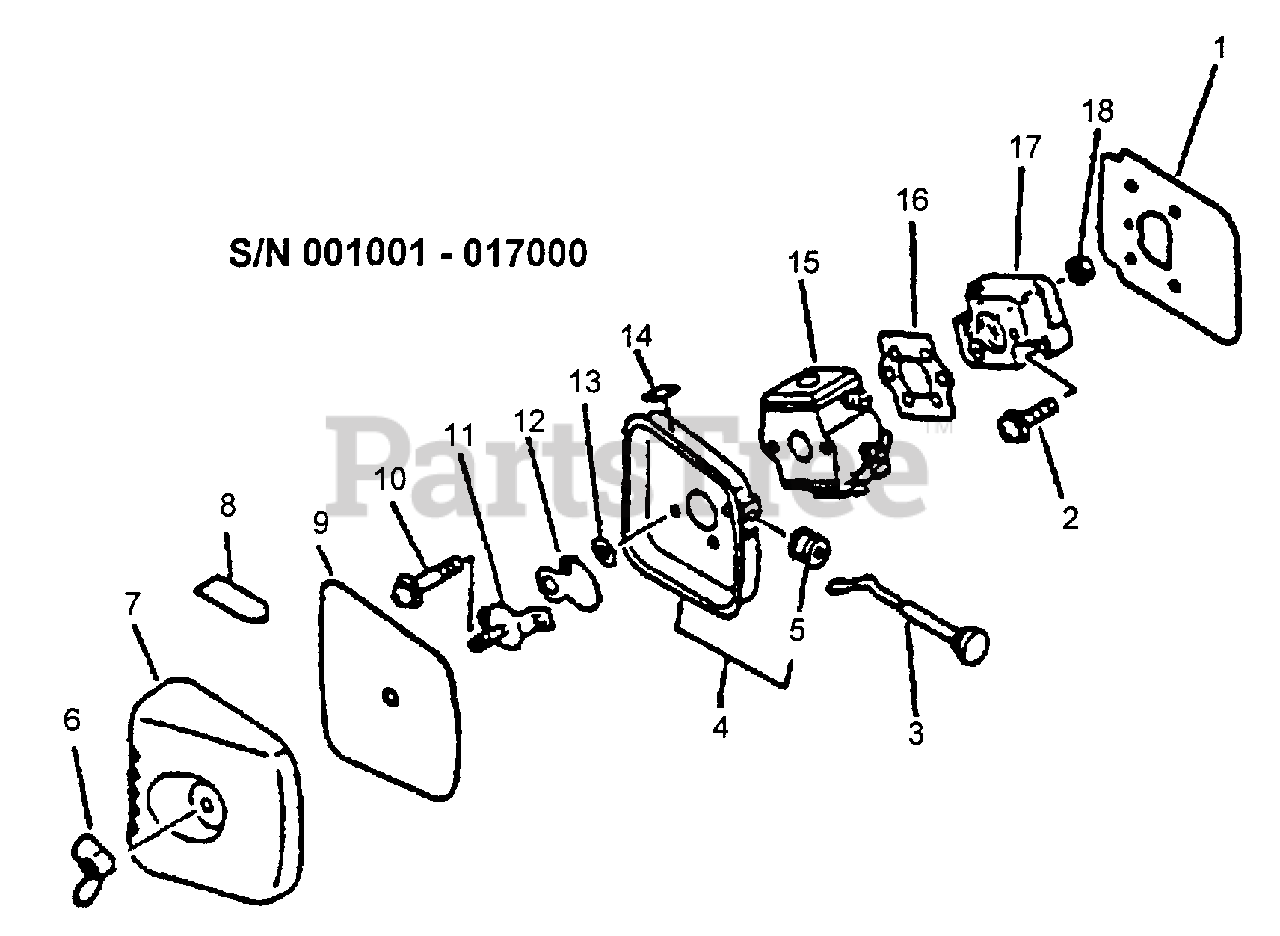

Air Cleaner S/N: 001001-017000 - Metal Case Parts Diagram

  • Title

1

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

Note: INCLUDED IN GASKET KITS 88900006560 AND 88900005362; SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$2.49

$

In Stock, Qty 7

0

2

Echo 90024205020

SCREW - 5X20
(Superseded to 90024205022)

$0.99

$

In Stock, Qty 8

0

3

Echo 17851004560

ROD, CHOKE

$7.49

$

Usually ships in 2-4 days

0

4

Echo 13030104560

CASE, AIR FILTER

Note: Includes ITEM 5

$8.49

$

Usually ships in 2-4 days

0

5

Echo 17881005230

GROMMET

$1.99

$

In Stock, Qty 8

0

6

Echo 90052800005

WINGNUT - 6

$1.49

$

In Stock, Qty 15

0

7

Echo 13031304561

COVER, AIR FILTER
(Superseded to Discontinued)

$

$

Not available

8

Echo 89012106360

LABEL - CHOKE

$1.99

$

In Stock, Qty 16

0

8

Echo 89012112331

LABEL - CHOKE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13031004560

FILTER, AIR

$4.99

$

In Stock, Qty 20+

0

9

Echo 13031740630

FILTER, AIR
(Superseded to Discontinued)

$

$

Not available

10

Echo 90024205057

SCREW - 5X57

$0.99

$

In Stock, Qty 5

0

11

Echo 13040504560

PLATE, PREVENT
(Superseded to Discontinued)

$

$

Not available

12

Echo 17851504560

SHUTTER, CHOKE

$2.49

$

In Stock, only 2 left!

0

13

Echo 17851600830

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

14

Echo 89015805360

LABEL - IDLE

$0.99

$

Usually ships in 2-4 days

0

15

Echo 12520011521

CARBURETOR C1U-K10A
(Superseded to Discontinued)

$

$

Not available

16

Echo 13001642031

GASKET, INTAKE

Note: INCLUDED IN GASKET KITS 88900006560 AND 88900005362; SEE "ENGINE" ILLUSTRATION AND PARTS LIST.

$1.49

$

In Stock, Qty 20+

0

17

Echo 13001742031

INSULATOR, INTAKE

$9.49

$

In Stock, only 1 left!

0

18

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

Echo 88900005362

GASKET KIT
(Superseded to 88900006560)

Note: ENGINE REPOWER - S/N 001001-017000

$12.99

$

Usually ships in 2-4 days

0

Echo 88900006560

GASKET KIT
(Superseded to P021000350)

Note: ENGINE REPOWER - S/N 017001 & UP

$12.99

$

Usually ships in 2-4 days

0
