HC-150 - Echo Hedge Trimmer (SN: S90920001001 - S90920999999) Rear Handle, Throttle Control Parts Diagram

Hedge Trimmer

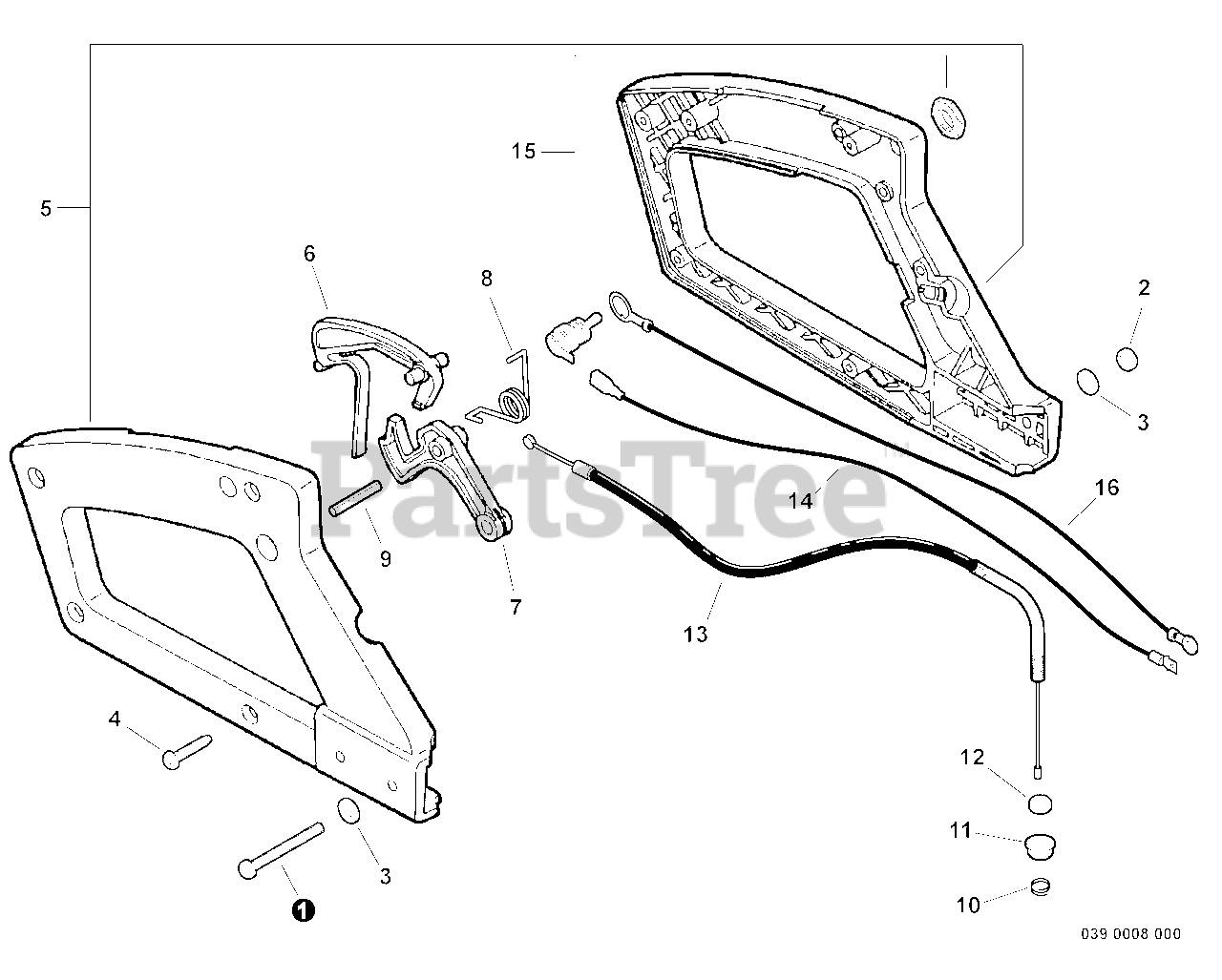

Rear Handle, Throttle Control Parts Diagram

  • Title

1

Echo 90022005047

SCREW - 5X40

$0.99

$

In Stock, Qty 20+

0

2

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

3

Echo 90060000005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

4

Echo 90025504016

SCREW - 4X16

$0.99

$

In Stock, Qty 5

0

5

Echo 35110006560

HANDLE ASSY - REAR
(Superseded to 35110006561)

$34.99

$

In Stock, Qty 12

0

6

Echo 17809006560

LOCKOUT, THROTTLE

$9.99

$

In Stock, Qty 18

0

7

Echo 17801006560

TRIGGER, THROTTLE

$9.99

$

In Stock, Qty 11

0

8

Echo 17804315130

SPRING, TRIGGER

$2.49

$

In Stock, Qty 9

0

9

Echo 90034250025

PIN - SPRING -- 5X25

$1.49

$

In Stock, Qty 10

0

10

Echo V490001100

CLIP

$0.99

$

In Stock, Qty 12

0

11

Echo 90051500006

NUT - 6 -- FLANGE

$0.99

$

Usually ships in 2-4 days

0

12

Echo 90050200006

NUT - 6

$0.99

$

In Stock, Qty 8

0

13

Echo V430003550

CABLE, THROTTLE

$8.49

$

Usually ships in 2-4 days

0

14

Echo V485000090

LEAD - IGNITION

$6.99

$

In Stock, Qty 5

0

15

Echo 16340003460

IGNITION SWITCH ASSY

$8.49

$

In Stock, only 3 left!

0

16

Echo V485000080

LEAD - GROUND

$4.99

$

Usually ships in 2-4 days

0
