HC-150 - Echo Hedge Trimmer (SN: S83613001001 - S83613999999) Blades, Front Handle, Gear Case S/N: S83613009327 - S83613999999 Parts Diagram

Hedge Trimmer

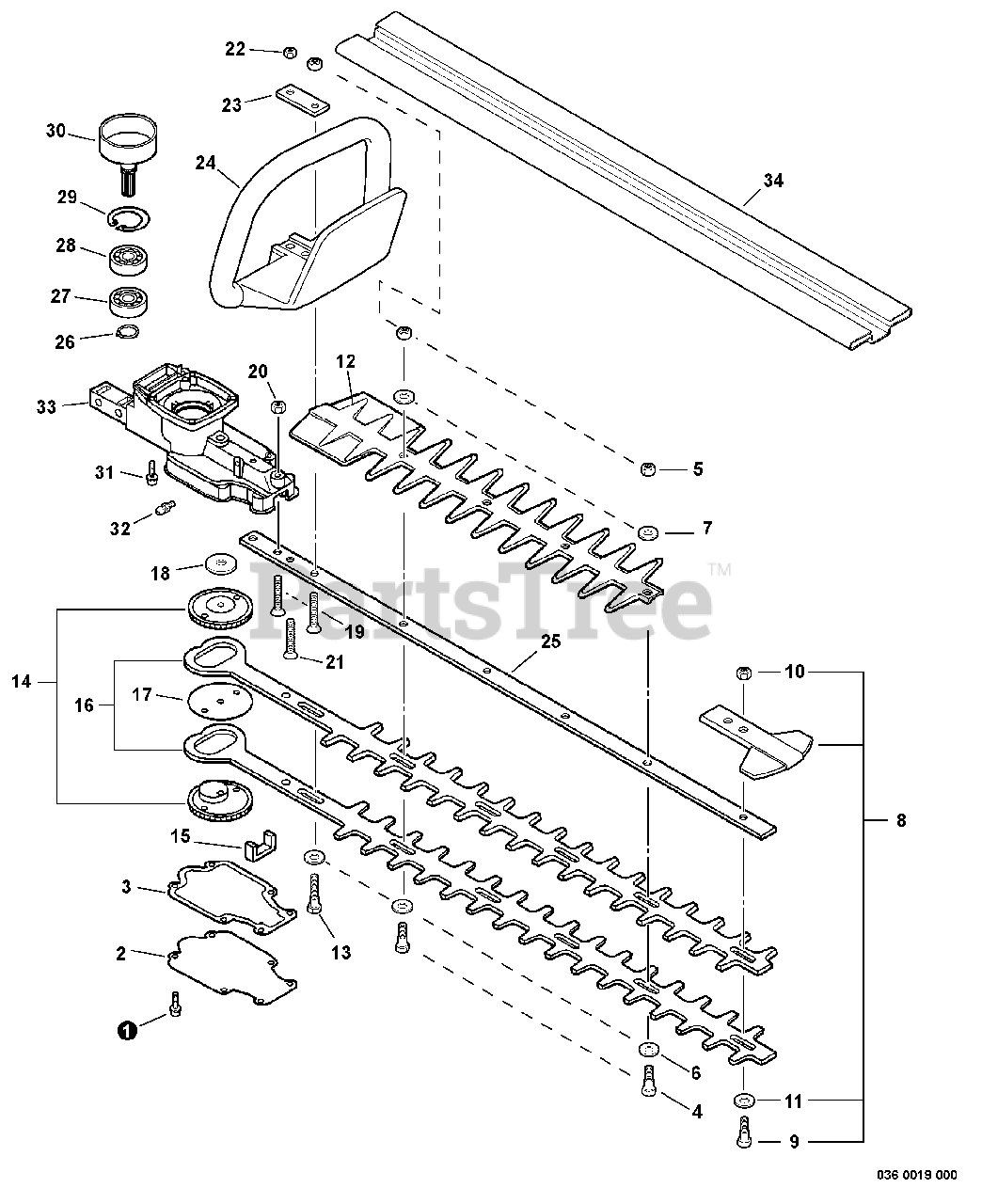

Blades, Front Handle, Gear Case S/N: S83613009327 - S83613999999 Parts Diagram

  • Title
1

Echo 90016204012

SCREW - 4X12

$1.49

$

In Stock, Qty 8

0

2

Echo 61041106561

LID, GEAR CASE

$10.99

$

In Stock, only 4 left!

0

3

Echo 61041406560

GASKET, GEAR CASE

$1.49

$

In Stock, Qty 12

0

4

Echo 69911504660

BOLT - 6X18

$2.49

$

In Stock, Qty 20+

0

5

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

6

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

7

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo 99988802000

TIP GUARD KIT

Note: Includes ITEMS 9-11

$9.99

$

In Stock, only 1 left!

0

9

Echo 69911521460

BOLT - 6X20

$4.49

$

In Stock, Qty 20+

0

10

Echo 43302206460

LOCKNUT - 6

$1.49

$

In Stock, Qty 20+

0

11

Echo 69911804560

WASHER - 6

$0.99

$

In Stock, Qty 20+

0

12

Echo 69912503061

SHIELD, BLADE

$10.99

$

In Stock, only 2 left!

0

13

Echo 69911506560

BOLT - 6X35

$2.99

$

In Stock, Qty 5

0

14

Echo V650000080

GEAR - SPUR

$53.99

$

In Stock, Qty 15

0

15

Echo 61042606560

SEAL, FELT

$2.99

$

In Stock, Qty 10

0

16

Echo X411000271

BLADE, TRIMMER
(Superseded to X411000272)

$41.99

$

In Stock, Qty 20+

0

17

$2.49

$

In Stock, Qty 5

0

18

$1.49

$

In Stock, only 2 left!

0

19

Echo 90021206030

SCREW - 6X30

$1.49

$

In Stock, Qty 20+

0

20

Echo 90050000006

LOCKNUT - 6

$0.99

$

In Stock, Qty 20+

0

21

Echo 90021205030

SCREW - 5X30

$0.99

$

In Stock, Qty 20+

0

22

Echo 90056000005

LOCKNUT - 5

$1.49

$

In Stock, Qty 20+

0

23

$7.49

$

In Stock, only 1 left!

0

24

Echo 35161005360

HANDLE - FRONT

$40.99

$

Usually ships in 2-4 days

0

25

Echo X425000180

SUPPORT, BLADE

$26.99

$

In Stock, only 1 left!

0

26

Echo 90070100014

RING, RETAINING - 14

$1.49

$

In Stock, only 1 left!

0

27

Echo 90087036202

BEARING, BALL - 6202

$9.99

$

In Stock, only 1 left!

0

28

Echo 90087236202

BEARING, BALL - 6202

$10.99

$

In Stock, only 1 left!

0

29

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

30

Echo 17500506560

DRUM, CLUTCH

$33.99

$

In Stock, Qty 13

0

31

Echo 90016304016

SCREW - 4X16
(Superseded to V202000830)

$1.49

$

In Stock, Qty 20+

0

32

Echo 88011054230

FITTING, GREASE

$5.49

$

In Stock, only 3 left!

0

33

Echo C531000052

CASE, GEAR
(Superseded to C531000053)

$66.99

$

In Stock, only 4 left!

0

34

Echo X495000480

COVER, BLADE - 20" (50cm)

$8.99

$

In Stock, Qty 14

0
