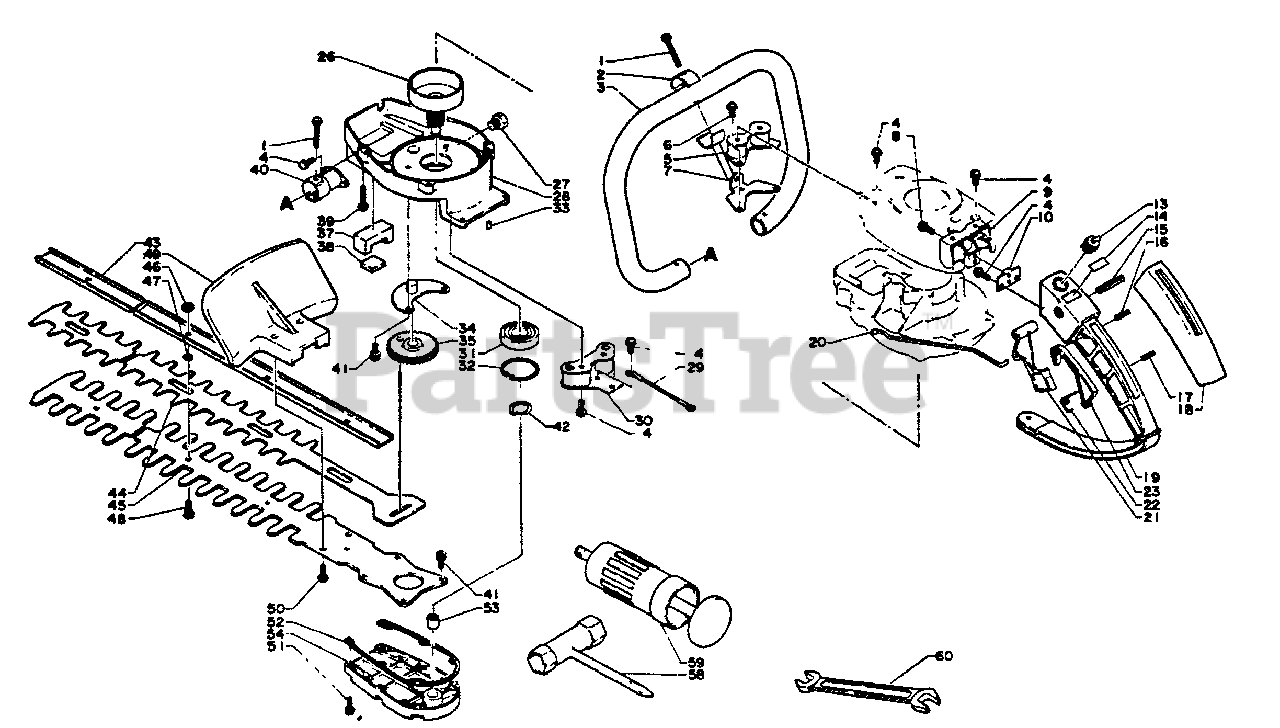

HC-140 - Echo Hedge Trimmer Gear Case, Handles, Blades, Throttle, Tools Parts Diagram

Hedge Trimmer

Gear Case, Handles, Blades, Throttle, Tools Parts Diagram

  • Title
1

Echo 90024204030

SCREW - 4X30

$0.99

$

In Stock, Qty 14

0

$3.49

$

Usually ships in 2-4 days

0

3

Echo 35161001360

HANDLE - FRONT
(Superseded to Discontinued)

$

$

Not available

4

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

5

$14.99

$

Usually ships in 2-4 days

0

6

Echo 90024204008

SCREW - 4X8

$0.99

$

In Stock, Qty 8

0

7

Echo 35161301360

BRACKET, HANDLE
(Superseded to 35161301361)

$14.99

$

Usually ships in 2-4 days

0

8

Echo 90024204012

SCREW - 4X12

$0.99

$

In Stock, Qty 20+

0

9

$15.99

$

Usually ships in 2-4 days

0

10

Echo 35112601360

PLATE
(Superseded to Discontinued)

$

$

Not available

13

Echo 16340001360

IGNITION SWITCH ASSY
(Superseded to 16340002160)

$8.49

$

In Stock, only 3 left!

0

14

Echo 89015711130

LABEL - STOP

$0.99

$

In Stock, Qty 7

0

15

Echo 90034050032

PIN - SPRING -- 5X32
(Superseded to Discontinued)

$

$

Not available

16

Echo 90034040016

PIN - SPRING -- 4X16
(Superseded to Discontinued)

$

$

Not available

17

Echo 90034030014

PIN - SPRING -- 3X14
(Superseded to Discontinued)

$

$

Not available

$6.49

$

Usually ships in 2-4 days

0

19

Echo 35111001360

HANDLE
(Superseded to 35111002160)

$

$

Not available

20

Echo 17801101360

ROD, THROTTLE
(Superseded to Discontinued)

$

$

Not available

21

Echo 17801001360

TRIGGER, THROTTLE
(Superseded to Discontinued)

$

$

Not available

22

$1.99

$

Usually ships in 2-4 days

0

23

Echo 17809001360

LOCKOUT, THROTTLE

$3.49

$

Usually ships in 2-4 days

0

26

Echo 17500501360

DRUM, CLUTCH
(Superseded to Discontinued)

$

$

Not available

27

Echo 90010008008

BOLT - 8X8

$0.99

$

In Stock, Qty 11

0

28

Echo 61041001360

CASE, GEAR
(Superseded to Discontinued)

$

$

Not available

29

Echo 16201001360

LEAD - GROUND
(Superseded to Discontinued)

$

$

Not available

30

Echo 35110701360

CUSHION
(Superseded to Discontinued)

$

$

Not available

31

Echo 90080206003

BEARING, BALL - 6003

$17.99

$

Usually ships in 2-4 days

0

32

Echo 90070200035

RING, RETAINING - 35

$1.99

$

In Stock, Qty 15

0

33

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

34

Echo 61030901360

SHAFT GEAR ASSY
(Superseded to Discontinued)

$

$

Not available

35

Echo 61030801360

GEAR - SPUR
(Superseded to Discontinued)

$

$

Not available

37

Echo 61042601360

SEAL, FELT

$1.99

$

Usually ships in 2-4 days

0

38

Echo 61043501360

SEAL, FELT

$1.49

$

Usually ships in 2-4 days

0

39

Echo 90024204022

SCREW - 4X22

$0.99

$

In Stock, Qty 8

0

40

$

$

Currently unavailable

41

Echo 90016204014

SCREW - 4X14

$1.49

$

In Stock, Qty 5

0

42

Echo 90070100016

RING, RETAINING - 16

$1.49

$

Usually ships in 2-4 days

0

43

Echo 69911001360

SUPPORT, BLADE
(Superseded to Discontinued)

$

$

Not available

44

Echo 69701001360

BLADE - UPPER
(Superseded to Discontinued)

$

$

Not available

45

Echo 69701101360

BLADE - LOWER
(Superseded to Discontinued)

$

$

Not available

46

Echo 69911601360

LOCKNUT - 5
(Superseded to 43302000830)

$1.49

$

In Stock, Qty 20+

0

47

Echo 69911101360

SPACER
(Superseded to Discontinued)

$

$

Not available

48

Echo 90010505012

SCREW - 5X12

$1.49

$

In Stock, Qty 20+

0

49

Echo 35180501360

GUARD
(Superseded to Discontinued)

$

$

Not available

50

Echo 90024205012

SCREW - 5X12

$0.99

$

In Stock, Qty 20+

0

51

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

52

Echo 61041401360

GASKET, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

53

Echo 61044201360

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

54

Echo 61041101360

LID, GEAR CASE
(Superseded to Discontinued)

$

$

Not available

58

Echo 89541007930

T-WRENCH

$12.99

$

Usually ships in 2-4 days

0

59

Echo 88030001360

PUMP, GREASE
(Superseded to 88030001260)

$

$

Not available

60

Echo 89512303830

SPANNER - 10X13mm

$4.49

$

Usually ships in 2-4 days

0
