HC-1001 - Echo Hedge Trimmer (SN: 024001 - 999999) Fuel System Parts Diagram

Hedge Trimmer

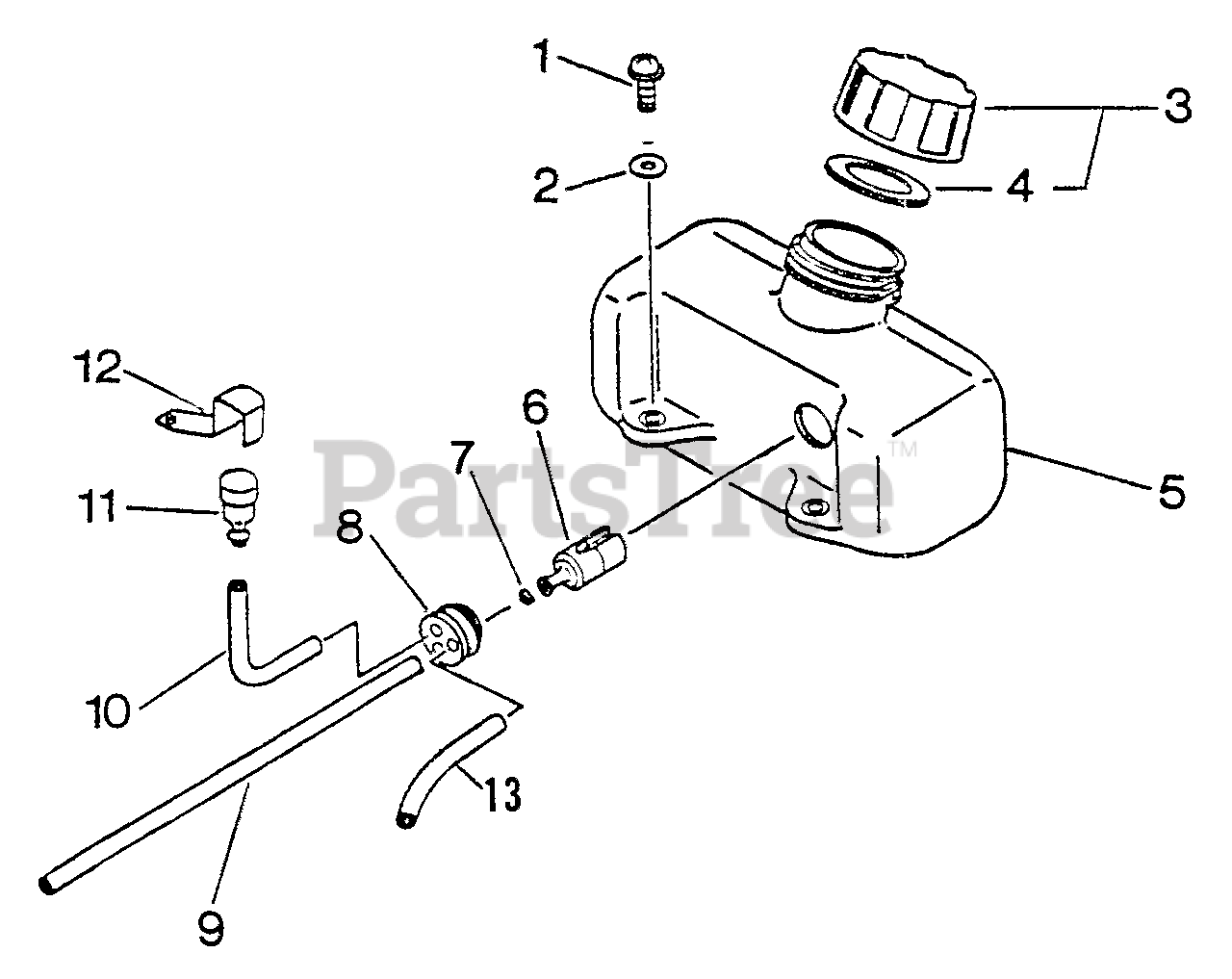

Fuel System Parts Diagram

  • Title
1

Echo 90023805016

SCREW - 5X16

$0.99

$

In Stock, Qty 20+

0

2

Echo 90060300005

WASHER - 5

$0.99

$

In Stock, Qty 20+

0

3

Echo 13100448730

CAP ASSY
(Superseded to 13100455830)

Note: Includes ITEM 4

$4.49

$

In Stock, only 1 left!

0

4

Echo 13101640930

GASKET, CAP

$2.99

$

In Stock, Qty 19

0

5

Echo 13100506460

TANK, FUEL
(Superseded to 13100506461)

$17.99

$

Usually ships in 2-4 days

0

6

Echo 13120507320

FILTER, FUEL
(Superseded to 13120507321)

$5.49

$

In Stock, Qty 20+

0

7

Echo 13201309820

CLIP - 6

$0.99

$

In Stock, Qty 20+

0

8

Echo V137000030

GROMMET
(Superseded to 13211546730)

$1.99

$

In Stock, Qty 20+

0

9

Echo V471001190

PIPE - 3X5X180 -- BLACK
(Superseded to V471001191)

Note: RePower BULK OPTION: 90014

$1.49

$

In Stock, Qty 20+

0

10

Echo 13271750430

PIPE - 3X6X70 -- CLEAR

Note: RePower BULK OPTION: 90017

$1.99

$

In Stock, Qty 20+

0

11

Echo 13130040630

VENT, FUEL TANK
(Superseded to 13130056430)

$7.49

$

In Stock, Qty 10

0

12

$3.99

$

In Stock, only 1 left!

0

13

Echo 13201006460

PIPE - 3X6X110 -- CLEAR

Note: RePower BULK OPTION: 90017

$3.49

$

In Stock, Qty 16

0
