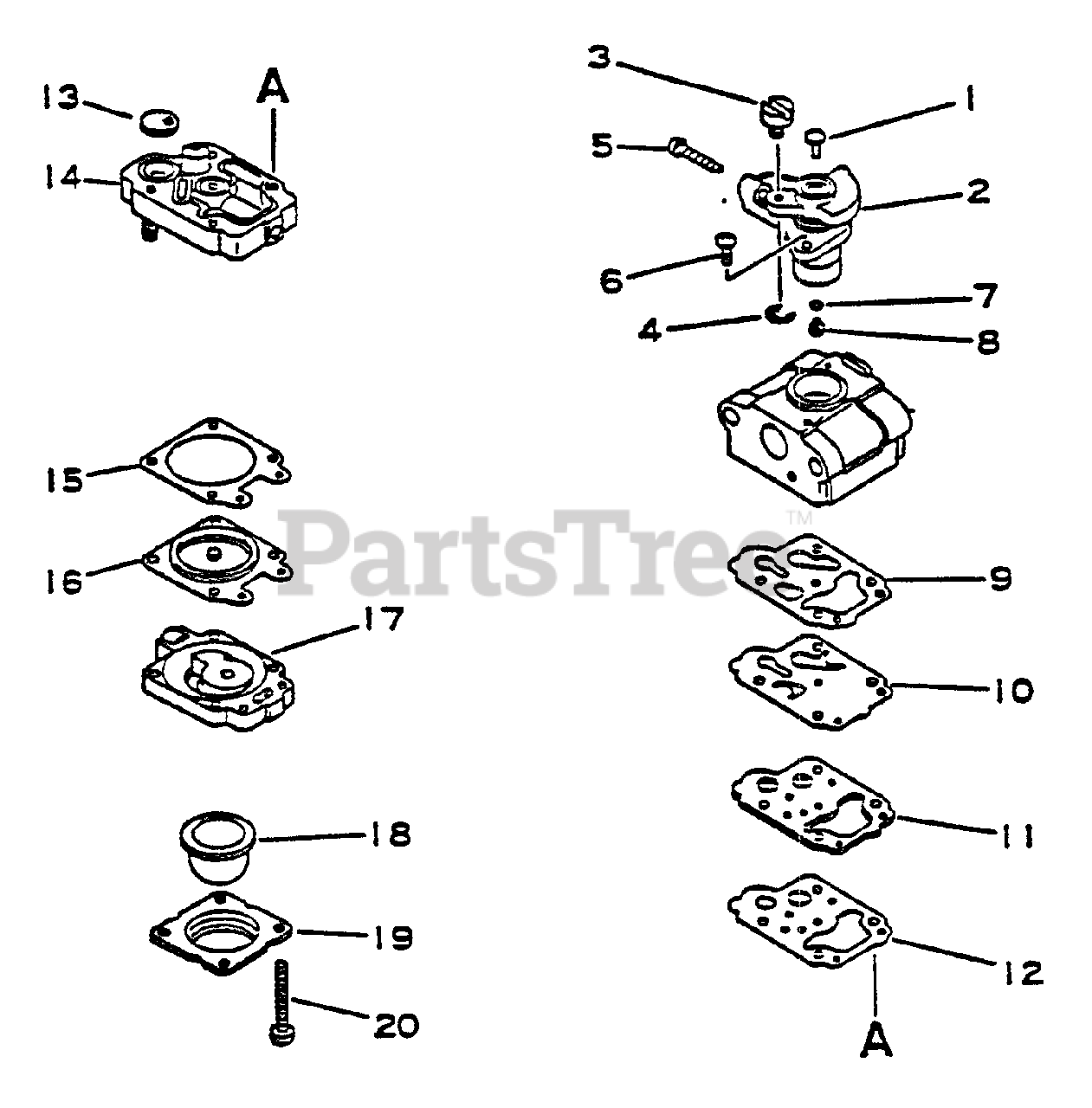

HC-1001 - Echo Hedge Trimmer (SN: 024001 - 999999) Carburetor Parts Diagram

Hedge Trimmer

Carburetor Parts Diagram

  • Title

Echo 12300006460

CARBURETOR WYL-11
(Superseded to Discontinued)

Note: Includes ITEMS 1-20

$

$

Not available

1

Echo 12314644330

PLUG, WELCH

$0.99

$

In Stock, only 1 left!

0

2

Echo 12311645130

THROTTLE VALVE ASSY

$19.99

$

Usually ships in 2-4 days

0

3

Echo 12317245130

SWIVEL

$1.99

$

Usually ships in 2-4 days

0

4

Echo 12317307930

RING, RETAINING

$1.49

$

In Stock, only 1 left!

0

5

Echo 12313440030

SCREW, IDLE ADJUST

$1.49

$

Usually ships in 2-4 days

0

6

Echo 12311444330

SCREW

$0.99

$

Usually ships in 2-4 days

0

7

------------------

O-RING

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

8

------------------

JET

Note: INCLUDED IN REPAIR KIT P/N 12310006460

$

$

Not available

9

------------------

GASKET, PURGE

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

10

------------------

DIAPHRAGM, PURGE

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

11

Echo 12316040630

PLATE, PUMP

$3.99

$

Usually ships in 2-4 days

0

12

------------------

GASKET, PLATE

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

13

------------------

STRAINER

Note: INCLUDED IN REPAIR KIT P/N 12310006460

$

$

Not available

14

------------------

BASE, PURGE

Note: INCLUDED IN REPAIR KIT P/N 12310006460

$

$

Not available

15

------------------

GASKET, METERING

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

16

------------------

DIAPHRAGM, METERING

Note: INCLUDED IN DIAPHRAGM/GASKET KIT P/N 12310148730 AND REPAIR KIT P/N 12310006460

$

$

Not available

17

------------------

BASE, PURGE

Note: Included in carb. repair kit P/N 12310006460

$

$

Not available

18

Echo 12318140630

BULB, PURGE

$5.49

$

In Stock, Qty 20+

0

19

Echo 12314202960

RETAINER, PURGE BULB

$3.99

$

In Stock, only 2 left!

0

20

Echo 12311040630

SCREW

$0.99

$

In Stock, Qty 6

0

Echo 12310148730

DIAPHRAGM/GASKET KIT

Note: Includes Items Below

$11.99

$

Usually ships in 2-4 days

0

------------------

O-RING

$

$

Not available

------------------

GASKET, PUMP

$

$

Not available

------------------

DIAPHRAGM, PUMP

$

$

Not available

------------------

GASKET, PLATE

$

$

Not available

------------------

GASKET, METERING

$

$

Not available

------------------

DIAPHRAGM, METERING

$

$

Not available

Echo 12310006460

REPAIR KIT
(Superseded to Discontinued)

Note: Includes Items Below

$

$

Not available

Echo 12310148730

DIAPHRAGM/GASKET KIT

$11.99

$

Usually ships in 2-4 days

0

------------------

JET

$

$

Not available

------------------

STRAINER

$

$

Not available

------------------

BASE, PURGE

$

$

Not available
