HC-1001 - Echo Hedge Trimmer (SN: 017001 - 024000) Intake, Exhaust, Air Cleaner Parts Diagram

Hedge Trimmer

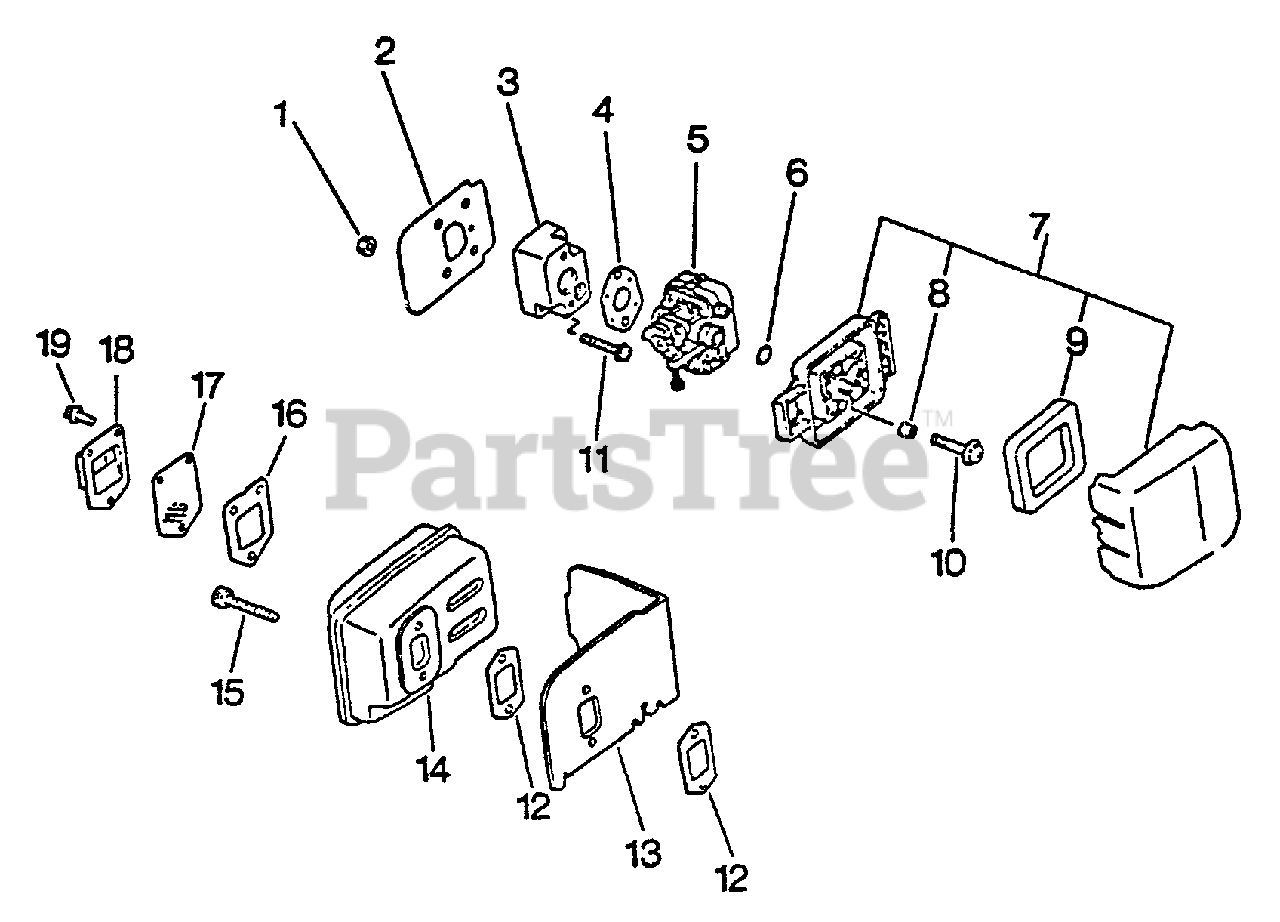

Intake, Exhaust, Air Cleaner Parts Diagram

  • Title

1

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

2

Echo V103000490

SHIELD, INTAKE
(Superseded to V103001360)

$2.49

$

In Stock, Qty 16

0

3

Echo 13001744330

INSULATOR, INTAKE
(Superseded to P021015350)

$4.49

$

Usually ships in 2-4 days

0

4

Echo 13001044430

GASKET, INTAKE
(Superseded to 13001044431)

$2.49

$

In Stock, Qty 12

0

5

Echo 12300004860

CARBURETOR WYL-7
(Superseded to Discontinued)

$

$

Not available

6

Echo 90072000015

O-RING - 15

$1.99

$

In Stock, Qty 20+

0

7

Echo 13030044430

AIR CLEANER ASSY
(Superseded to 13030045130)

Note: Includes Items 8 & 9

$30.99

$

Usually ships in 2-4 days

0

8

Echo 13032744330

SLEEVE
(Superseded to Discontinued)

$

$

Not available

9

Echo 13031044330

FILTER, AIR

$4.99

$

In Stock, Qty 10

0

10

Echo 90024205064

SCREW - 5X64

$1.49

$

In Stock, Qty 9

0

11

Echo 90024205022

SCREW - 5X22

$0.99

$

In Stock, Qty 13

0

12

Echo V104000160

GASKET, EXHAUST

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$0.99

$

In Stock, Qty 16

0

13

Echo 14587144330

COVER, EXHAUST
(Superseded to 14587144331)

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$4.99

$

In Stock, Qty 14

0

14

Echo 14581044330

MUFFLER

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$36.99

$

Usually ships in 2-4 days

0

15

Echo 90010505055

SCREW - 5X55

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$1.49

$

In Stock, Qty 18

0

16

Echo 14586642030

GASKET, EXHAUST
(Superseded to 14586642031)

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$2.49

$

In Stock, Qty 6

0

17

Echo 14586240630

SCREEN, SPARK ARRESTOR

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$1.99

$

In Stock, Qty 20+

0

18

Echo 14587604560

GUIDE, EXHAUST
(Superseded to Discontinued)

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$

$

Not available

19

Echo 90024204010

SCREW - 4X10

Note: Included in Muffler Assembly, P/N 14580005162 Includes Items 12-19

$0.99

$

In Stock, Qty 17

0

Echo 14580005162

MUFFLER ASSY
(Superseded to Discontinued)

$

$

Not available
