HC-1001 - Echo Hedge Trimmer (SN: 017001 - 024000) Engine, Crankcase, Fan Housing, Cover Parts Diagram

Hedge Trimmer

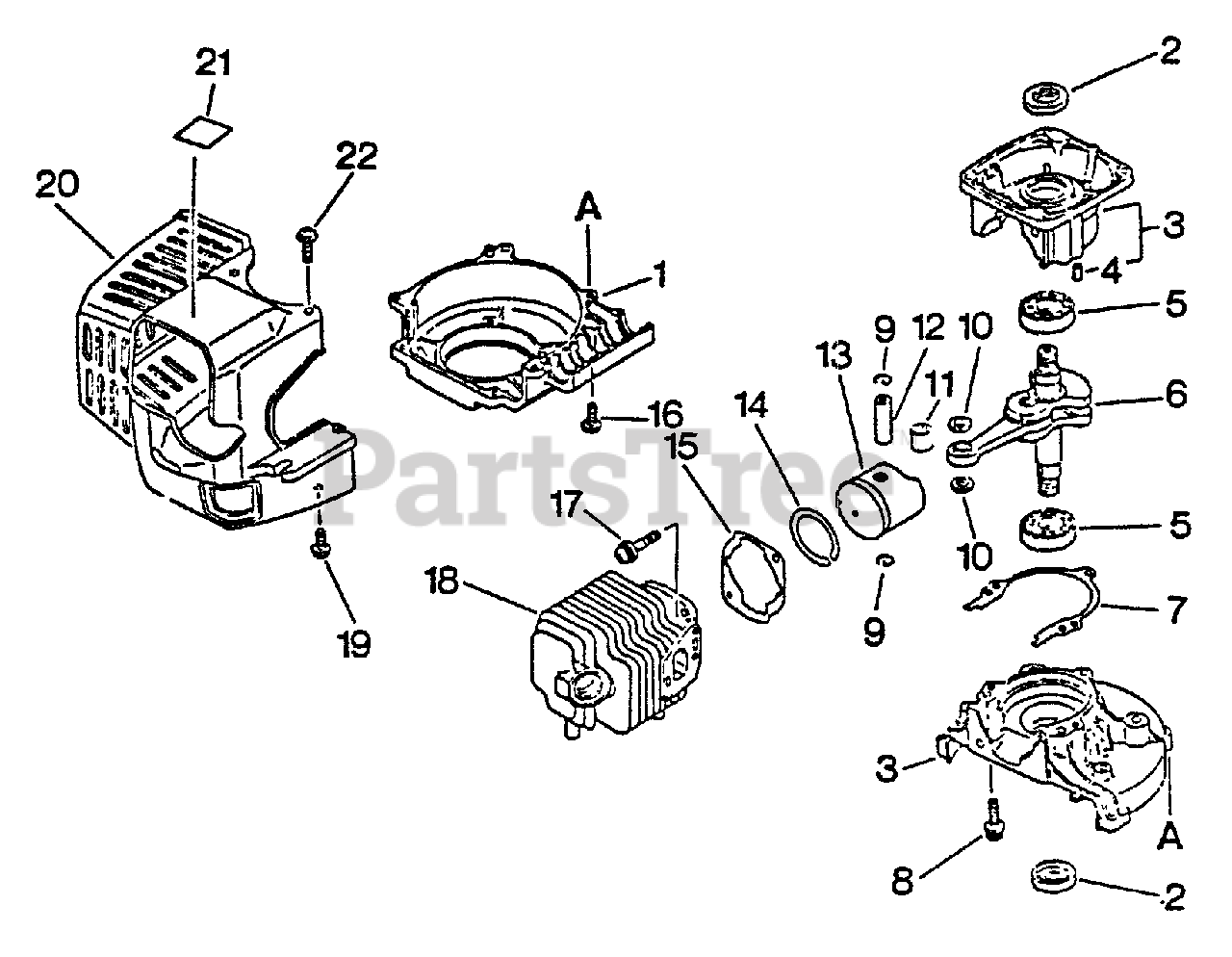

Engine, Crankcase, Fan Housing, Cover Parts Diagram

  • Title
1

Echo 10151104560

CASE, FAN

$47.99

$

Usually ships in 2-4 days

0

2

Echo 10021242031

SEAL, OIL

$6.49

$

In Stock, Qty 6

0

3

Echo 10020042030

CRANKCASE KIT
(Superseded to 10020451030)

Note: Includes ITEM 4

$131.99

$

Usually ships in 2-4 days

0

4

Echo V622000020

PIN - LOCATING

$0.99

$

In Stock, Qty 7

0

5

Echo 9403536201

BEARING, BALL - 6201

$7.99

$

In Stock, Qty 9

0

6

Echo 10010044330

CRANKSHAFT ASSY
(Superseded to 10010044331)

Note: Includes ITEM 9

$283.99

$

Usually ships in 2-4 days

0

7

------------------

GASKET, CRANKCASE

Note: Use Kit 88900044331

$

$

Not available

8

Echo 90024205028

SCREW - 5X28

$0.99

$

In Stock, Qty 7

0

9

Echo 10001504630

RING, RETAINING

$0.99

$

In Stock, Qty 7

0

10

Echo 10001411520

SPACER, PISTON

$3.49

$

In Stock, only 3 left!

0

11

Echo 10001211520

BEARING, NEEDLE
(Superseded to 10001251230)

$9.99

$

In Stock, only 2 left!

0

12

Echo 10001311520

PIN, PISTON

$7.49

$

In Stock, only 1 left!

0

13

Echo 10001044330

PISTON
(Superseded to 10000044330)

$65.99

$

Usually ships in 2-4 days

0

14

Echo 10001105330

RING, PISTON

$8.49

$

In Stock, only 2 left!

0

15

Echo 10101044331

GASKET, CYLINDER
(Superseded to 10101044332)

Note: Use Kit 88900044331

$3.99

$

In Stock, only 4 left!

0

16

Echo 90024204014

SCREW - 4X14

$0.99

$

In Stock, Qty 15

0

17

Echo 90016205022

SCREW - 5X22

$0.99

$

In Stock, Qty 20+

0

18

Echo 10101145230

CYLINDER

$127.99

$

Usually ships in 2-4 days

0

19

Echo 90023804016

SCREW - 4X16
(Superseded to Discontinued)

$

$

Not available

20

Echo 10151404560

COVER, ENGINE - ORANGE
(Superseded to 10151406460)

$22.99

$

Usually ships in 2-4 days

0

20

Echo 10151406460

COVER, ENGINE - GRAY
(Superseded to 10151406461)

$22.99

$

Usually ships in 2-4 days

0

21

Echo 89011506460

LABEL - MODEL
(Superseded to Discontinued)

$

$

Not available

22

Echo 90023804012

SCREW - 4X12

$0.99

$

In Stock, Qty 6

0

Echo 88900044331

GASKET KIT
(Superseded to 88900044332)

$37.99

$

Usually ships in 2-4 days

0
